PTC33 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 33POS 2.54MM

Part	Mounting Type	Termination	Number of Positions [custom]	Pitch - Mating	Pitch - Mating	Number of Rows	Insulation Material	Fastening Type	Current Rating (Amps)	Contact Finish - Post	Insulation Color	Overall Contact Length	Overall Contact Length	Style	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Shrouding	Number of Positions Loaded	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Connector Type	Contact Type	Contact Length - Post [custom]	Contact Length - Post [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Insulation Height	Insulation Height	Contact Material	Number of Positions	Number of Rows [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post	Contact Length - Post	Overall Contact Length	Insulation Height [z]	Insulation Height [z]
Sullins Connector Solutions PTC33SAFN	Through Hole	Solder	33	0.1 "	2.54 mm	1	Polyester Thermoplastic	Push-Pull	3 A	Tin	Black	0.95 in	24.13 mm	Board to Board Cable	2.54 µm	100 µin	Unshrouded	All	UL94 V-0	0.23 in	5.84 mm	Header	Male Pin	15.75 mm	0.62 "	100 çin	2.54 çm	Square	0.1 in	2.54 mm	Copper Alloy
Sullins Connector Solutions PTC33DAEN	Through Hole	Solder		0.1 "	2.54 mm		Polyester Thermoplastic	Push-Pull	3 A	Tin	Black	0.85 in	21.59 mm	Board to Board Cable	2.54 µm	100 µin	Unshrouded	All	UL94 V-0	0.23 in	5.84 mm	Header	Male Pin			100 çin	2.54 çm	Square	0.1 in	2.54 mm	Copper Alloy	66	2	0.1 in	2.54 mm	0.52 in	13.21 mm
Sullins Connector Solutions PTC33SFCN	Through Hole	Solder	33	0.1 "	2.54 mm	1	Polyester Thermoplastic	Push-Pull	3 A	Tin	Black		18.75 mm	Board to Board Cable	2.54 µm	100 µin	Unshrouded	All	UL94 V-0	0.318 in	8.08 mm	Header	Male Pin			100 çin	2.54 çm	Square	0.1 in	2.54 mm	Copper Alloy					0.32 in	8.13 mm	0.738 in

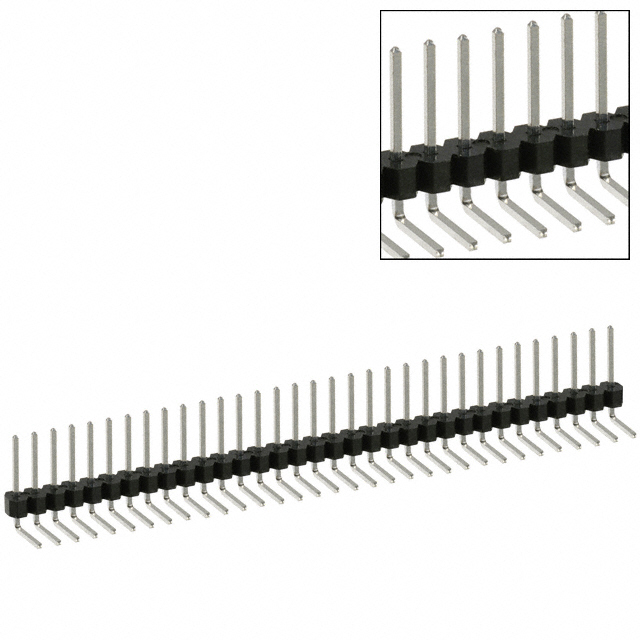

Sullins Connector Solutions PTC33SGBN	Right Angle Through Hole	Solder	33	0.1 "	2.54 mm	1	Polyester Thermoplastic	Push-Pull	3 A	Tin	Black			Board to Board Cable	2.54 µm	100 µin	Unshrouded	All	UL94 V-0	0.318 in	8.08 mm	Header	Male Pin			100 çin	2.54 çm	Square	0.14 in	3.56 mm	Copper Alloy					0.22 in	5.58 mm
Sullins Connector Solutions PTC33DAHN	Through Hole	Solder		0.1 "	2.54 mm		Polyester Thermoplastic	Push-Pull	3 A	Tin	Black	1.15 in	29.21 mm	Board to Board Cable	2.54 µm	100 µin	Unshrouded	All	UL94 V-0	0.23 in	5.84 mm	Header	Male Pin			100 çin	2.54 çm	Square	0.1 in	2.54 mm	Copper Alloy	66	2	0.1 in	2.54 mm	0.82 in	20.83 mm
Sullins Connector Solutions PTC33SBAN	Right Angle Through Hole	Solder	33	0.1 "	2.54 mm	1	Polyester Thermoplastic	Push-Pull	3 A	Tin	Black			Board to Board Cable	2.54 µm	100 µin	Unshrouded	All	UL94 V-0	0.23 in	5.84 mm	Header	Male Pin			100 çin	2.54 çm	Square	0.14 in	3.56 mm	Copper Alloy					0.12 in	3.05 mm
Sullins Connector Solutions PTC33DAFN	Through Hole	Solder		0.1 "	2.54 mm		Polyester Thermoplastic	Push-Pull	3 A	Tin	Black	0.95 in	24.13 mm	Board to Board Cable	2.54 µm	100 µin	Unshrouded	All	UL94 V-0	0.23 in	5.84 mm	Header	Male Pin	15.75 mm	0.62 "	100 çin	2.54 çm	Square	0.1 in	2.54 mm	Copper Alloy	66	2	0.1 in	2.54 mm
Sullins Connector Solutions PTC33SABN	Through Hole	Solder	33	0.1 "	2.54 mm	1	Polyester Thermoplastic	Push-Pull	3 A	Tin	Black	0.56 in	14.22 mm	Board to Board Cable	2.54 µm	100 µin	Unshrouded	All	UL94 V-0	0.23 in	5.84 mm	Header	Male Pin			100 çin	2.54 çm	Square	0.1 in	2.54 mm	Copper Alloy					0.23 "	5.84 mm
Sullins Connector Solutions PTC33DBBN	Right Angle Through Hole	Solder		0.1 "	2.54 mm		Polyester Thermoplastic	Push-Pull	3 A	Tin	Black			Board to Board Cable	2.54 µm	100 µin	Unshrouded	All	UL94 V-0	0.23 in	5.84 mm	Header	Male Pin			100 çin	2.54 çm	Square			Copper Alloy	66	2	0.1 in	2.54 mm	0.23 "	5.84 mm		6.1 mm	0.24 in
Sullins Connector Solutions PTC33SBCN	Right Angle Through Hole	Solder	33	0.1 "	2.54 mm	1	Polyester Thermoplastic	Push-Pull	3 A	Tin	Black			Board to Board Cable	2.54 µm	100 µin	Unshrouded	All	UL94 V-0	0.23 in	5.84 mm	Header	Male Pin			100 çin	2.54 çm	Square	0.14 in	3.56 mm	Copper Alloy					0.32 in	8.13 mm
