4477-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

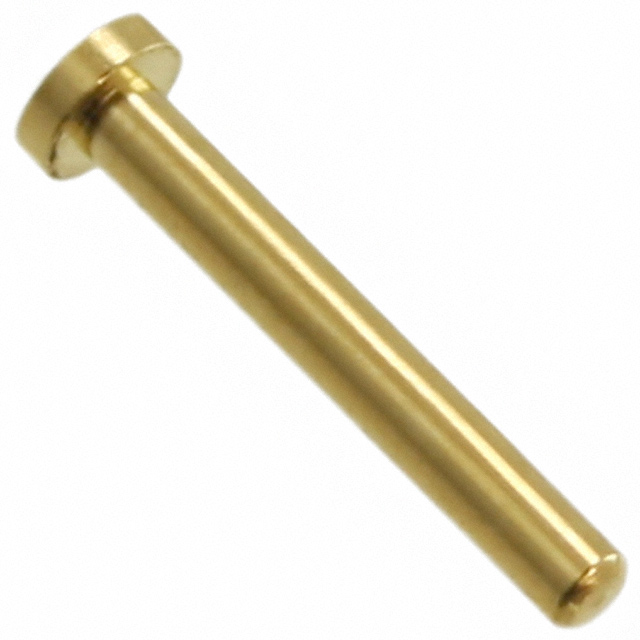

CONN PC PIN CIRC 0.030DIA GOLD
| Part | Mounting Type | Contact Finish | Contact Material | Termination | Flange Diameter [diameter] | Flange Diameter [diameter] | Terminal Style | Contact Finish Thickness | Contact Finish Thickness | Length - Above Flange | Length - Above Flange [x] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Insulation | Terminal Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Through Hole | Gold | Brass Alloy | Solder | 1.4 mm | 0.055 in | Nail Head Single End | 0.25 Ám | 10 Áin | 5.46 mm | 0.215 in | 0.034 in | 0.86 mm | 0.03 in | 0.76 mm | Non-Insulated | PC Pin |
