57040 Series

Catalog

PELTIER CP2,71,10,L1,W4.5

Part	Voltage - Max [Max]	Resistance	Features	Number of Stages	Qmax @ Th	Height [z]	Current - Max [Max]	Operating Temperature	Size / Dimension [x]	Size / Dimension [y]	Delta Tmax @ Th

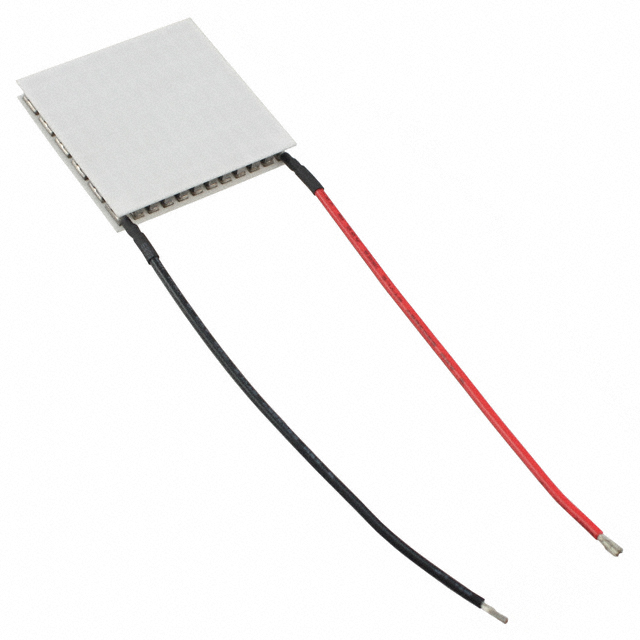

Laird Thermal Systems, Inc. 57040-500	7.9 V	810 mOhms	Lead Wires Non-Sealed	1	44.2 W	5.59 mm	9 A	80 °C	43.94 mm	43.94 mm	67 °C
