BMR454 Series

Catalog

DC DC CONVERTER 12V 240W

Part	Features	Voltage - Input (Min) [Min]	Number of Outputs	Power (Watts)	Package / Case	Control Features	Supplier Device Package	Voltage - Input (Max) [Max]	Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Applications	Current - Output (Max) [Max]	Efficiency	Standard Number	Mounting Type	Voltage - Output 1	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation
Flex Power Modules BMR4540105/005	Adjustable Output Baseplate PMBus™ Remote On/Off Remote Sense	36 V	1	240 Watts	Eighth Brick	Active Low Enable	Eighth Brick	75 V	Isolated Module Digital	0.52 in	22.7 mm	58.4 mm	0.89 in	2.3 in	13.2 mm	ITE (Commercial)	20 A	95.1 %	62368-1	Through Hole	12 V	CB CSA IEC TUV UL	-40 °C	125 °C	1.5 kV

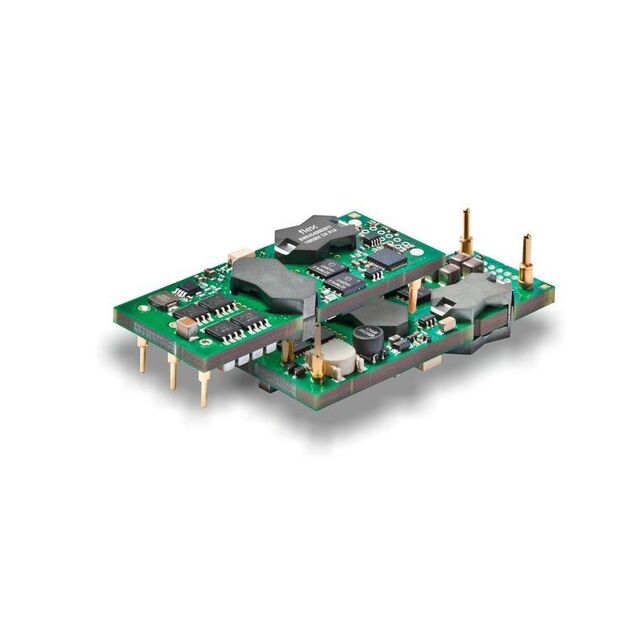

Flex Power Modules BMR4540000/001	Adjustable Output PMBus™ Remote On/Off Remote Sense	40 V	1	240 Watts	Eighth Brick	Active Low Enable	Eighth Brick	75 V	Isolated Module Digital	0.4 "	22.7 mm	58.4 mm	0.89 in	2.3 in	10.2 mm	ITE (Commercial)	20 A	95.7 %	62368-1	Through Hole	12 V	CB CSA IEC TUV UL	-40 °C	125 °C	1.5 kV
Flex Power Modules BMR4540004/005	Adjustable Output PMBus™ Remote On/Off Remote Sense	36 V	1	240 Watts	Eighth Brick	Active Low Enable	Eighth Brick	75 V	Isolated Module Digital	0.4 "	22.7 mm	58.4 mm	0.89 in	2.3 in	10.2 mm	ITE (Commercial)	20 A	95.1 %	62368-1	Through Hole	12 V	CB CSA IEC TUV UL	-40 °C	125 °C	1.5 kV
Flex Power Modules BMR4540005/005	Adjustable Output PMBus™ Remote On/Off Remote Sense	36 V	1	240 Watts	Eighth Brick	Active Low Enable	Eighth Brick	75 V	Isolated Module Digital	0.4 "	22.7 mm	58.4 mm	0.89 in	2.3 in	10.2 mm	ITE (Commercial)	20 A	95.1 %	62368-1	Through Hole	12 V	CB CSA IEC TUV UL	-40 °C	125 °C	1.5 kV
Flex Power Modules BMR4540000/002	Adjustable Output PMBus™ Remote On/Off Remote Sense	36 V	1	180 W	Eighth Brick	Active Low Enable	Eighth Brick	75 V	Isolated Module Digital	0.4 "	22.7 mm	58.4 mm	0.89 in	2.3 in	10.2 mm	ITE (Commercial)	20 A	95 %	62368-1	Through Hole	9 V	CB CSA IEC TUV UL	-40 °C	125 °C	1.5 kV
Flex Power Modules BMR4540104/005	Adjustable Output Baseplate PMBus™ Remote On/Off Remote Sense	36 V	1	240 Watts	Eighth Brick	Active Low Enable	Eighth Brick	75 V	Isolated Module Digital	0.52 in	22.7 mm	58.4 mm	0.89 in	2.3 in	13.2 mm	ITE (Commercial)	20 A	95.1 %	62368-1	Through Hole	12 V	CB CSA IEC TUV UL	-40 °C	125 °C	1.5 kV
Flex Power Modules BMR4540002/004	Adjustable Output PMBus™ Remote On/Off Remote Sense	36 V	1	190 W	Eighth Brick	Active Low Enable	Eighth Brick	75 V	Isolated Module Digital	0.4 "	22.7 mm	58.4 mm	0.89 in	2.3 in	10.2 mm	ITE (Commercial)	38 A	94.5 %	62368-1	Through Hole	5 V	CB CSA IEC TUV UL	-40 °C	125 °C	1.5 kV
Flex Power Modules BMR4540002/003	Adjustable Output PMBus™ Remote On/Off Remote Sense	36 V	1	132 W	Eighth Brick	Active Low Enable	Eighth Brick	75 V	Isolated Module Digital	0.4 "	22.7 mm	58.4 mm	0.89 in	2.3 in	10.2 mm	ITE (Commercial)	40 A	93.2 %	62368-1	Through Hole	3.3 V	CB CSA IEC TUV UL	-40 °C	125 °C	1.5 kV
