ELR Series

Catalog

TERMINAL BLOCK INTERFACE MODULES ELR H3-IES-SC- 24DC/ 500AC-0,6

Part	Type	Voltage - Load [Min]	Voltage - Load [Max]	Current - Output	Mounting Type	Voltage - Supply	Wattage - Load	Operating Temperature [Min]	Operating Temperature [Max]	Control / Drive Type	Motor Type	Weight [custom]	Weight [custom]	Output Type	Package / Case	Circuit	Termination Style	Load Current	Voltage - Input
Phoenix Contact 2900566	Module	42 V	550 V	600 mA	DIN Rail	24 V	2.5 W	-25 °C	70 °C	Motor Starter Reversible	AC Motor

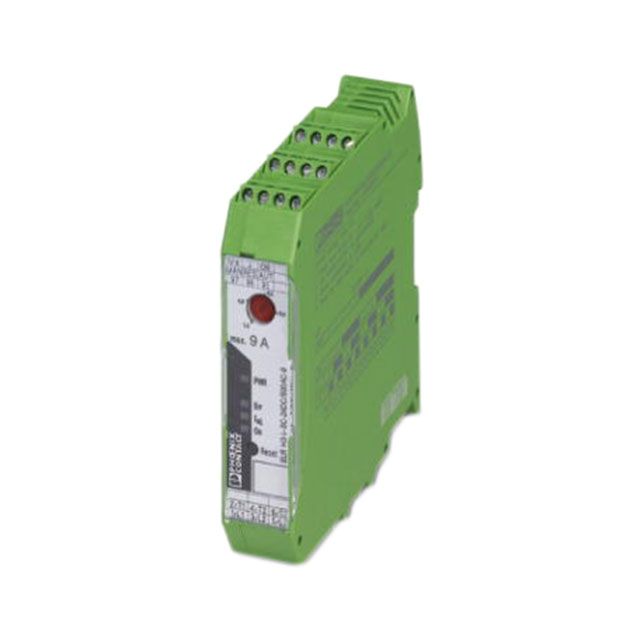

Phoenix Contact 2900542	Module	42 V	550 V	600 mA	DIN Rail	24 V	2.5 W	-25 °C	70 °C	Motor Starter Reversible	AC Motor	0.662 lb	300.28 g
Phoenix Contact 2900570	Module	42 V	550 V	9 A	DIN Rail	230 VAC	7 W	-25 °C	70 °C	Motor Starter Reversible	AC Motor	0.662 lb	300.28 g

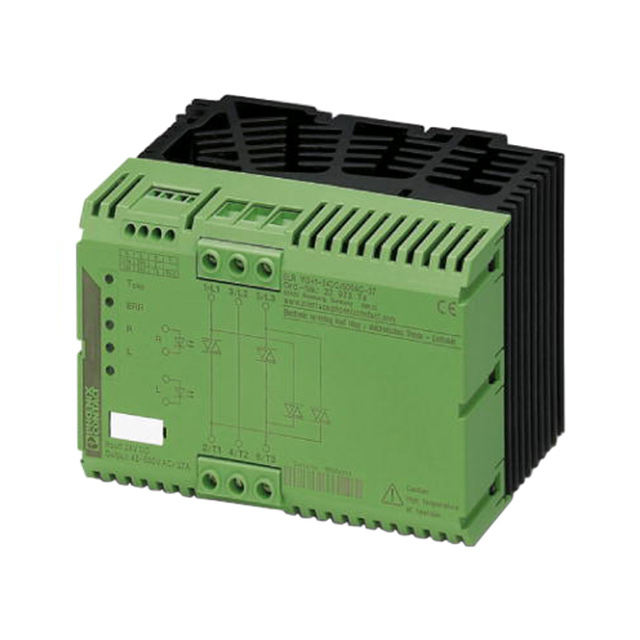

Phoenix Contact 2297374		48 V	575 V		DIN Rail									AC Zero Cross	SSR with Integrated Heat Sink	3PST-NO (3 Form A)	Screw Terminal	37 A	24 VDC

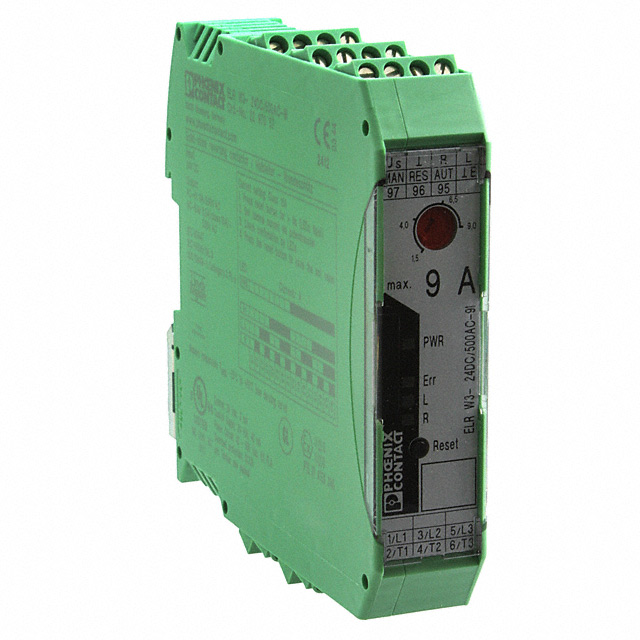

Phoenix Contact 2297057		48 V	550 V		DIN Rail									AC	Module	3PST-NO (3 Form A)	Screw Terminal	9 A	24 VDC
