77248 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

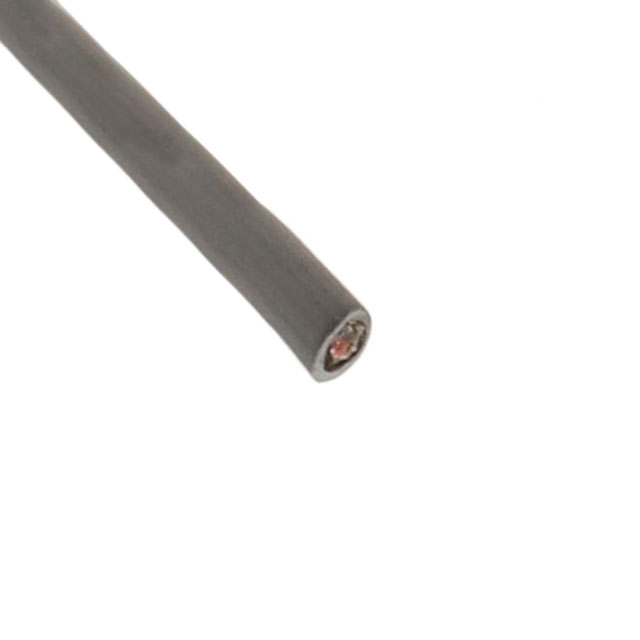

CABLE 3COND 26AWG SHLD 100=100'
| Part | Shield Coverage | Shield Material | Number of Conductors | Ratings | Conductor Strand [x] | Conductor Strand [x] | Conductor Insulation | Conductor Material | Operating Temperature [Min] | Operating Temperature [Max] | Wire Gauge | Jacket Color | Features | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Length | Length | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 70 % 100 % | Aluminum Copper Tinned | 3 | ISO 10993 UL Style 21915 | 34 AWG | 7 | Polyphenylene Ether Modified (mPPE) | Copper Tinned | -50 °C | 105 ░C | 26 AWG | Slate | Biological Compatibility Drain Wire Rip Cord | 600 V | 0.813 mm | 0.032 in | Polyphenylene Ether Modified (mPPE) | Multi-Conductor | 4.57 mm | 0.18 in | Braid Foil | ||||
ALPHA WIRE | 70 % 100 % | Aluminum Copper Tinned | 3 | ISO 10993 UL Style 21915 | 34 AWG | 7 | Polyphenylene Ether Modified (mPPE) | Copper Tinned | -50 °C | 105 ░C | 26 AWG | Slate | Biological Compatibility Drain Wire Rip Cord | 600 V | 0.813 mm | 0.032 in | Polyphenylene Ether Modified (mPPE) | Multi-Conductor | 4.57 mm | 0.18 in | Braid Foil | 304.8 m | 1000 ft | ||
 ALPHA WIRE | 70 % 100 % | Aluminum Copper Tinned | 3 | ISO 10993 UL Style 21915 | 34 AWG | 7 | Polyphenylene Ether Modified (mPPE) | Copper Tinned | -50 °C | 105 ░C | 26 AWG | Slate | Biological Compatibility Drain Wire Rip Cord | 600 V | 0.813 mm | 0.032 in | Polyphenylene Ether Modified (mPPE) | Multi-Conductor | 4.57 mm | 0.18 in | Braid Foil | 100 ft | 30.5 m |
