AWH 40G Series

Catalog

CONN HEADER 40POS IDC GOLD

Part	Number of Positions	Mounting Type	Row Spacing	Row Spacing	Color	Contact Type	Features	Wire Type	Connector Type	Number of Rows [custom]	Pitch	Pitch	Contact Finish	Fastening Type	Cable Termination	Contact Finish - Mating	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Contact Material	Shrouding	Current Rating (Amps)	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Style	Insulation Color	Termination	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Contact Shape	Insulation Material	Insulation Height	Insulation Height	Contact Finish Thickness - Mating

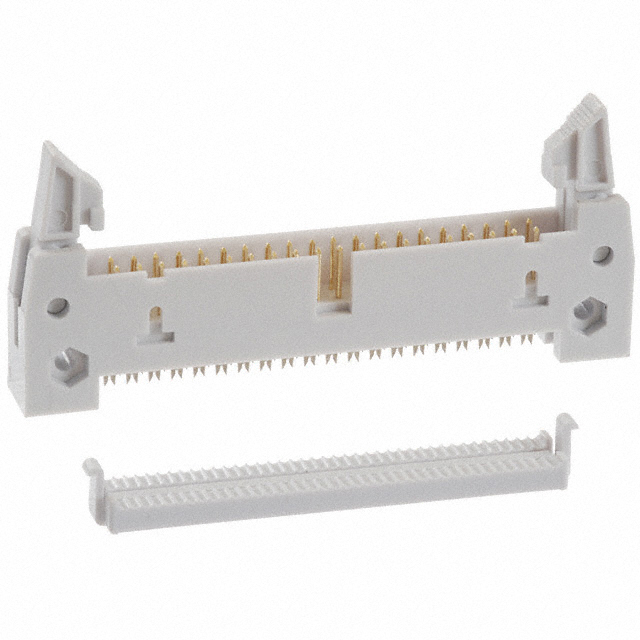

Assmann WSW Components AWH40G-0222-IDC-R	40	Free Hanging (In-Line)	2.54 mm	0.1 "	Gray	Male Pin	Feed Through	Ribbon Cable	Header	2	0.1 "	2.54 mm	Gold	Latch Lock/Eject Hooks	IDC

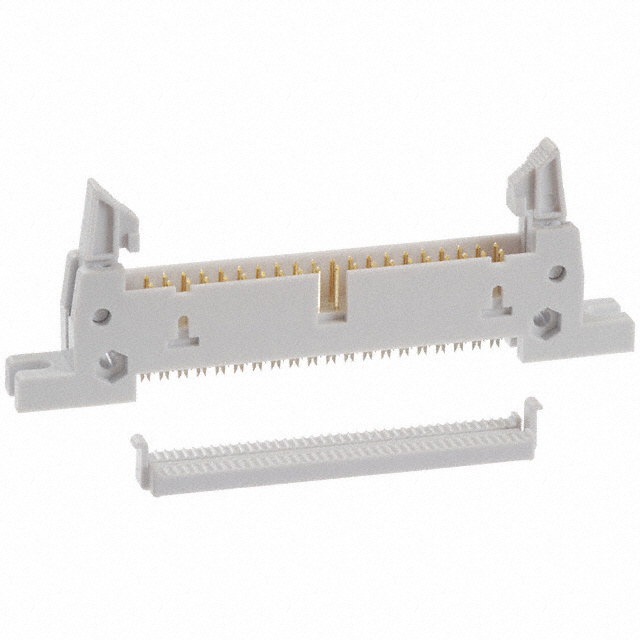

Assmann WSW Components AWH 40G-E222-IDC	40	Panel Mount	2.54 mm	0.1 "	Gray	Male Pin	Feed Through	Ribbon Cable	Header	2	0.1 "	2.54 mm	Gold	Latch Lock/Eject Hooks	IDC
Assmann WSW Components AWH 40G-E202-IDC	40	Panel Mount	2.54 mm	0.1 "	Gray	Male Pin	Feed Through	Ribbon Cable	Header	2	0.1 "	2.54 mm	Gold		IDC

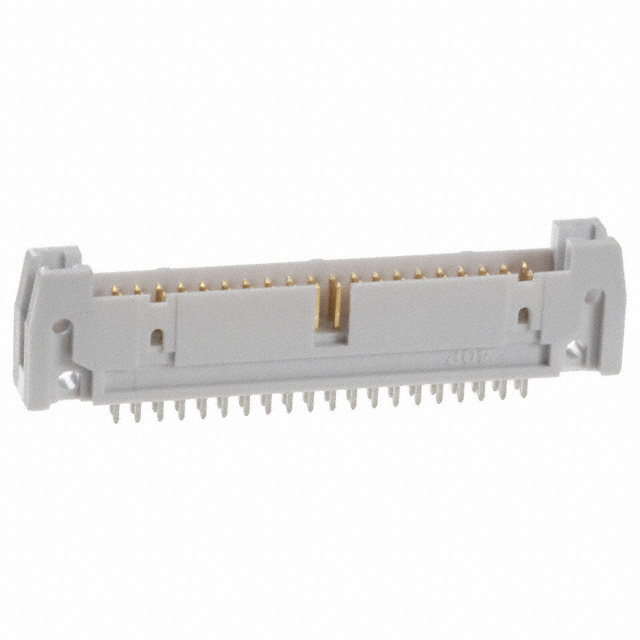

Assmann WSW Components AWH40G-0202-T-R	40	Through Hole				Male Pin	Keying Slot		Header	2				Push-Pull		Gold	All	-40 C	105 ░C	0.13 "	3.3 mm	Brass	Shrouded - 4 Wall	3 A	UL94 V-0	0.1 in	2.54 mm	Board to Cable/Wire	Gray	Solder	0.1 "	2.54 mm	Tin	Square	Polybutylene Terephthalate (PBT) Glass Filled	17 mm	0.669 in	Flash

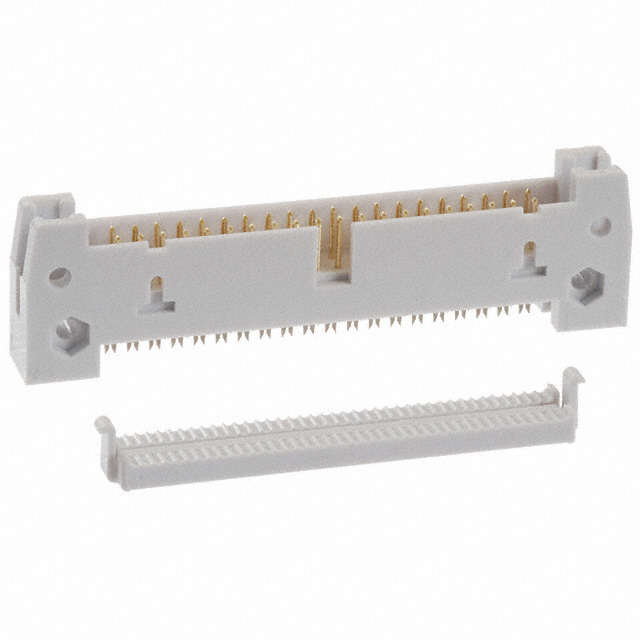

Assmann WSW Components AWH40G-0202-IDC-R	40	Free Hanging (In-Line)	2.54 mm	0.1 "	Gray	Male Pin	Feed Through	Ribbon Cable	Header	2	0.1 "	2.54 mm	Gold		IDC
Assmann WSW Components AWH 40G-0232-IDC	40	Free Hanging (In-Line)	2.54 mm	0.1 "	Gray	Male Pin	Feed Through	Ribbon Cable	Header	2	0.1 "	2.54 mm	Gold	Latch Lock/Eject Hooks Long	IDC
