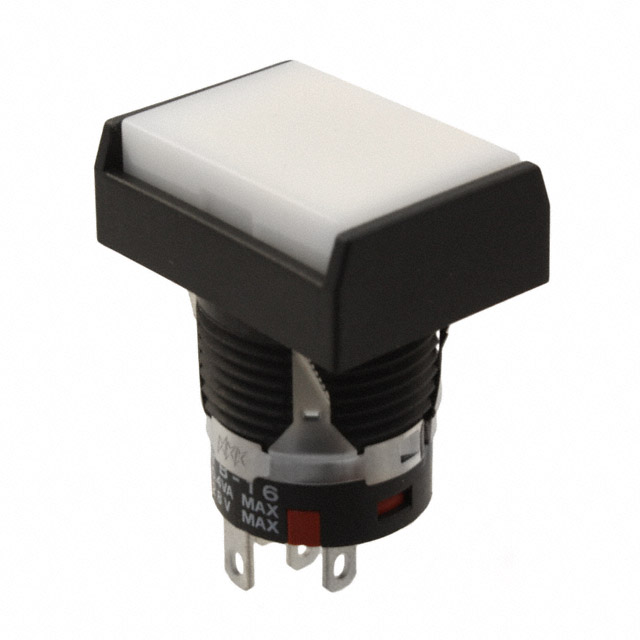

YB16NK Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH PUSH SPDT 0.4VA 28V
| Part | Mechanical Life | Electrical Life | Circuit | Mounting Type | Color - Actuator/Cap | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Type | Voltage Rating - AC | Termination Style | Switch Function | Actuator Type | Actuator Marking | Panel Cutout Dimensions [diameter] | Voltage Rating - DC | Features | Illumination Voltage (Nominal) | Illumination Type, Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 200000 Cycles | 100000 Cycles | SPDT | Panel Mount Snap-In | White | 0.4 VA | -25 °C | 70 °C | Standard | 28 V | Solder Quick Connect - 0.110" (2.8mm) | On-On | Button Rectangular | No Marking | 16 mm | 28 V | Tactile Feedback | ||
 NKK Switches | 200000 Cycles | 100000 Cycles | SPDT | Panel Mount Snap-In | White | 3 A | -25 °C | 70 °C | Standard | 125 V | Solder Lug | On-On | Button Rectangular | No Marking | 16 mm | 30 V | Tactile Feedback | ||
 NKK Switches | 200000 Cycles | 100000 Cycles | SPDT | Panel Mount Snap-In | Red | 3 A | -25 °C | 70 °C | Standard | 125 V | Solder Quick Connect - 0.110" (2.8mm) | On-On | Button Rectangular | No Marking | 16 mm | 30 V | Tactile Feedback | ||
NKK Switches | 200000 Cycles | 100000 Cycles | SPDT | Panel Mount Snap-In | Green | 3 A | -25 °C | 70 °C | Standard | 125 V | Solder Quick Connect - 0.110" (2.8mm) | On-On | Button Rectangular | No Marking | 16 mm | 30 V | Tactile Feedback | ||
NKK Switches | 200000 Cycles | 100000 Cycles | SPDT | Panel Mount Snap-In | 3 A | -25 °C | 70 °C | Standard | 125 V | Solder Quick Connect - 0.110" (2.8mm) | On-On | Plunger for Cap | No Marking | 16 mm | 30 V | Tactile Feedback | |||
NKK Switches | 200000 Cycles | 100000 Cycles | SPDT | Panel Mount Snap-In | Clear | 3 A | -25 °C | 50 °C | Illuminated Standard | 125 V | Solder Quick Connect - 0.110" (2.8mm) | On-On | Button Rectangular | No Marking | 16 mm | 30 V | Tactile Feedback | 3.3 VDC | Green LED |
NKK Switches | 200000 Cycles | 100000 Cycles | SPDT | Panel Mount Snap-In | Clear | 3 A | -25 °C | 50 °C | Illuminated Standard | 125 V | Solder Quick Connect - 0.110" (2.8mm) | On-On | Button Rectangular | No Marking | 16 mm | 30 V | Tactile Feedback | 12 VDC | Green LED |
NKK Switches | 200000 Cycles | 100000 Cycles | SPDT | Panel Mount Snap-In | Clear | 3 A | -25 °C | 50 °C | Illuminated Standard | 125 V | Solder Quick Connect - 0.110" (2.8mm) | On-On | Button Rectangular | No Marking | 16 mm | 30 V | Tactile Feedback | 1.9 VDC | LED Red |
