PW180KB4800 Series

Catalog

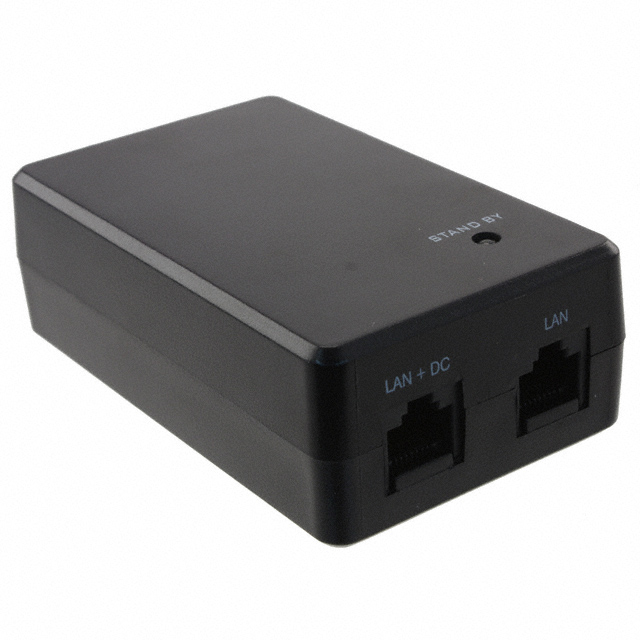

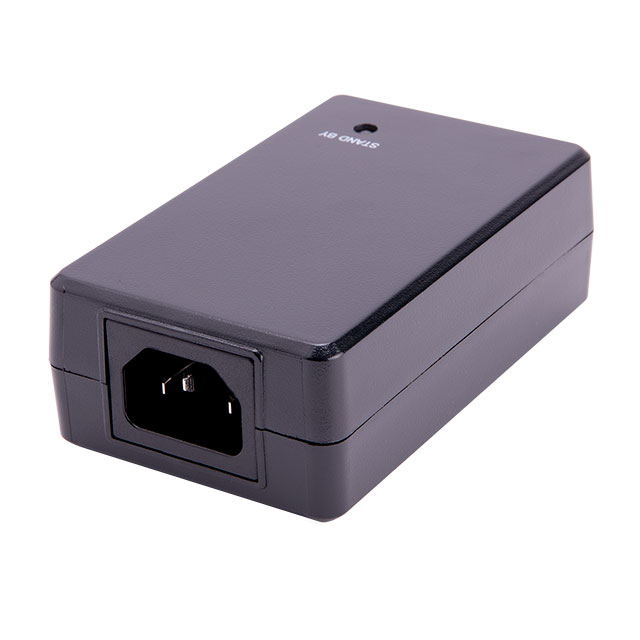

POE INJECTOR 15.4W 48V DESKTOP

Part	Output Connector	Input Connector	Note	Weight [custom]	Weight [custom]	Voltage - Input [Min]	Voltage - Input [Max]	Compliance	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Output	Type	Power (Watts) - Per Port	Approval Agency	Data Rate [Min]	Data Rate [Max]	Current - Output	Features	Number of Ports	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]
SL POWER / Advanced Energy PW180KB4800N01	RJ45 (Data Power)	IEC 320-C8	AC Power Cord Sold Separately	0.375 lb	170.1 g	100 VAC	250 VAC	IEEE802.3af	40 °C	0 °C	Desktop	48 V	Midspan Injector	15.4 W	CE cULus EN IEC	10 Mbps	100 Mbps	350 mA	OCP SCP	1	1.35 in	3.98 in	101 mm	2.4 in	61.5 mm	34.2 mm
SL POWER / Advanced Energy PW180KB4800F01	RJ45 (Data Power)	IEC 320-C14	AC Power Cord Sold Separately	0.375 lb	170.1 g	100 VAC	250 VAC	IEEE802.3af	40 °C	0 °C	Desktop	48 V	Midspan Injector	15.4 W	CE cULus EN IEC	10 Mbps	100 Mbps	350 mA	OCP SCP	1	1.35 in	3.98 in	101 mm	2.4 in	61.5 mm	34.2 mm
