PX2CN2 Series

Catalog

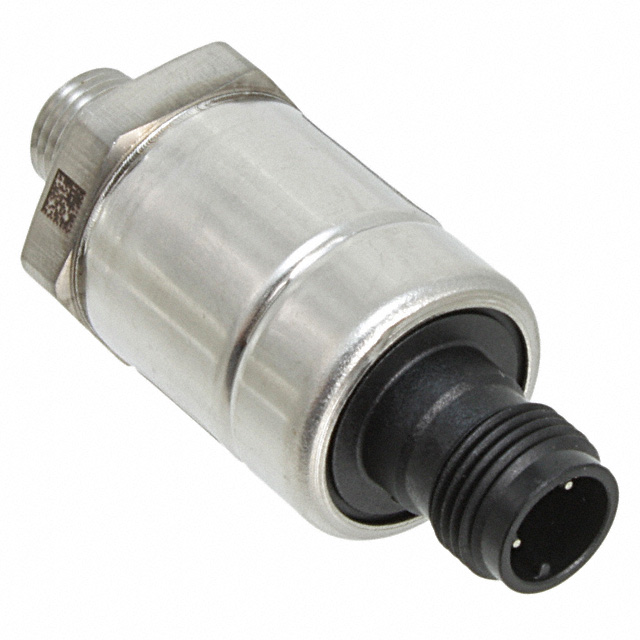

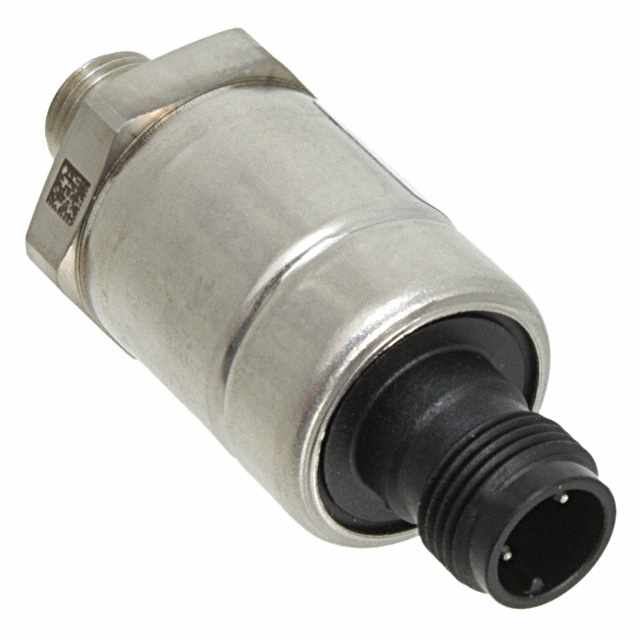

PRESSURE TRANSDUCER 100PSI

Part	Output Type	Package / Case	Operating Pressure	Operating Pressure	Output [Min]	Output [Max]	Maximum Pressure [Max]	Maximum Pressure [Max]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Port Style	Termination Style	Accuracy	Voltage - Supply [Min]	Voltage - Supply [Max]	Port Size	Port Size	Port Size	Applications	Pressure Type
Honeywell Sensing and Productivity Solutions PX2CN2XX100PAAAX	Analog Voltage	Cylinder	689.48 kPa	100 PSI	0.5 V	4.5 V	450 PSI	3102.64 kPa	Temperature Compensated	125 °C	-40 °C	Threaded	Connector	0.25 %	4.75 V	5.25 V	0.125 "	3.18 mm	Male	Industrial Automation
Honeywell Sensing and Productivity Solutions PX2CN2XX250PSAAX	Analog Voltage	Cylinder	1723.69 kPa	250 PSI	0.5 V	4.5 V	750 PSI	5171.07 kPa	Temperature Compensated	125 °C	-40 °C	Threaded	Connector	0.25 %	8 V	30 VDC	0.125 "	3.18 mm	Male	Industrial Automation	Sealed Gauge
Honeywell Sensing and Productivity Solutions PX2CN2XX500PSAAX	Analog Voltage	Cylinder	3447.38 kPa	500 PSI	0.5 V	4.5 V	1000 PSI	6894.76 kPa	Temperature Compensated	125 °C	-40 °C	Threaded	Connector	0.25 %	4.75 V	5.25 V	0.125 "	3.18 mm	Male	Industrial Automation	Sealed Gauge
