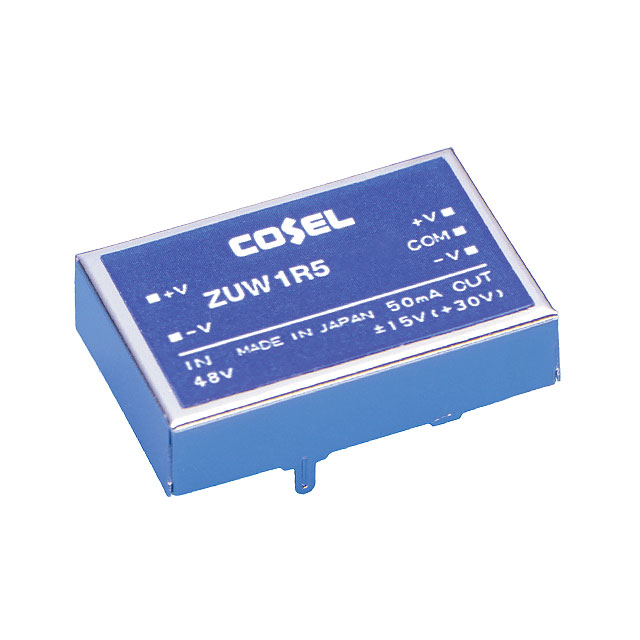

ZUW1R54815 Series
Manufacturer: Cosel USA, Inc.
Beta
⌘K
DC DC CONVERTER +/-15V 1.5W
| Part | Voltage - Output 2 | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Input (Max) [Max] | Voltage - Output 1 | Efficiency | Voltage - Isolation | Number of Outputs | Mounting Type | Power (Watts) | Package / Case | Applications | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Current - Output (Max) | Type | Voltage - Input (Min) [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cosel USA, Inc. | -15 V | -20 °C | 71 °C | 72 V | 15 V | 71 % | 500 V | 2 | Through Hole | 1.5 W | 5-DIP Module | ITE (Commercial) | 27.5 mm | 18 mm | 1.08 in | 7 mm | 0.28 " | 0.71 in | 50 mA | Isolated Module | 36 V |
