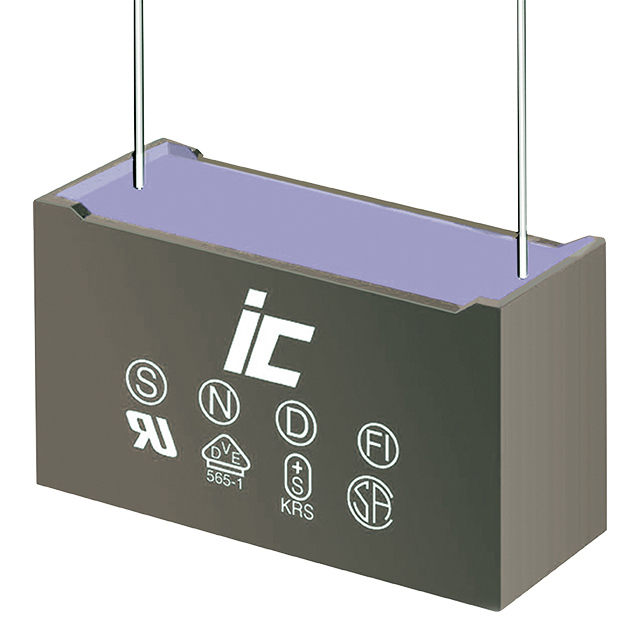

MPXB Series

Catalog

CAP FILM 1UF 10% 305VAC RADIAL

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Ratings	Operating Temperature [Min]	Operating Temperature [Max]	Lead Spacing	Lead Spacing	Capacitance	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Applications	Tolerance	Voltage Rating - AC	Package / Case	Termination	Dielectric Material	Features	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max)	Height - Seated (Max) [z]
Cornell Dubilier Knowles MPXB105K305G	23.5 mm	0.925 "	X2	-40 C	110 °C	0.886 in	22.5 mm	1 µF	Through Hole	1.024 in	13 mm	0.512 "	26 mm	EMI RFI Suppression	10 %	305 V	Radial	PC Pins	Polypropylene (PP) Metallized	85C/85% Humidity Long Life Low ESL Low ESR THB
Cornell Dubilier Knowles MPXB224K305E			X2	-40 C	110 °C	0.591 in	15 mm	0.22 µF	Through Hole	0.709 in	10 mm	0.394 in	18 mm	EMI RFI Suppression	10 %	305 V	Radial	PC Pins	Polypropylene (PP) Metallized	85C/85% Humidity Long Life Low ESL Low ESR THB	0.65 in	16.5 mm
Cornell Dubilier Knowles MPXB334K305E	19.5 mm	0.768 in	X2	-40 C	110 °C	0.591 in	15 mm	0.33 µF	Through Hole	0.709 in	11 mm	0.433 in	18 mm	EMI RFI Suppression	10 %	305 V	Radial	PC Pins	Polypropylene (PP) Metallized	85C/85% Humidity Long Life Low ESL Low ESR THB
Cornell Dubilier Knowles MPXB205K305H			X2	-40 C	110 °C	1.083 in	27.5 mm	2 µF	Through Hole	1.26 in	18 mm	0.709 in	32 mm	EMI RFI Suppression	10 %	305 V	Radial	PC Pins	Polypropylene (PP) Metallized	85C/85% Humidity Long Life Low ESL Low ESR THB	1.319 in		33.5 mm
Cornell Dubilier Knowles MPXB474K305G			X2	-40 C	110 °C	0.886 in	22.5 mm	0.47 µF	Through Hole	1.024 in	11 mm	0.433 in	26 mm	EMI RFI Suppression	10 %	305 V	Radial	PC Pins	Polypropylene (PP) Metallized	85C/85% Humidity Long Life Low ESL Low ESR THB	0.807 in			20.5 mm
Cornell Dubilier Knowles MPXB104K305E	14 mm	0.551 in	X2	-40 C	110 °C	0.591 in	15 mm	100000 pF	Through Hole	0.709 in	7.5 mm	0.295 in	18 mm	EMI RFI Suppression	10 %	305 V	Radial	PC Pins	Polypropylene (PP) Metallized	85C/85% Humidity Long Life Low ESL Low ESR THB
