1376385 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CONN WIRE TO BOARD HDR 6POWER POS 5MM PRESS FIT ST THRU-HOLE BAG
| Part | Mated Stacking Heights | Applications | Number of Positions Loaded | Current Rating (Amps) | Contact Shape | Termination | Contact Finish - Post | Voltage Rating | Mounting Type | Material Flammability Rating | Contact Length - Post | Contact Length - Post | Operating Temperature [Min] | Operating Temperature [Max] | Style | Insulation Color | Number of Positions | Fastening Type | Insulation Height | Insulation Height | Number of Rows | Connector Type | Insulation Material | Pitch - Mating | Pitch - Mating | Contact Material | Features | Contact Type | Shrouding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

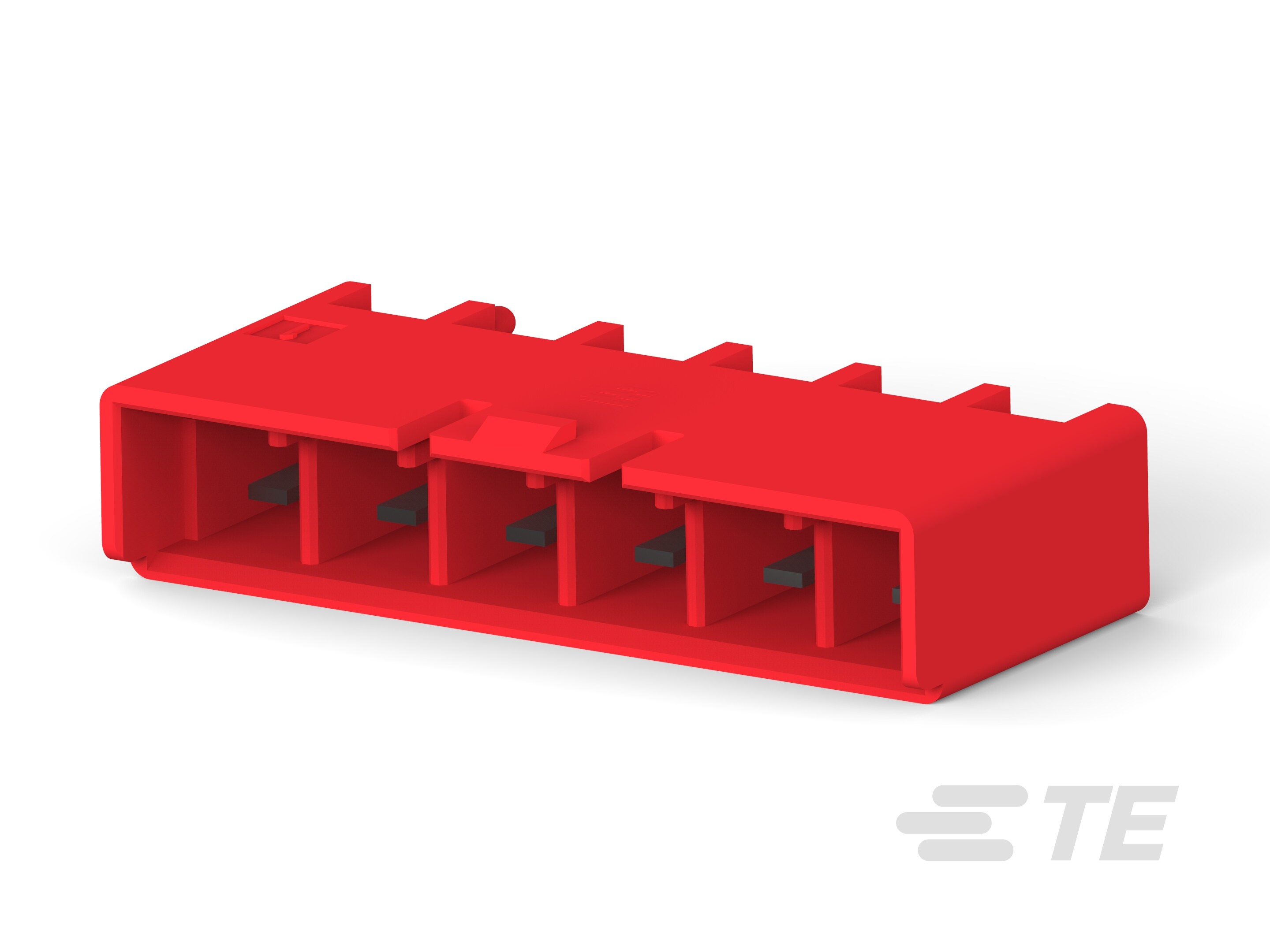

 TE Connectivity AMP Connectors | 19.4 mm | General Purpose | All | Varies by Wire Gauge | Rectangular | Kinked Pin Solder | Tin | 300 VAC | Through Hole | UL94 V-0 | 0.138 in | 3.5 mm | -40 C | 105 ░C | Board to Cable/Wire | Red | 6 | Locking Ramp | 14.1 mm | 0.555 in | 1 | Header | Glass Filled Nylon 6/6 Polyamide (PA66) | 0.197 " | 5 mm | Copper Alloy | Board Guide | Tab | Shrouded - 4 Wall |

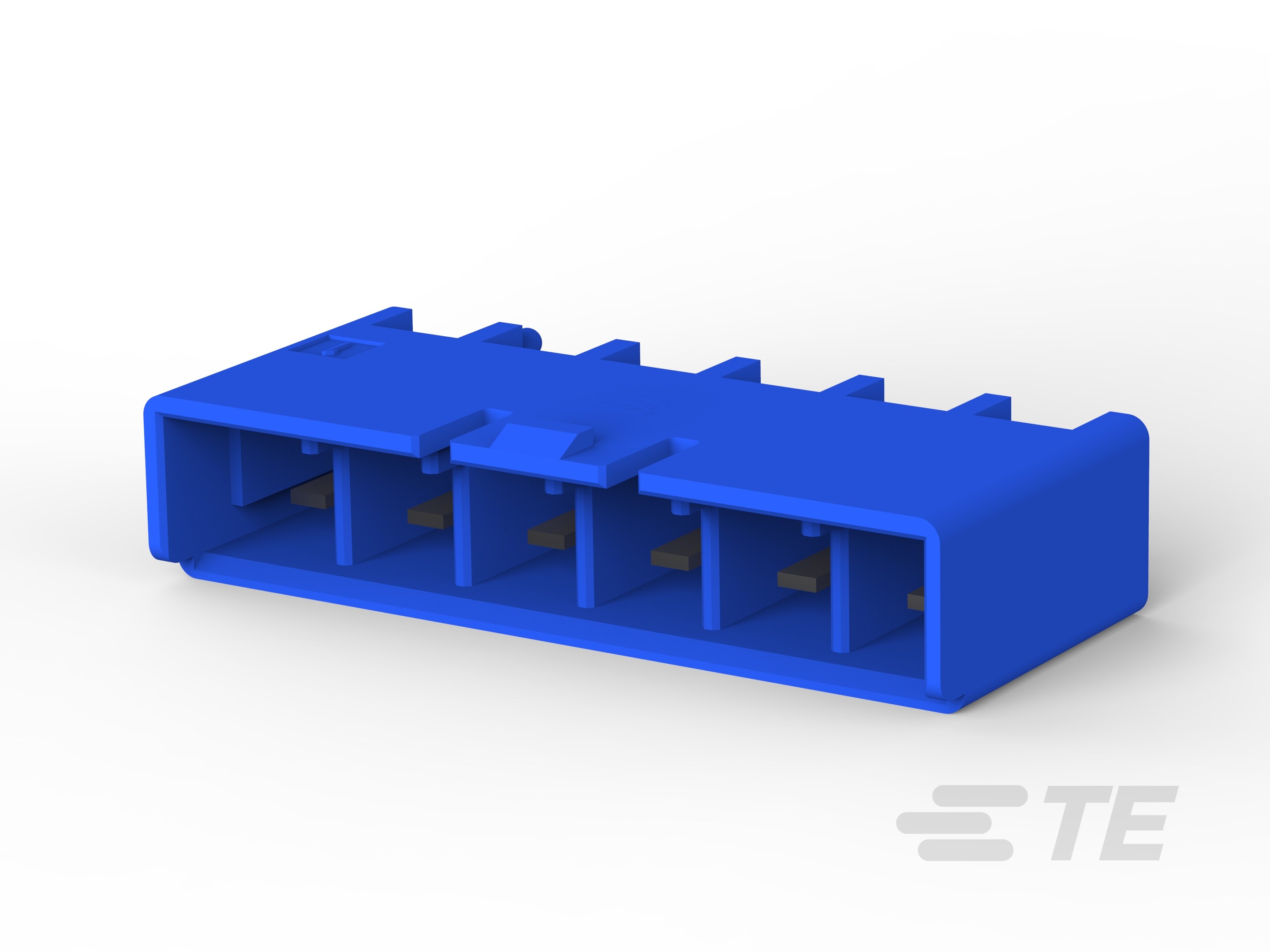

 TE Connectivity AMP Connectors | 19.4 mm | General Purpose | All | Varies by Wire Gauge | Rectangular | Kinked Pin Solder | Tin | 300 VAC | Through Hole | UL94 V-0 | 0.138 in | 3.5 mm | -40 C | 105 ░C | Board to Cable/Wire | Blue | 6 | Locking Ramp | 14.1 mm | 0.555 in | 1 | Header | Glass Filled Nylon 6/6 Polyamide (PA66) | 0.197 " | 5 mm | Copper Alloy | Board Guide | Tab | Shrouded - 4 Wall |

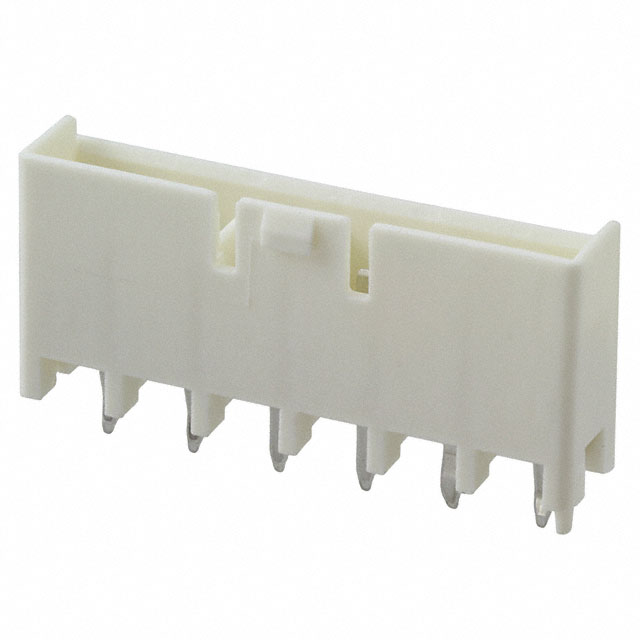

 TE Connectivity AMP Connectors | 19.4 mm | General Purpose | All | Varies by Wire Gauge | Rectangular | Kinked Pin Solder | Tin | 300 VAC | Through Hole | UL94 V-0 | 0.138 in | 3.5 mm | -40 C | 105 ░C | Board to Cable/Wire | Natural | 6 | Locking Ramp | 14.1 mm | 0.555 in | 1 | Header | Glass Filled Nylon 6/6 Polyamide (PA66) | 0.197 " | 5 mm | Copper Alloy | Board Guide | Tab | Shrouded - 4 Wall |
 TE Connectivity AMP Connectors | 19.4 mm | General Purpose | All | Varies by Wire Gauge | Rectangular | Kinked Pin Solder | Tin | 300 VAC | Through Hole | UL94 V-0 | 0.138 in | 3.5 mm | -40 C | 105 ░C | Board to Cable/Wire | Yellow | 6 | Locking Ramp | 14.1 mm | 0.555 in | 1 | Header | Glass Filled Nylon 6/6 Polyamide (PA66) | 0.197 " | 5 mm | Copper Alloy | Board Guide | Tab | Shrouded - 4 Wall |
