PTSA Series

Catalog

WIRE-TO-BOARD TERMINAL BLOCK, 2.5 MM, 8 POSITIONS, 24 AWG, 20 AWG, 0.5 MM², PUSH IN

Part	Housing Material	Pitch	Pitch	Mating Orientation	Mating Orientation	Wire Termination	Number of Levels	Voltage	Wire Gauge [Min]	Wire Gauge [Max]	Current	Positions Per Level	Color	Mounting Type	Positions Per Level [custom]	Operating Temperature [Max]	Operating Temperature [Min]
Phoenix Contact 1990067	Polyamide (PA) Nylon	2.5 mm	0.098 in	135 °	45 °	Screwless - Spring Cage Tension Clamp	1	300 VDC	19.5 AWG	26 AWG	2 A	8	Green	Through Hole
Phoenix Contact 1989803		2.5 mm	0.098 in	135 °	45 °	Screwless - Spring Cage Tension Clamp	1	300 VDC	19.5 AWG	26 AWG	2 A	8	Green	Through Hole

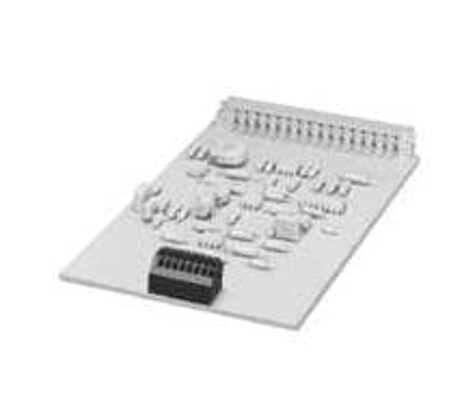

Phoenix Contact 1993381		2.5 mm	0.098 in	135 °	45 °	Screwless - Spring Cage Tension Clamp	1					10	Black	Through Hole

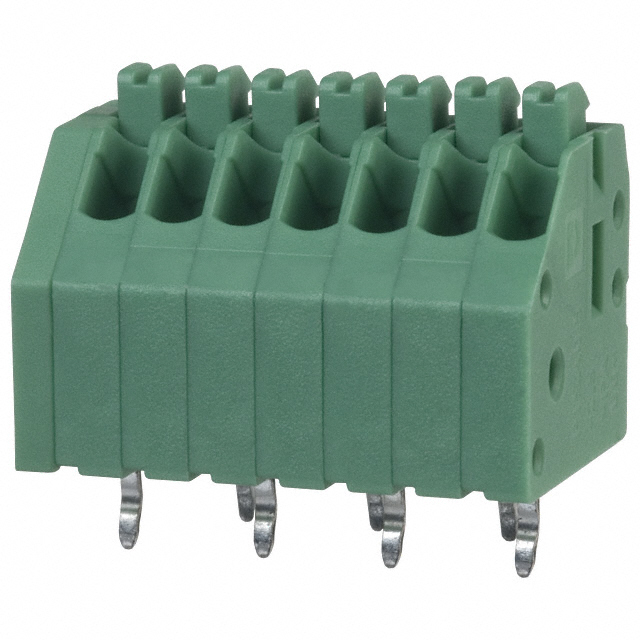

Phoenix Contact 1990054	Polyamide (PA) Nylon	2.5 mm	0.098 in	135 °	45 °	Screwless - Spring Cage Tension Clamp	1	300 VDC	19.5 AWG	26 AWG	2 A		Green	Through Hole	7
Phoenix Contact 1990164		2.5 mm	0.098 in	135 °	45 °	Screwless - Spring Cage Tension Clamp	1	300 VDC	19.5 AWG	26 AWG	2 A	18	Green	Through Hole
Phoenix Contact 1989751	Polyamide (PA) Nylon	2.5 mm	0.098 in	135 °	45 °	Screwless - Spring Cage Tension Clamp	1	300 VDC	19.5 AWG	26 AWG	2 A	3	Green	Through Hole		85 °C	-40 C
