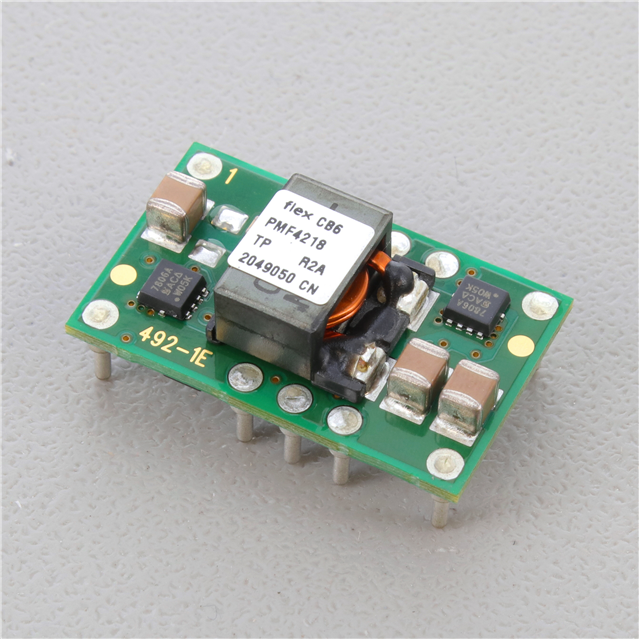

PMF421 Series
Manufacturer: Flex Power Modules
Beta
⌘K
DC DC CONVERTER 0.8-2.5V 25W
| Part | Current - Output (Max) [Max] | Mounting Type | Efficiency | Approval Agency | Voltage - Output 1 [Min] | Voltage - Output 1 [Max] | Package / Case | Standard Number | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Power (Watts) | Features | Control Features | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Input (Min) [Min] | Applications | Type | Number of Outputs | Voltage - Input (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Flex Power Modules | 10 A | Through Hole | 94.1 % | CB CSA IEC TUV UL | 0.8 V | 2.5 V | 10-DIP Module | 62368-1 | 0.62 in | 25.3 mm | 15.8 mm | 0.35 " | 9 mm | 0.99 " | 25 W | Adjustable Output Remote On/Off Remote Sense | Active Low Enable | -40 °C | 85 °C | 2.95 V | ITE (Commercial) | Non-Isolated PoL Module | 1 | 3.65 V |
 Flex Power Modules | 10 A | Surface Mount | 94.1 % | CB CSA IEC TUV UL | 0.8 V | 2.5 V | 10-SMD Module | 62368-1 | 0.62 in | 25.3 mm | 15.8 mm | 0.35 " | 9 mm | 0.99 " | 25 W | Adjustable Output Remote On/Off Remote Sense | Active Low Enable | -40 °C | 85 °C | 2.95 V | ITE (Commercial) | Non-Isolated PoL Module | 1 | 3.65 V |
