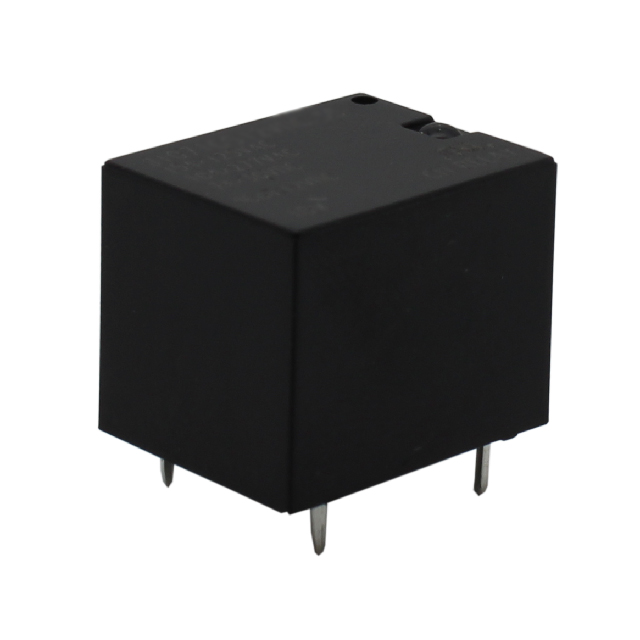

J1071AS Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
RELAY GEN PURPOSE SPST N.O. 15A
| Part | Coil Resistance | Must Operate Voltage | Release Time | Load - Max Switching | Contact Material | Mounting Type | Operate Time | Switching Voltage [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Coil Type | Contact Form | Contact Rating (Current) | Coil Insulation | Relay Type | Coil Current | Seal Rating | Must Release Voltage | Termination Style | Coil Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 25 Ohms | 2.25 VDC | 10 ms | 450 W 1875 VA | Silver Tin Oxide (AgSnO) | Through Hole | 10 ms | 30 VDC 125 VAC | 125 °C | -40 C | Non Latching | SPST-NO (1 Form A) | 15 A | Class F | General Purpose | 0.12 A | Sealed - Fully | 0.3 VDC | PC Pin | |
CIT Relay and Switch | 69 Ohms | 3.75 VDC | 10 ms | 450 W 1875 VA | Silver Tin Oxide (AgSnO) | Through Hole | 10 ms | 30 VDC 125 VAC | 125 °C | -40 C | Non Latching | SPST-NO (1 Form A) | 15 A | Class F | General Purpose | 72.5 mA | Sealed - Fully | 0.5 VDC | PC Pin | 5 VDC |
CIT Relay and Switch | 100 Ohms | 4.5 VDC | 10 ms | 450 W 1875 VA | Silver Tin Oxide (AgSnO) | Through Hole | 10 ms | 30 VDC 125 VAC | 125 °C | -40 C | Non Latching | SPST-NO (1 Form A) | 15 A | Class F | General Purpose | 0.06 A | Sealed - Fully | 0.6 VDC | PC Pin | |
CIT Relay and Switch | 225 Ohms | 6.75 VDC | 10 ms | 450 W 1875 VA | Silver Tin Oxide (AgSnO) | Through Hole | 10 ms | 30 VDC 125 VAC | 125 °C | -40 C | Non Latching | SPST-NO (1 Form A) | 15 A | Class F | General Purpose | 40 mA | Sealed - Fully | 0.9 VDC | PC Pin | 9 VDC |
CIT Relay and Switch | 900 Ohms | 13.5 VDC | 10 ms | 450 W 1875 VA | Silver Tin Oxide (AgSnO) | Through Hole | 10 ms | 30 VDC 125 VAC | 125 °C | -40 C | Non Latching | SPST-NO (1 Form A) | 15 A | Class F | General Purpose | 0.02 A | Sealed - Fully | 1.8 VDC | PC Pin | 18 VDC |
CIT Relay and Switch | 400 Ohms | 9 VDC | 10 ms | 450 W 1875 VA | Silver Tin Oxide (AgSnO) | Through Hole | 10 ms | 30 VDC 125 VAC | 125 °C | -40 C | Non Latching | SPST-NO (1 Form A) | 15 A | Class F | General Purpose | 0.03 A | Sealed - Fully | 1.2 VDC | PC Pin | 12 VDC |
CIT Relay and Switch | 6.4 kOhms | 36 VDC | 10 ms | 450 W 1875 VA | Silver Tin Oxide (AgSnO) | Through Hole | 10 ms | 30 VDC 125 VAC | 125 °C | -40 C | Non Latching | SPST-NO (1 Form A) | 15 A | Class F | General Purpose | 7.5 mA | Sealed - Fully | 4.8 VDC | PC Pin | 48 VDC |
CIT Relay and Switch | 1.6 kOhms | 18 VDC | 10 ms | 450 W 1875 VA | Silver Tin Oxide (AgSnO) | Through Hole | 10 ms | 30 VDC 125 VAC | 125 °C | -40 C | Non Latching | SPST-NO (1 Form A) | 15 A | Class F | General Purpose | 0.015 A | Sealed - Fully | 2.4 VDC | PC Pin | 24 VDC |
