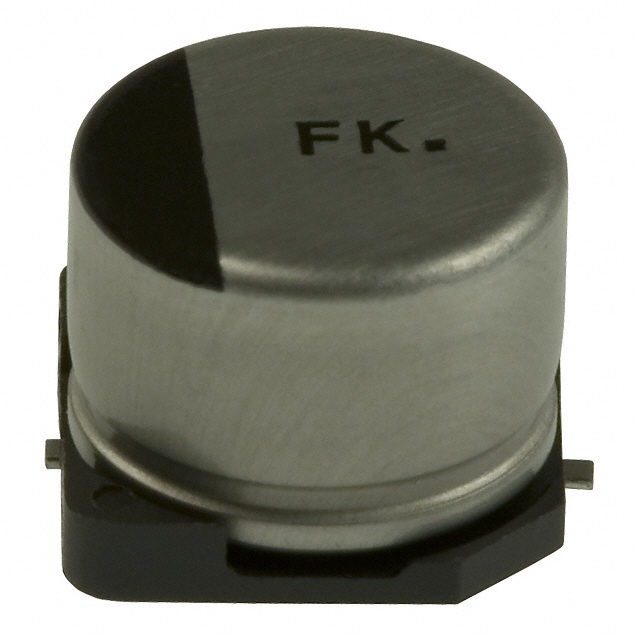

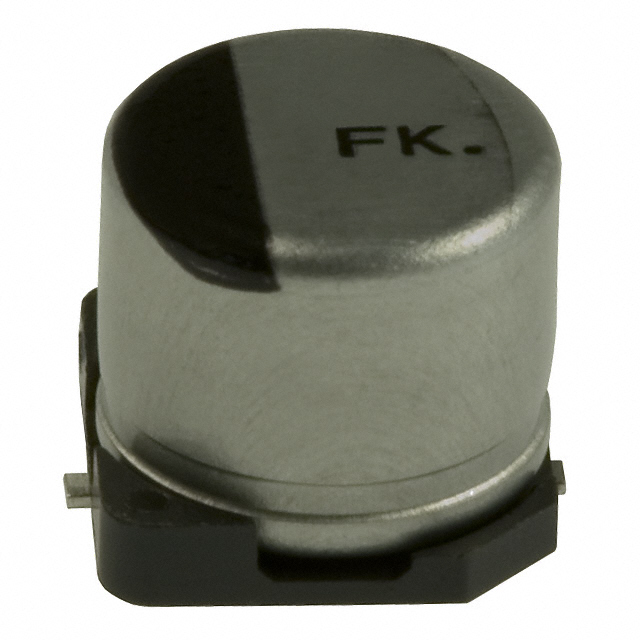

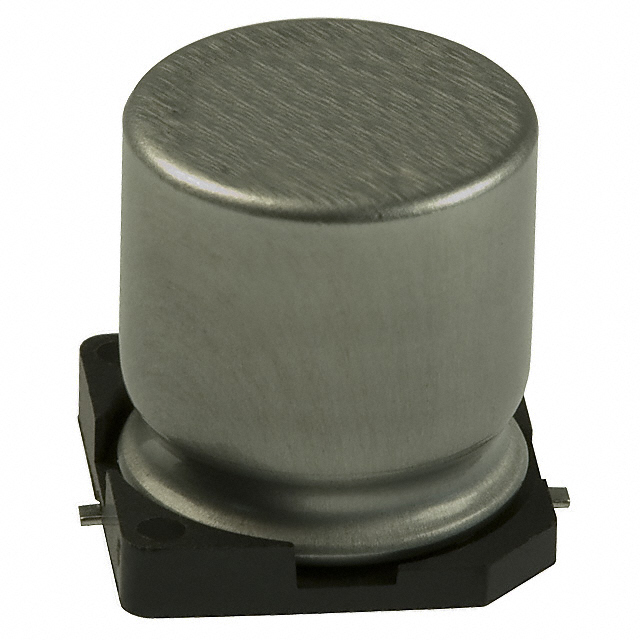

EEE-FK Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

Catalog

SMD ALUMINUM ELECTROLYTIC CAPACITOR, RADIAL CAN - SMD, 4700 ΜF, 10 V, 0.035 OHM

...

Part	Ripple Current @ High Frequency	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Polarization	Voltage - Rated	Ripple Current @ Low Frequency	Lifetime @ Temp.	Size / Dimension [diameter]	Size / Dimension [diameter]	Tolerance	Capacitance	ESR (Equivalent Series Resistance)	Ratings	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Impedance	Height - Seated (Max)

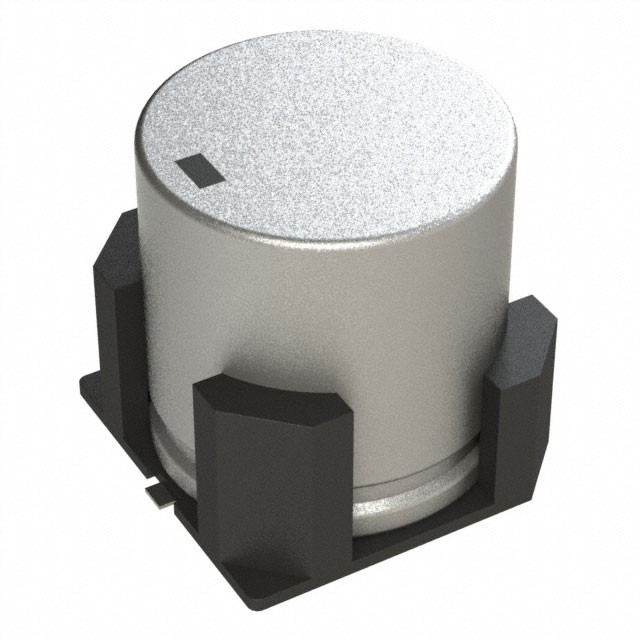

Panasonic Industrial Automation Sales EEE-FK1A472AV	1.8 A	0.669 in	17 mm	17 mm	0.669 in	105 ░C	-55 °C	Surface Mount	Polar	10 V	1.35 A	5000 Hrs	0.63 in	16 mm	20 %	4700 µF	35 mOhm	AEC-Q200	Radial Can - SMD	0.673 in	17.1 mm	Automotive High Temperature Reflow
Panasonic Industrial Automation Sales EEE-FK0J331V	300 mA	0.327 "	8.3 mm	8.3 mm	0.327 in	105 ░C	-55 °C	Surface Mount	Polar	6.3 V	225 mA	2000 Hrs	0.315 "	8 mm	20 %	330 µF	260 mOhm	AEC-Q200	Radial Can - SMD			Automotive	6.8 mm	0.268 in
Panasonic Industrial Automation Sales EEE-FK1C432SV	1.8 A	0.669 in	17 mm	17 mm	0.669 in	105 ░C	-55 °C	Surface Mount	Polar	16 V	1.35 A	5000 Hrs	0.63 in	16 mm	20 %	4300 µF		AEC-Q200	Radial Can - SMD			Automotive	17 mm	0.669 in
Panasonic Industrial Automation Sales EEE-FK1V4R7AR	90 mA	0.169 in	4.3 mm	4.3 mm	0.169 "	105 ░C	-55 °C	Surface Mount	Polar	35 V	58.5 mA	2000 Hrs	0.157 in	4 mm	20 %	4.7 µF		AEC-Q200	Radial Can - SMD			Automotive High Temperature Reflow	6.1 mm	0.24 in	1.35 Ohms
Panasonic Industrial Automation Sales EEE-FK1K470SL	130 mA	0.327 "	8.3 mm	8.3 mm	0.327 in	105 ░C	-55 °C	Surface Mount	Polar	80 V	84.5 mA	2000 Hrs	0.315 "	8 mm	20 %	47 µF	1.3 Ohm	AEC-Q200	Radial Can - SMD	0.413 in	10.5 mm	Automotive
Panasonic Industrial Automation Sales EEE-FK1A222AQ	1.1 A	0.531 in	13.5 mm	13.5 mm	0.531 in	105 ░C	-55 °C	Surface Mount	Polar	10 V	825 mA	5000 Hrs	0.492 in	12.5 mm	20 %	2200 µF		AEC-Q200	Radial Can - SMD	0.551 "		Automotive High Temperature Reflow			60 mOhms	14 mm
Panasonic Industrial Automation Sales EEE-FK1C331GP	600 mA	0.327 "	8.3 mm	8.3 mm	0.327 in	105 ░C	-55 °C	Surface Mount	Polar	16 V	450 mA	5000 Hrs	0.315 "	8 mm	20 %	330 µF		AEC-Q200	Radial Can - SMD	0.413 in	10.5 mm	Automotive			160 mOhms
Panasonic Industrial Automation Sales EEE-FK1C102SP	850 mA	0.406 in	10.3 mm	10.3 mm	0.406 "	105 ░C	-55 °C	Surface Mount	Polar	16 V	552.5 mA	2000 Hrs	0.394 in	10 mm	20 %	1000 µF	80 mOhm	AEC-Q200	Radial Can - SMD	0.413 in	10.5 mm	Automotive
Panasonic Industrial Automation Sales EEE-FK1E221GL	600 mA	0.327 "	8.3 mm	8.3 mm	0.327 in	105 ░C	-55 °C	Surface Mount	Polar	25 VDC	450 mA	2000 Hrs	0.315 "	8 mm	20 %	220 µF		AEC-Q200	Radial Can - SMD	0.413 in	10.5 mm	Automotive			160 mOhms
Panasonic Industrial Automation Sales EEE-FK1E101XP	280 mA	0.26 in	6.6 mm	6.6 mm	0.26 in	105 ░C	-55 °C	Surface Mount	Polar	25 VDC	210 mA	2000 Hrs	0.248 in	6.3 mm	20 %	100 µF		AEC-Q200	Radial Can - SMD			Automotive	8 mm	0.315 in	340 mOhms
