052418 Series
Manufacturer: Molex
Beta
⌘K
CONN RCPT 15P 0.079 TIN PCB R/A
| Part | Mounting Type | Contact Length - Post | Contact Length - Post [x] | Pitch - Mating [x] | Pitch - Mating [x] | Voltage Rating | Number of Positions Loaded | Contact Finish - Post | Material Flammability Rating | Insulation Material | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Contact Shape | Contact Type | Insulation Height | Insulation Height | Number of Rows | Contact Material | Current Rating (Amps) | Number of Positions | Termination | Fastening Type | Insulation Color | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | Through Hole Right Angle | 3.2 mm | 0.126 in | 0.079 in | 2 mm | 125 VAC | All | Tin | UL94 V-0 | Polybutylene Terephthalate (PBT) Glass Filled | -40 °C | 105 ░C | Receptacle | Square | Female Socket | 0.124 in | 3.14 mm | 1 | Phosphor Bronze | 1.5 A | 15 | Press-Fit Solder | Friction Lock | Natural | |
Molex | Through Hole Right Angle | 3.2 mm | 0.126 in | 0.079 in | 2 mm | 125 VAC | All | Tin | UL94 V-0 | Polybutylene Terephthalate (PBT) Glass Filled | -40 °C | 105 ░C | Receptacle | Square | Female Socket | 0.124 in | 3.14 mm | 1 | Phosphor Bronze | 1.5 A | Press-Fit Solder | Friction Lock | Natural | ||
 Molex | Through Hole Right Angle | 3.2 mm | 0.126 in | 0.079 in | 2 mm | 125 VAC | All | Tin | UL94 V-0 | Polybutylene Terephthalate (PBT) Glass Filled | -40 °C | 105 ░C | Receptacle | Square | Female Socket | 0.124 in | 3.14 mm | 1 | Phosphor Bronze | 1.5 A | 7 | Press-Fit Solder | Friction Lock | Natural | |

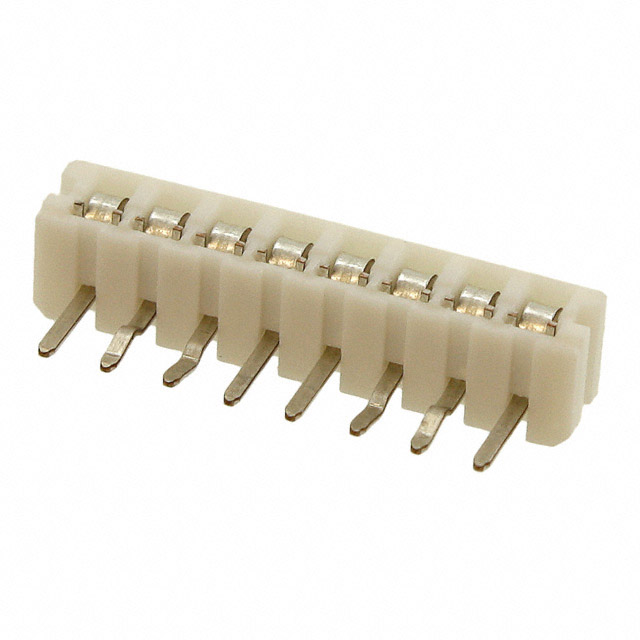

 Molex | Through Hole Right Angle | 3.2 mm | 0.126 in | 0.079 in | 2 mm | 125 VAC | All | Tin | UL94 V-0 | Polybutylene Terephthalate (PBT) Glass Filled | -40 °C | 105 ░C | Receptacle | Square | Female Socket | 0.124 in | 3.14 mm | 1 | Phosphor Bronze | 1.5 A | 8 | Press-Fit Solder | Friction Lock | Natural | |
Molex | Through Hole Right Angle | 3.2 mm | 0.126 in | 0.079 in | 2 mm | 125 VAC | All | Tin | UL94 V-0 | Polybutylene Terephthalate (PBT) Glass Filled | -40 °C | 105 ░C | Receptacle | Square | Female Socket | 0.124 in | 3.14 mm | 1 | Phosphor Bronze | 1.5 A | 13 | Press-Fit Solder | Friction Lock | Natural | |
Molex | Through Hole Right Angle | 3.2 mm | 0.126 in | 0.079 in | 2 mm | 125 VAC | All | Tin | UL94 V-0 | Polybutylene Terephthalate (PBT) Glass Filled | -40 °C | 105 ░C | Receptacle | Square | Female Socket | 0.124 in | 3.14 mm | 1 | Phosphor Bronze | 1.5 A | 20 | Press-Fit Solder | Friction Lock | Natural | |
Molex | Through Hole Right Angle | 3.2 mm | 0.126 in | 0.079 in | 2 mm | 125 VAC | All | Tin | UL94 V-0 | Polybutylene Terephthalate (PBT) Glass Filled | -40 °C | 105 ░C | Receptacle | Square | Female Socket | 0.124 in | 3.14 mm | 1 | Phosphor Bronze | 1.5 A | 14 | Press-Fit Solder | Friction Lock | Natural | |

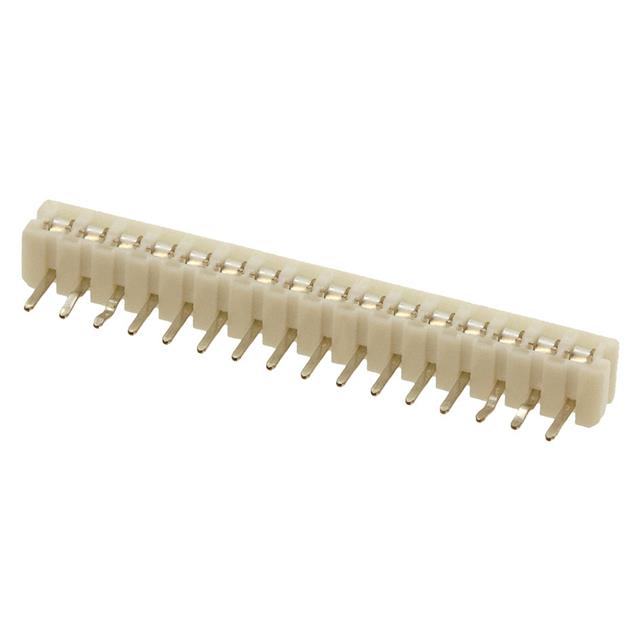

 Molex | Through Hole Right Angle | 3.2 mm | 0.126 in | 0.079 in | 2 mm | 125 VAC | All | Tin | UL94 V-0 | Polybutylene Terephthalate (PBT) Glass Filled | -40 °C | 105 ░C | Receptacle | Square | Female Socket | 0.124 in | 3.14 mm | 1 | Phosphor Bronze | 1.5 A | Press-Fit Solder | Friction Lock | Natural | 16 |
