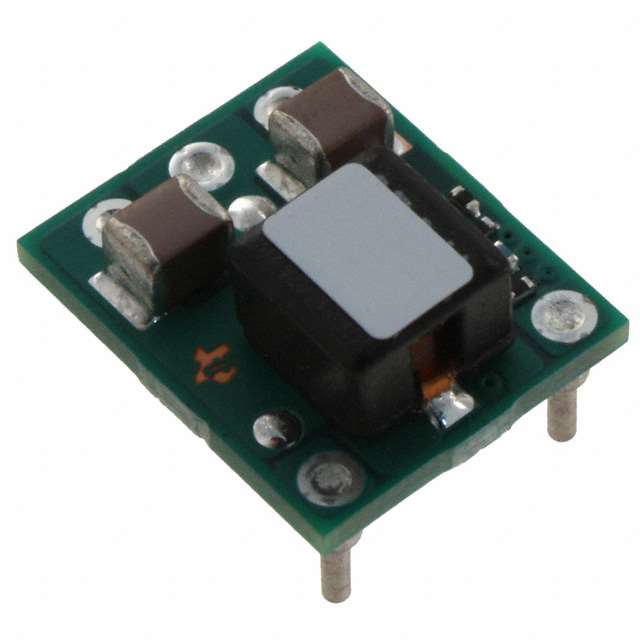

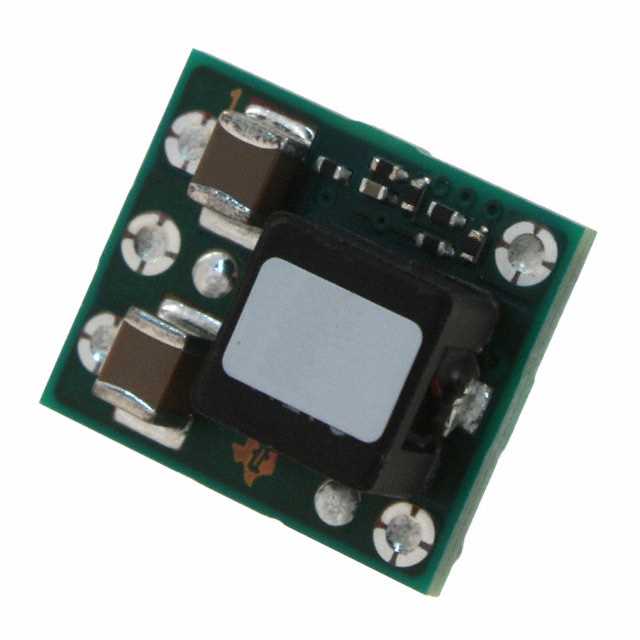

PTH08080W Series

2.25 A, 4.5-V to 18-V Input Wide Adjust Miniature Power Module

Catalog

2.25 A, 4.5-V to 18-V Input Wide Adjust Miniature Power Module

Part	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Features	Type	Voltage - Input (Max) [Max]	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Current - Output (Max) [Max]	Number of Outputs	Package / Case	Mounting Type	Efficiency
Texas Instruments PTH08080WBH	0.32 "	15.2 mm	0.5 in	0.6 in	12.7 mm	8.1 mm	ITE (Commercial)	85 °C	-40 °C	4.5 V	Remote On/Off UVLO	Non-Isolated PoL Module	18 V	0.9 V	5.5 V	2.25 A	1	5-DIP Module	Through Hole	93.5 %
Texas Instruments PTH08080WAD	0.32 "	15.2 mm	0.5 in	0.6 in	12.7 mm	8.1 mm	ITE (Commercial)	85 °C	-40 °C	4.5 V		Non-Isolated PoL Module	18 V	0.9 V	5.5 V	2.25 A	1	5-DIP Module	Through Hole	93.5 %
Texas Instruments PTH08080WAZT	0.35 "	15.2 mm	0.5 in	0.6 in	12.7 mm	8.9 mm	ITE (Commercial)	85 °C	-40 °C	4.5 V		Non-Isolated PoL Module	18 V	0.9 V	5.5 V	2.25 A	1	5-SMD Module	Surface Mount	93.5 %
Texas Instruments PTH08080WAZ	0.35 "	15.2 mm	0.5 in	0.6 in	12.7 mm	8.9 mm	ITE (Commercial)	85 °C	-40 °C	4.5 V		Non-Isolated PoL Module	18 V	0.9 V	5.5 V	2.25 A	1	5-SMD Module	Surface Mount	93.5 %
Texas Instruments PTH08080WAST	0.35 "	15.2 mm	0.5 in	0.6 in	12.7 mm	8.9 mm	ITE (Commercial)	85 °C	-40 °C	4.5 V		Non-Isolated PoL Module	18 V	0.9 V	5.5 V	2.25 A	1	5-SMD Module	Surface Mount	93.5 %
Texas Instruments PTH08080WAS	0.35 "	15.2 mm	0.5 in	0.6 in	12.7 mm	8.9 mm	ITE (Commercial)	85 °C	-40 °C	4.5 V		Non-Isolated PoL Module	18 V	0.9 V	5.5 V	2.25 A	1	5-SMD Module	Surface Mount	93.5 %
Texas Instruments PTH08080WAH	0.32 "	15.2 mm	0.5 in	0.6 in	12.7 mm	8.1 mm	ITE (Commercial)	85 °C	-40 °C	4.5 V		Non-Isolated PoL Module	18 V	0.9 V	5.5 V	2.25 A	1	5-DIP Module	Through Hole	93.5 %

Catalog

2.25 A, 4.5-V to 18-V Input Wide Adjust Miniature Power Module

Key Features

• Up to 2.25-A Output Current at 85°C4.5-V to 18-V Input Voltage RangeWide-Output Voltage Adjust (0.9 V to 5.5 V)Efficiencies Up To 93%On/Off InhibitUndervoltage Lockout (UVLO)Output Overcurrent Protection (Nonlatching, Auto-Reset)Overtemperature ProtectionAmbient Temperature Range: –40°C to 85°CSurface-Mount PackageSafety Agency Approvals: UL/CUL 60950, EN60950Up to 2.25-A Output Current at 85°C4.5-V to 18-V Input Voltage RangeWide-Output Voltage Adjust (0.9 V to 5.5 V)Efficiencies Up To 93%On/Off InhibitUndervoltage Lockout (UVLO)Output Overcurrent Protection (Nonlatching, Auto-Reset)Overtemperature ProtectionAmbient Temperature Range: –40°C to 85°CSurface-Mount PackageSafety Agency Approvals: UL/CUL 60950, EN60950

Description

The PTH08080W is a highly integrated, low-cost switching regulator module that delivers up to 2.25 A of output current. The PTH08080W sources output current at a much higher efficiency than a TO-220 linear regulator IC, thereby eliminating the need for a heat sink. Its small size (0.5 × 0.6 in) and flexible operation creates value for a variety of applications. The input voltage range of the PTH08080W is from 4.5 V to 18 V, allowing operation from either a 5-V or 12-V input bus. Using state-of-the-art switched-mode power-conversion technology, the PTH08080W can step down to voltages as low as 0.9 V from a 5-V input bus, with less than 1 W of power dissipation. The output voltage can be adjusted to any voltage over the range, 0.9 V to 5.5 V, using a single external resistor. Operating features include an undervoltage lockout (UVLO), on/off inhibit, overcurrent protection, and overtemperature protection. Target applications include telecommunications, test and measurement applications, and high-end consumer products. This product is available in both through-hole and surface-mount package options, including tape and reel. The PTH08080W is a highly integrated, low-cost switching regulator module that delivers up to 2.25 A of output current. The PTH08080W sources output current at a much higher efficiency than a TO-220 linear regulator IC, thereby eliminating the need for a heat sink. Its small size (0.5 × 0.6 in) and flexible operation creates value for a variety of applications. The input voltage range of the PTH08080W is from 4.5 V to 18 V, allowing operation from either a 5-V or 12-V input bus. Using state-of-the-art switched-mode power-conversion technology, the PTH08080W can step down to voltages as low as 0.9 V from a 5-V input bus, with less than 1 W of power dissipation. The output voltage can be adjusted to any voltage over the range, 0.9 V to 5.5 V, using a single external resistor. Operating features include an undervoltage lockout (UVLO), on/off inhibit, overcurrent protection, and overtemperature protection. Target applications include telecommunications, test and measurement applications, and high-end consumer products. This product is available in both through-hole and surface-mount package options, including tape and reel.
