MIPAF1 Series

Catalog

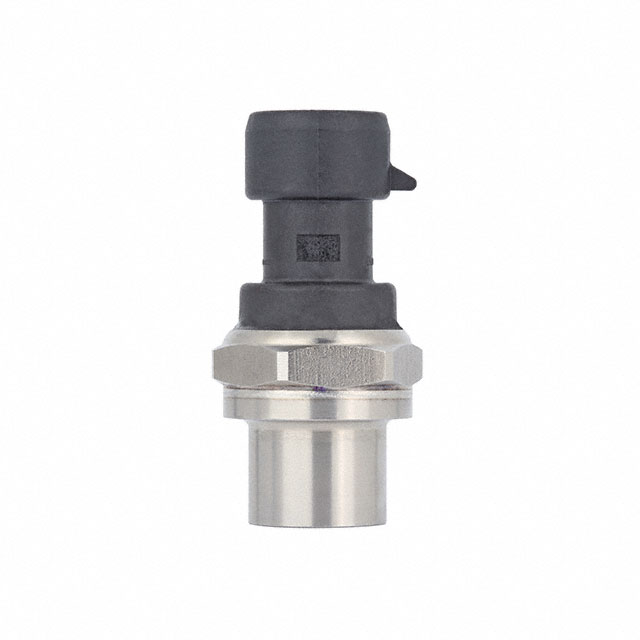

SENSOR 667PSIS 7/16" 4.5V

Part	Termination Style	Port Size [x]	Port Size [x]	Port Size	Accuracy	Features	Package / Case	Maximum Pressure [Max]	Maximum Pressure [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Output [Min]	Output [Max]	Port Style	Output Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Pressure	Operating Pressure	Pressure Type
Honeywell Sensing and Productivity Solutions MIPAF1XX667PSAAX	Connector	11.11 mm	0.4375 "	Female	0.15 %	Temperature Compensated	Cylinder Threaded	12000 kPa	1740.45 PSI	125 °C	-40 °C	0.5 V	4.5 V	Threaded	Analog Voltage	4.75 V	5.25 V	667 PSI	4598.8 kPa	Sealed Gauge
Honeywell Sensing and Productivity Solutions MIPAF1XX250PSAAX	Connector	11.11 mm	0.4375 "	Female	0.15 %	Temperature Compensated	Cylinder Threaded	12000 kPa	1740.45 PSI	125 °C	-40 °C	0.5 V	4.5 V	Threaded	Analog Voltage	4.75 V	5.25 V	250 PSI	1723.69 kPa	Sealed Gauge
