1753-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

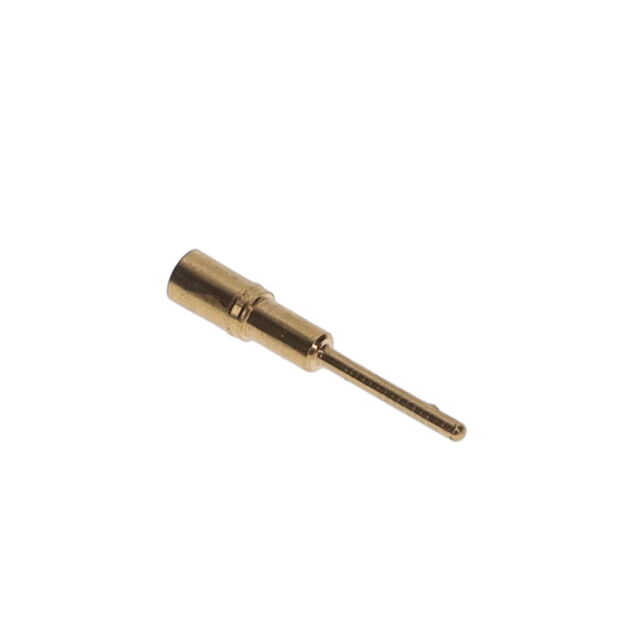

CONN PIN RCPT .015-.025 PRESSFIT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Tail Type	Contact Finish Thickness	Contact Finish Thickness	Length - Overall [x]	Length - Overall [x]	Termination	Contact Material	Tail Diameter [diameter]	Tail Diameter [diameter]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Contact Finish	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]
Mill-Max Manufacturing Corp. 1753-0-15-01-30-27-04-0	-55 C	125 °C	Standard Tail	30 Áin	0.76 Ám	0.353 in	8.97 mm	Press-Fit	Beryllium Copper	0.51 mm	0.02 in	0.64 mm	0.015 "	0.025 in	0.38 mm	Gold	1.45 mm	0.057 in
Mill-Max Manufacturing Corp. 1753-0-15-01-30-02-04-0	-55 C	125 °C	Standard Tail	100 µin	2.54 µm	0.353 in	8.97 mm	Press-Fit	Beryllium Copper	0.51 mm	0.02 in	0.64 mm	0.015 "	0.025 in	0.38 mm	Tin-Lead	1.45 mm	0.057 in
Mill-Max Manufacturing Corp. 1753-0-15-15-30-27-04-0	-55 C	125 °C	Standard Tail	30 Áin	0.76 Ám	0.353 in	8.97 mm	Press-Fit	Beryllium Copper	0.51 mm	0.02 in	0.64 mm	0.015 "	0.025 in	0.38 mm	Gold	1.45 mm	0.057 in
Mill-Max Manufacturing Corp. 1753-0-15-01-30-14-04-0	-55 C	125 °C	Standard Tail	10 Áin	0.25 Ám	0.353 in	8.97 mm	Press-Fit	Beryllium Copper	0.51 mm	0.02 in	0.64 mm	0.015 "	0.025 in	0.38 mm	Gold	1.45 mm	0.057 in
Mill-Max Manufacturing Corp. 1753-0-15-15-30-14-04-0	-55 C	125 °C	Standard Tail	10 Áin	0.25 Ám	0.353 in	8.97 mm	Press-Fit	Beryllium Copper	0.51 mm	0.02 in	0.64 mm	0.015 "	0.025 in	0.38 mm	Gold	1.45 mm	0.057 in
Mill-Max Manufacturing Corp. 1753-0-15-80-30-27-04-0	-55 C	125 °C	Standard Tail	30 Áin	0.76 Ám	0.353 in	8.97 mm	Press-Fit	Beryllium Copper	0.51 mm	0.02 in	0.64 mm	0.015 "	0.025 in	0.38 mm	Gold	1.45 mm	0.057 in
