9GA0312 Series

Catalog

FAN AXIAL 38X28MM 12VDC WIRE

Part	Voltage Range [Min]	Voltage Range [Max]	Current Rating (Amps)	Lifetime @ Temp.	Material - Blade	Material - Frame	Approval Agency	Air Flow	Air Flow	Noise	RPM	Operating Temperature [Min]	Operating Temperature [Max]	Fan Type	Size / Dimension [x]	Size / Dimension [z]	Static Pressure	Static Pressure	Bearing Type	Weight	Weight	Power (Watts)	Voltage - Rated	Termination	Width [x]	Features	Lifetime @ Temp.
Sanyo Denki America Inc. 9GA0312J3001	10.8 VDC	13.2 VDC	0.52 A	Varies Based on Temperature	Plastic	Plastic	CSA TUV UL	0.563 m³/min	20.1 CFM	57.5 dB	23500 RPM	-20 ░C	70 °C	Tubeaxial	38 mm	38 mm	2.89 in H2O	719.9 Pa	Ball	52.16 g	0.115 lb	6.2 W	12 VDC	3 Wire Leads	28 mm	Locked Rotor Protection Speed Sensor (Tach)

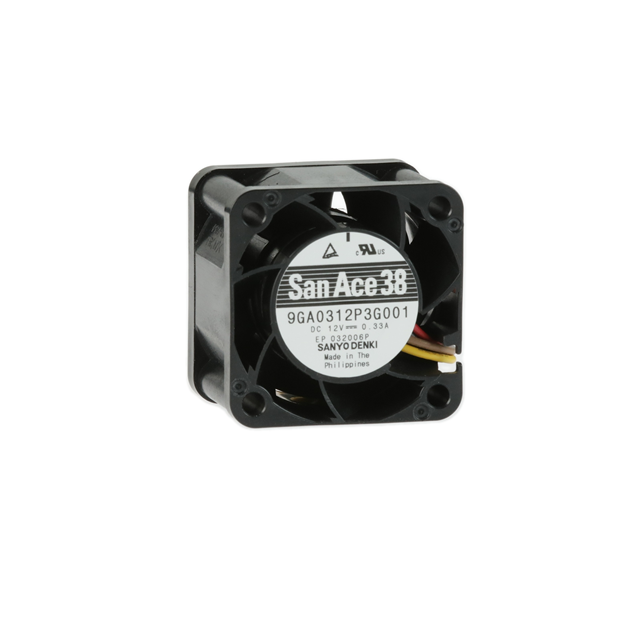

Sanyo Denki America Inc. 9GA0312P3G001	10.8 VDC	13.2 VDC	0.33 A		Plastic	Plastic	CSA TUV UL	0.445 mł/min	15.9 CFM	53 dB	19000 RPM	-20 ░C	70 °C	Tubeaxial	38 mm	38 mm	1.85 in H2O	460.8 Pa	Ball	52.16 g	0.115 lb	4 W	12 VDC	4 Wire Leads	28 mm	PWM Control Speed Sensor (Tach)	40000 Hrs
Sanyo Denki America Inc. 9GA0312P3J0011	10.8 VDC	13.2 VDC	0.52 A		Plastic	Plastic	CSA TUV UL	0.563 m³/min	20.1 CFM	57.5 dB	23500 RPM	-20 ░C	70 °C	Tubeaxial	38 mm	38 mm	2.891 in H2O	720.1 Pa	Ball	52.16 g	0.115 lb	6.2 W	12 VDC	4 Wire Leads	28 mm	PWM Control Speed Sensor (Tach)	40000 Hrs
Sanyo Denki America Inc. 9GA0312P3K001	10.8 VDC	13.2 VDC	0.62 A		Plastic	Plastic	CSA TUV UL	0.594 m³/min	21.2 CFM	59 dB(A)	25000 RPM	-20 ░C	70 °C	Tubeaxial	38 mm	38 mm	3.21 in H2O	800 Pa	Ball	52.16 g	0.115 lb	7.4 W	12 VDC	4 Wire Leads	28 mm	PWM Control Speed Sensor (Tach)	40000 Hrs
