109R0805 Series

Catalog

FAN AXIAL 80X25MM BALL 5VDC WIRE

Part	Current Rating (Amps)	Material - Frame	Voltage Range [Max]	Voltage Range [Min]	Material - Blade	Width [y]	Noise	Air Flow	Air Flow	Operating Temperature [Min]	Operating Temperature [Max]	Weight	Weight	Power (Watts)	Approval Agency	Bearing Type	Voltage - Rated	Termination	RPM	Size / Dimension [z]	Size / Dimension [x]	Static Pressure	Static Pressure	Fan Type	Features

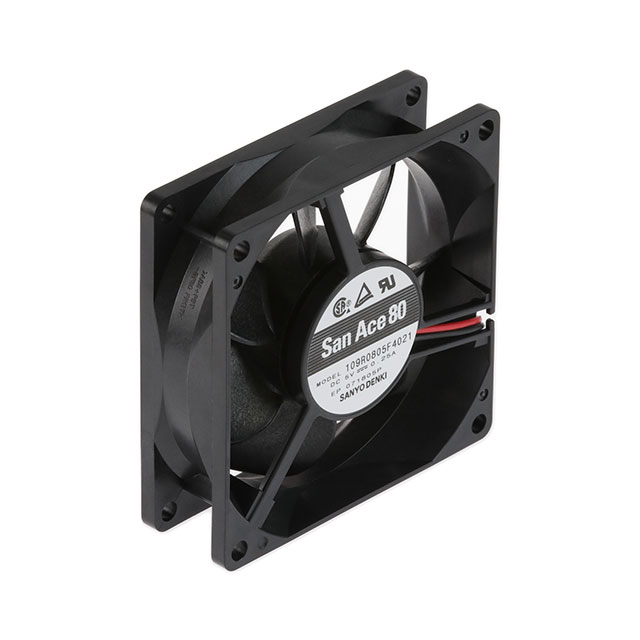

Sanyo Denki America Inc. 109R0805F4021	0.25 A	Plastic	5.5 V	4.5 V	Plastic	25 mm	26 dB	0.91 mł/min	32.5 CFM	-20 ░C	70 °C	110.22 g	0.243 lb	1.25 W	CSA TUV UL	Ball	5 V	2 Wire Leads	2600 RPM	80 mm	80 mm	0.114 in H2O	28.4 Pa	Tubeaxial
Sanyo Denki America Inc. 109R0805M4011	0.17 A	Plastic	5.5 V	4.5 V	Plastic	25 mm	23 dB(A)	0.82 m³/min	29.3 CFM	-20 ░C	70 °C	110.22 g	0.243 lb	850 mW	CSA TUV UL	Ball	5 V	3 Wire Leads	2350 RPM	80 mm	80 mm	0.09 in H2O	22.4 Pa	Tubeaxial	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 109R0805F402	0.25 A	Plastic	5.5 V	4.5 V	Plastic	25 mm	26 dB	0.91 mł/min	32.5 CFM	-20 ░C	70 °C	110.22 g	0.243 lb	1.25 W	CSA TUV UL	Ball	5 V	2 Wire Leads	2600 RPM	80 mm	80 mm	0.114 in H2O	28.4 Pa	Tubeaxial

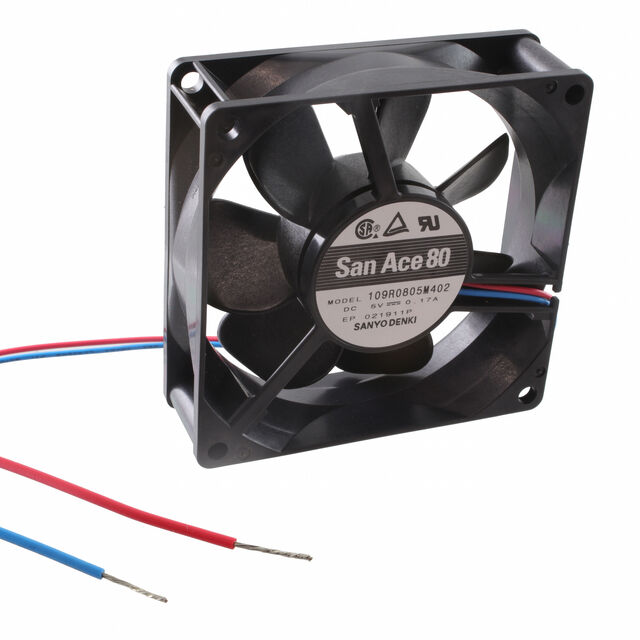

Sanyo Denki America Inc. 109R0805M402	0.17 A	Plastic	5.5 V	4.5 V	Plastic	25 mm	23 dB(A)	0.82 m³/min	29.3 CFM	-20 ░C	70 °C	110.22 g	0.243 lb	850 mW	CSA TUV UL	Ball	5 V	2 Wire Leads	2350 RPM	80 mm	80 mm	0.09 in H2O	22.4 Pa	Tubeaxial
Sanyo Denki America Inc. 109R0805F4D01	0.25 A	Plastic	5.5 V	4.5 V	Plastic	25 mm	26 dB	0.91 mł/min	32.5 CFM	-20 ░C	70 °C	110.22 g	0.243 lb	1.25 W	CSA TUV UL	Ball	5 V	3 Wire Leads	2600 RPM	80 mm	80 mm	0.114 in H2O	28.4 Pa	Tubeaxial	Locked Rotor Sensor
Sanyo Denki America Inc. 109R0805M401	0.17 A	Plastic	5.5 V	4.5 V	Plastic	25 mm	23 dB(A)	0.82 m³/min	29.3 CFM	-20 ░C	70 °C	110.22 g	0.243 lb	850 mW	CSA TUV UL	Ball	5 V	3 Wire Leads	2350 RPM	80 mm	80 mm	0.09 in H2O	22.4 Pa	Tubeaxial	Locked Rotor Protection Speed Sensor (Tach)
