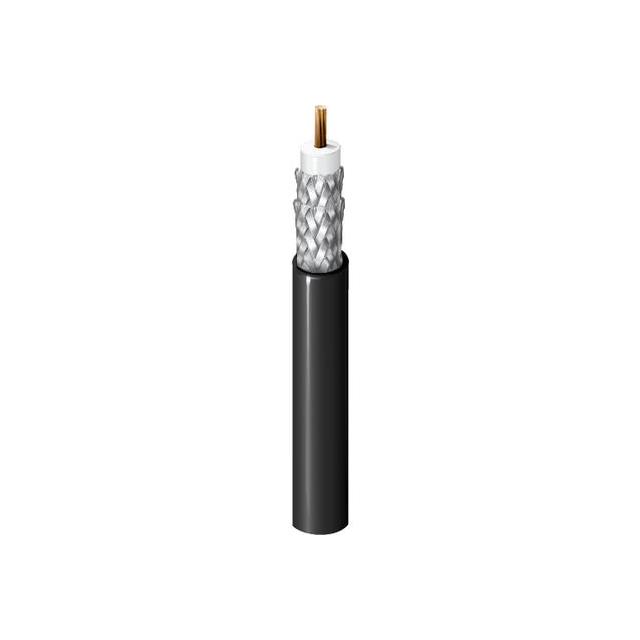

1694F Series
Manufacturer: Belden Inc.
Beta
⌘K
#19 GIFHDLDPE DBLB FRPVC
| Part | VoP, Velocity of Propagation | Operating Temperature [Max] | Operating Temperature [Min] | Shield Material | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Shield Coverage | Conductor Material | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Group | Length [x] | Length [x] | Jacket (Insulation) Material | Shield Type | Jacket Color | Wire Gauge | Conductor Strand | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 80 | 75 ░C | -35 °C | Copper Tinned | 0.18 in | 4.57 mm | 95 % | Copper Bare | Coaxial | 7.01 mm | 0.276 in | RG-6 | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) | Double Braid | Violet | 19 AWG | 7 Strands 27 AWG | Video |
 Belden Inc. | 80 | 75 ░C | -35 °C | Copper Tinned | 0.18 in | 4.57 mm | 95 % | Copper Bare | Coaxial | 7.01 mm | 0.276 in | RG-6 | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) | Double Braid | Black | 19 AWG | 7 Strands 27 AWG | Video |
 Belden Inc. | 80 | 75 ░C | -35 °C | Copper Tinned | 0.18 in | 4.57 mm | 95 % | Copper Bare | Coaxial | 7.01 mm | 0.276 in | RG-6 | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) | Double Braid | White | 19 AWG | 7 Strands 27 AWG | Video |
Belden Inc. | 80 | 75 ░C | -35 °C | Copper Tinned | 0.18 in | 4.57 mm | 95 % | Copper Bare | Coaxial | 7.01 mm | 0.276 in | RG-6 | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) | Double Braid | Green | 19 AWG | 7 Strands 27 AWG | Video |
 Belden Inc. | 80 | 75 ░C | -35 °C | Copper Tinned | 0.18 in | 4.57 mm | 95 % | Copper Bare | Coaxial | 7.01 mm | 0.276 in | RG-6 | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) | Double Braid | Yellow | 19 AWG | 7 Strands 27 AWG | Video |
