CJS-1200 Series

Catalog

SLIDE SWITCH, SPDT, ON-ON, SURFACE MOUNT, CJS SERIES, 100 MA

Part	Electrical Life	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Circuit	Mounting Type	Termination Style	Features	Current Rating (Amps)	Contact Material	Actuator Level
Nidec Components Corporation CJS-1200B	200 Cycles	Flush Slide (Standard)	85 °C	-40 C	Gold	SPDT	Surface Mount	Gull Wing	Tape Seal	100 mA	Copper Alloy	Flush

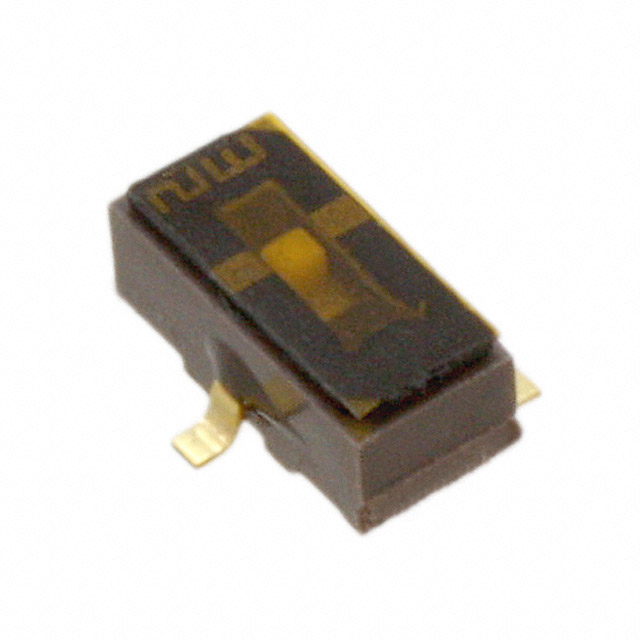

Nidec Components Corporation CJS-1200TB	200 Cycles	Flush Slide (Standard)	85 °C	-40 C	Gold	SPDT	Surface Mount	Gull Wing	Tape Seal	100 mA	Copper Alloy	Flush

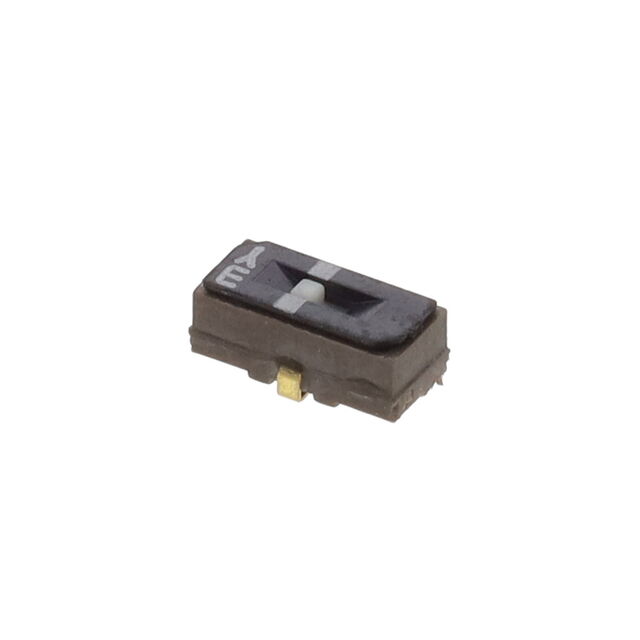

Nidec Components Corporation CJS-1200A	200 Cycles	Flush Slide (Standard)	85 °C	-40 C	Gold	SPDT	Surface Mount	J Lead	Tape Seal	100 mA	Copper Alloy	Flush

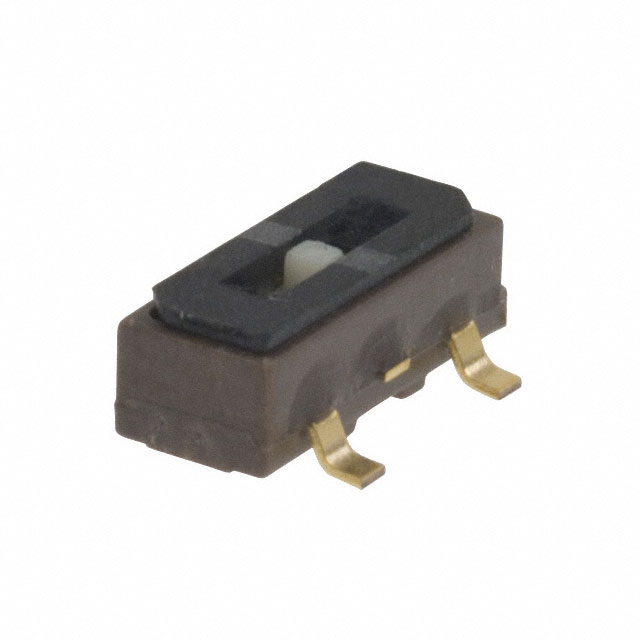

Nidec Components Corporation CJS-1200TB1	200 Cycles	Flush Slide (Standard)	85 °C	-40 C	Gold	SPDT	Surface Mount	Gull Wing		100 mA	Copper Alloy	Flush
Nidec Components Corporation CJS-1200B1	200 Cycles	Flush Slide (Standard)	85 °C	-40 C	Gold	SPDT	Surface Mount	Gull Wing		100 mA	Copper Alloy	Flush
Nidec Components Corporation CJS-1200TA	200 Cycles	Flush Slide (Standard)	85 °C	-40 C	Gold	SPDT	Surface Mount	J Lead	Tape Seal	100 mA	Copper Alloy	Flush
Nidec Components Corporation CJS-1200TA1	200 Cycles	Flush Slide (Standard)	85 °C	-40 C	Gold	SPDT	Surface Mount	J Lead		100 mA	Copper Alloy	Flush
Nidec Components Corporation CJS-1200A1	200 Cycles	Flush Slide (Standard)	85 °C	-40 C	Gold	SPDT	Surface Mount	J Lead		100 mA	Copper Alloy	Flush
