6192-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Tail Diameter [diameter]	Tail Diameter [diameter]	Termination	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Socket Depth	Socket Depth	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Tail Type	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Finish	Flange Diameter [diameter]	Flange Diameter [diameter]
Mill-Max Manufacturing Corp. 6192-0-15-80-21-27-04-0	-55 C	125 °C	0.026 in	0.66 mm	Press-Fit	30 Áin	0.76 Ám	Beryllium Copper	0.031 in	0.79 mm	0.275 in	6.99 mm	3.43 mm	0.135 in	0.38 mm	0.022 in	0.015 "	0.56 mm	Standard Tail	0.032 in	0.81 mm	Gold
Mill-Max Manufacturing Corp. 6192-0-15-01-21-02-04-0	-55 C	125 °C	0.025 in	0.64 mm	Press-Fit	100 µin	2.54 µm	Beryllium Copper	0.031 in	0.79 mm	0.275 in	6.99 mm	3.43 mm	0.135 in	0.38 mm	0.022 in	0.015 "	0.56 mm	Standard Tail	0.032 in	0.81 mm	Tin-Lead	0.041 in	1.04 mm
Mill-Max Manufacturing Corp. 6192-0-15-80-21-14-04-0	-55 C	125 °C	0.026 in	0.66 mm	Press-Fit	10 Áin	0.25 Ám	Beryllium Copper	0.031 in	0.79 mm	0.275 in	6.99 mm	3.43 mm	0.135 in	0.38 mm	0.022 in	0.015 "	0.56 mm	Standard Tail	0.032 in	0.81 mm	Gold
Mill-Max Manufacturing Corp. 6192-0-15-01-21-14-04-0	-55 C	125 °C	0.025 in	0.64 mm	Press-Fit	10 Áin	0.25 Ám	Beryllium Copper	0.031 in	0.79 mm	0.275 in	6.99 mm	3.43 mm	0.135 in	0.38 mm	0.022 in	0.015 "	0.56 mm	Standard Tail	0.032 in	0.81 mm	Gold	0.041 in	1.04 mm
Mill-Max Manufacturing Corp. 6192-0-15-15-21-14-04-0	-55 C	125 °C	0.026 in	0.66 mm	Press-Fit	10 Áin	0.25 Ám	Beryllium Copper	0.031 in	0.79 mm	0.275 in	6.99 mm	3.43 mm	0.135 in	0.38 mm	0.022 in	0.015 "	0.56 mm	Standard Tail	0.032 in	0.81 mm	Gold

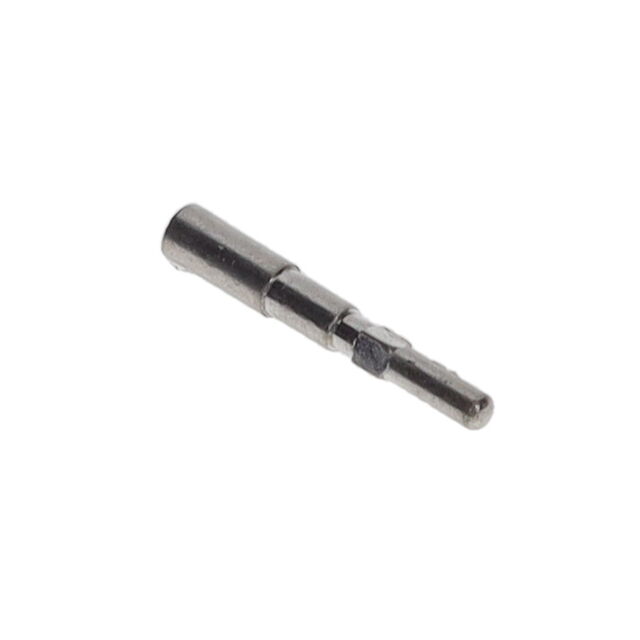

Mill-Max Manufacturing Corp. 6192-0-15-01-21-27-04-0	-55 C	125 °C	0.025 in	0.64 mm	Press-Fit	30 Áin	0.76 Ám	Beryllium Copper	0.031 in	0.79 mm	0.275 in	6.99 mm	3.43 mm	0.135 in	0.38 mm	0.022 in	0.015 "	0.56 mm	Standard Tail	0.032 in	0.81 mm	Gold	0.041 in	1.04 mm
Mill-Max Manufacturing Corp. 6192-0-15-80-21-84-04-0	-55 C	125 °C	0.026 in	0.66 mm	Press-Fit	100 µin	2.54 µm	Beryllium Copper	0.031 in	0.79 mm	0.275 in	6.99 mm	3.43 mm	0.135 in	0.38 mm	0.022 in	0.015 "	0.56 mm	Standard Tail	0.032 in	0.81 mm	Tin
