R12863 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
BMA / THREAD-IN PLUG RECEPTACLE
| Part | Mating Cycles | Body Finish | Voltage Rating | Dielectric Material | Body Material | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Housing Color | Mounting Type | Fastening Type | Impedance | Connector Style | Contact Termination | Center Contact Material | Number of Ports | Features | Shield Termination | Frequency - Max [Max] | Connector Type | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

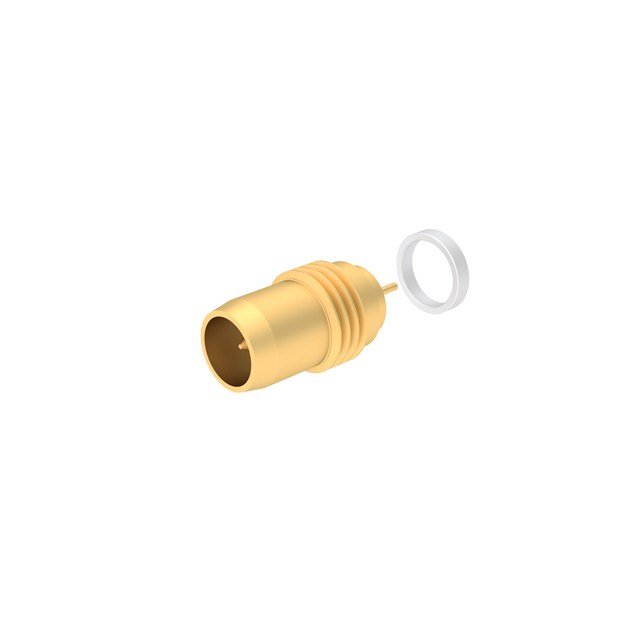

 Radiall USA, Inc. | 1000 | Gold | 500 V | Polytetrafluoroethylene (PTFE) | Stainless Steel | Gold | -65 ░C | 125 °C | Gold | Through Hole | Snap-On | 50 Ohms | BMA | Solder | Beryllium Copper | 1 | Extended Insulation Hermetically Sealed | Solder | 22 GHz | Receptacle Male Pin | |

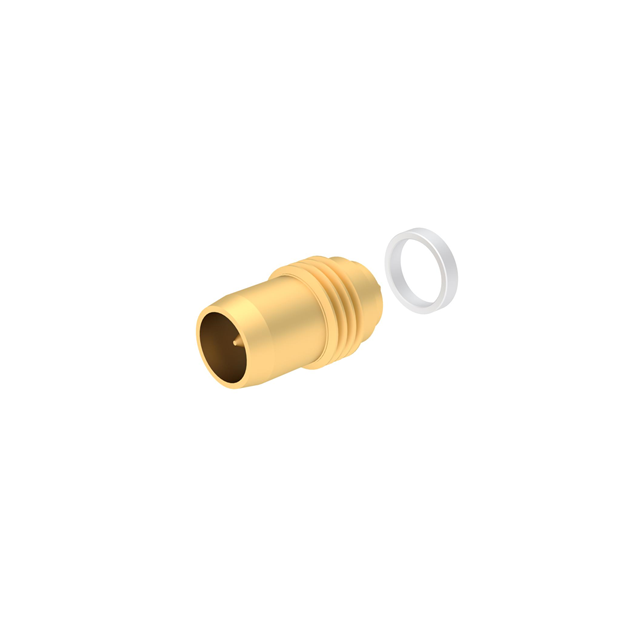

 Radiall USA, Inc. | 1000 | Gold | 500 V | Polytetrafluoroethylene (PTFE) | Stainless Steel | Gold | -65 ░C | 125 °C | Gold | Through Hole | Snap-On | 50 Ohms | BMA | Solder | Beryllium Copper | 1 | Extended Insulation Hermetically Sealed | Solder | 22 GHz | Receptacle Male Pin | |

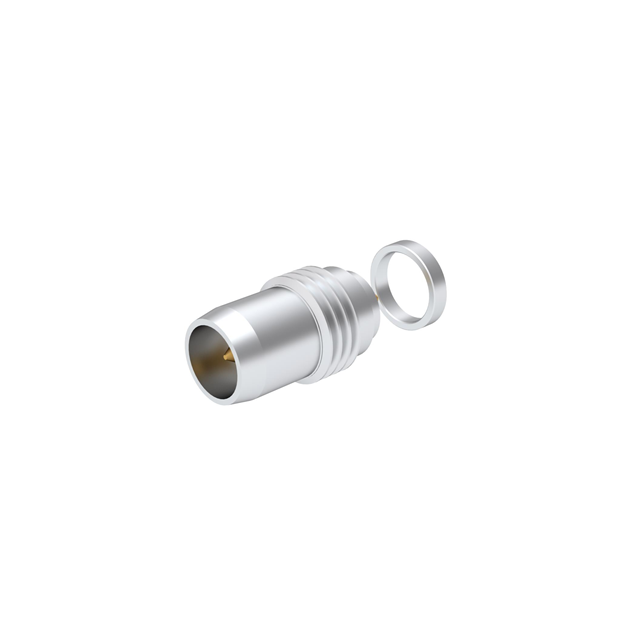

 Radiall USA, Inc. | 1000 | 500 V | Polytetrafluoroethylene (PTFE) | Stainless Steel | Gold | -65 ░C | 125 °C | Silver | Through Hole | Snap-On | 50 Ohms | BMA | Solder | Beryllium Copper | 1 | Extended Insulation Hermetically Sealed | Solder | 22 GHz | Receptacle Male Pin | ||

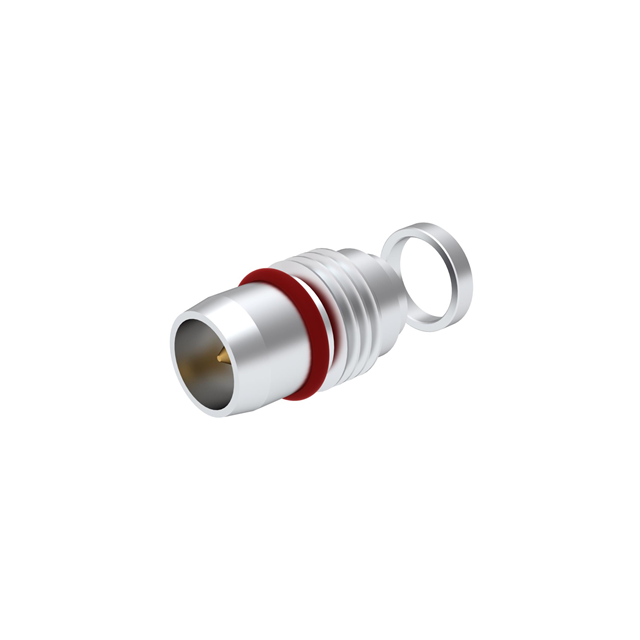

 Radiall USA, Inc. | 1000 | 500 V | Polytetrafluoroethylene (PTFE) | Stainless Steel | Gold | -65 ░C | 125 °C | Silver | Through Hole | Snap-On | 50 Ohms | BMA | Solder | Beryllium Copper | 1 | Solder | 22 GHz | Receptacle Male Pin | IP54 - Dust Protected |
