1478075 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

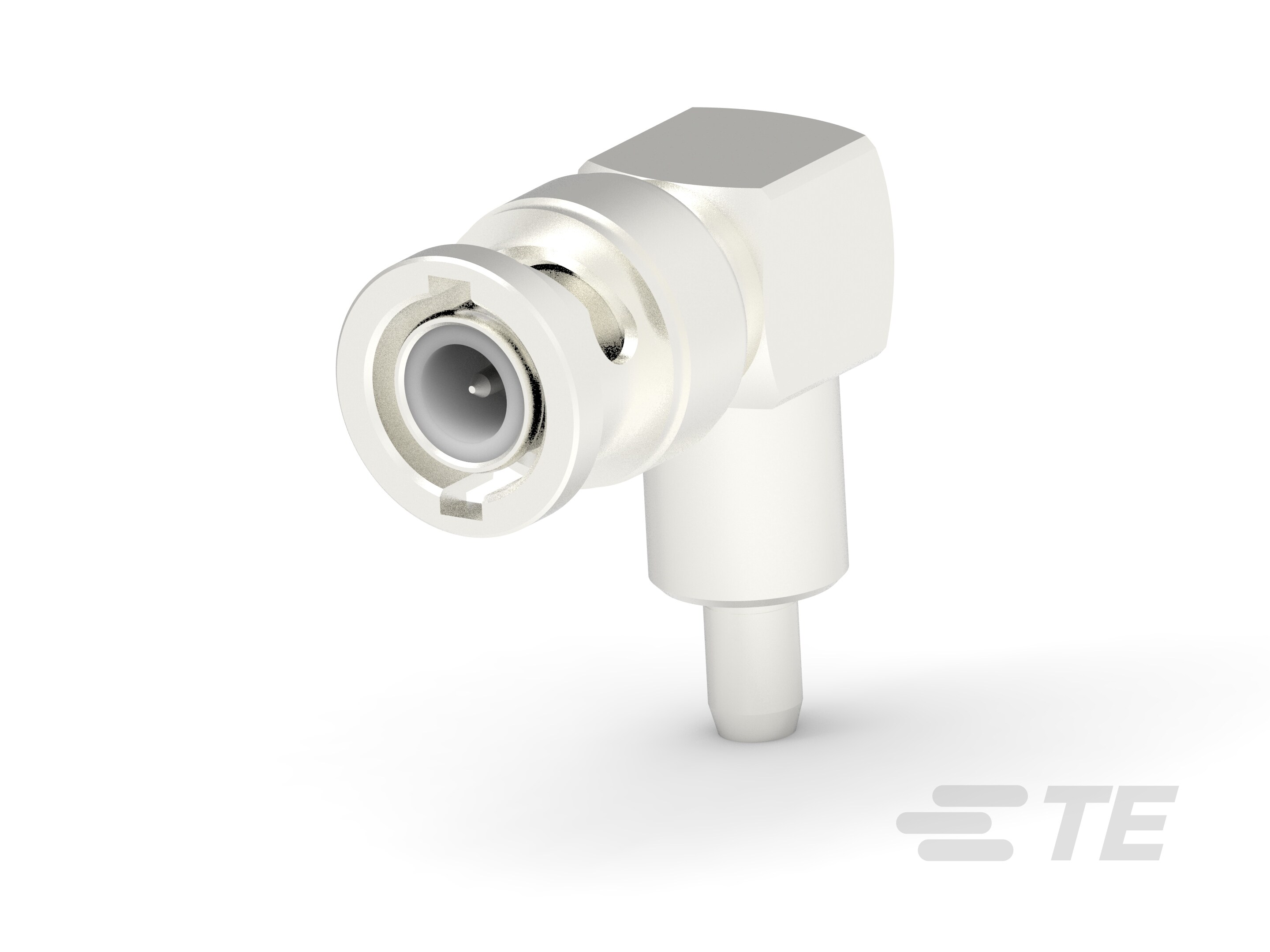

RF / COAXIAL CONNECTOR, BNC COAXIAL, RIGHT ANGLE PLUG, CRIMP, 50 OHM, RG58, ESSEX 621-715, BRASS
| Part | Voltage Rating | Mounting Type | Number of Ports | Mating Cycles | Impedance | Insertion Loss | Body Material | Connector Type | Housing Color | Dielectric Material | Contact Termination | Center Contact Plating | Includes | Fastening Type | Center Contact Material | Body Finish | Frequency - Max [Max] | Shield Termination | Cable Group | Connector Style | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 500 V | Free Hanging (In-Line) Right Angle | 1 | 500 | 50 Ohms | 0.3 dB | Brass | Male Pin Plug | Silver | Polytetrafluoroethylene (PTFE) | Solder | Silver | 1 Connector 1 Contact 1 Ferrule | Bayonet Lock | Brass | Silver | 4 GHz | Crimp | 141A RG-58C | BNC | -65 ░C | 165 °C |
