AA10X Series

Wall Mount AC Adapters 10W 5V 2A AU Micro B DC output

Manufacturer: Phihong USA

Catalog

Wall Mount AC Adapters 10W 5V 2A AU Micro B DC output

Catalog

Wall Mount AC Adapters 10W 5V 2A AU Micro B DC output

Part	Power (Watts)	Voltage - Input [Max]	Voltage - Input [Min]	Current - Output (Max) [Max]	Form	No Load Power Consumption	Voltage - Output	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Input Connector	Region Utilized	Output Connector	Output Connector [diameter]	Output Connector [x]	Cord Length	Cord Length	Efficiency	Standard Number	Operating Temperature [Max]	Operating Temperature [Min]	Polarization	Approval Agency	Input Type	Applications

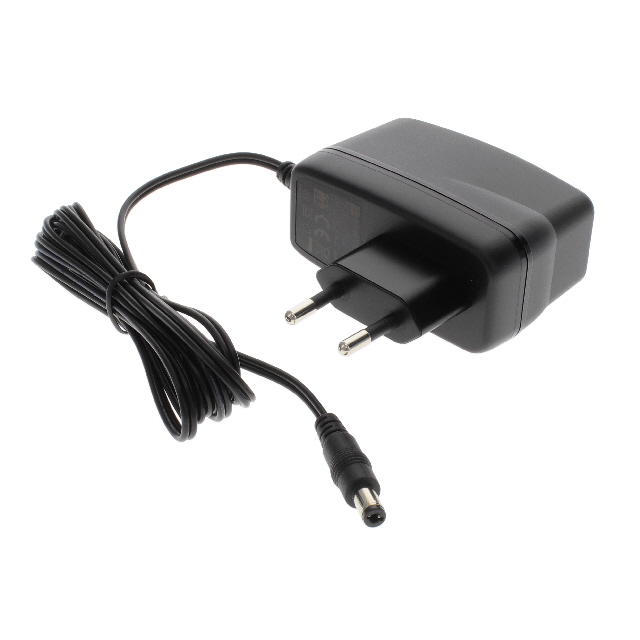

Phihong USA AA10E-050A-R	10 W	264 VAC	90 VAC	2 A	Wall Mount	75 mW	5 V	2.8 in	64.7 mm	71.2 mm	2.55 in	34 mm	1.34 in	CEE 7/16	Europe	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	1.5 m	59 in	Level VI	60950-1	40 °C	0 °C	Positive Center	IEC	Fixed Blade	ITE (Commercial)

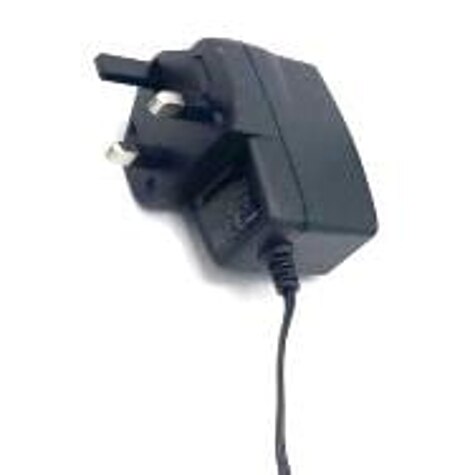

Phihong USA AA10K-050A(M)-R	10 W	264 VAC	90 VAC	2 A	Wall Mount (Class I)	75 mW	5 V	2.8 in	55.5 mm	71.2 mm	2.19 "	34 mm	1.34 in	BS 1363	United Kingdom	USB Micro			1.5 m	59 in	Level VI	60950-1	40 °C	0 °C		IEC	Fixed Blade	ITE (Commercial)

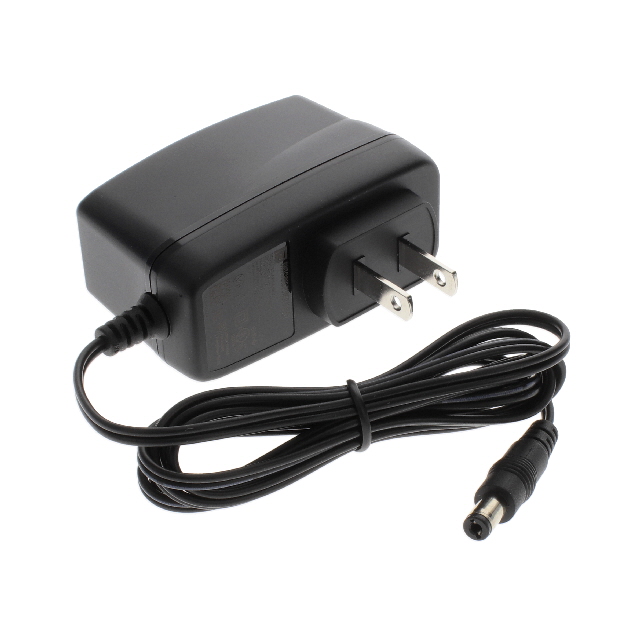

Phihong USA AA10A-050A-R	10 W	264 VAC	90 VAC	2 A	Wall Mount	75 mW	5 V	2.8 in	52.5 mm	71.2 mm	2.07 "	34 mm	1.34 in	NEMA 1-15P	North America	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	1.5 m	59 in	Level VI	60950-1	40 °C	0 °C	Positive Center	cULus	Fixed Blade	ITE (Commercial)

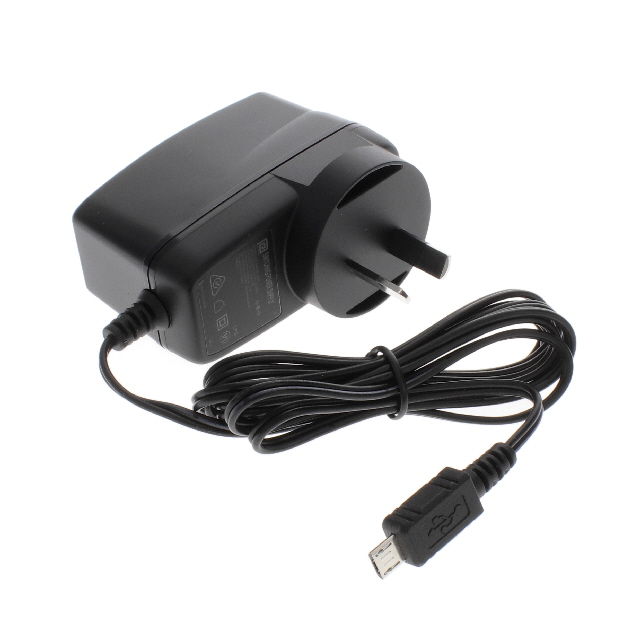

Phihong USA AA10S-050A(M)-R	10 W	264 VAC	90 VAC	2 A	Wall Mount	75 mW	5 V	2.8 in	55 mm	71.2 mm	2.17 in	34 mm	1.34 in	AS 3112	Australia	USB Micro			1.5 m	59 in	Level VI	60950-1 62368-1	40 °C	0 °C		AS/NZS	Fixed Blade	ITE (Commercial)

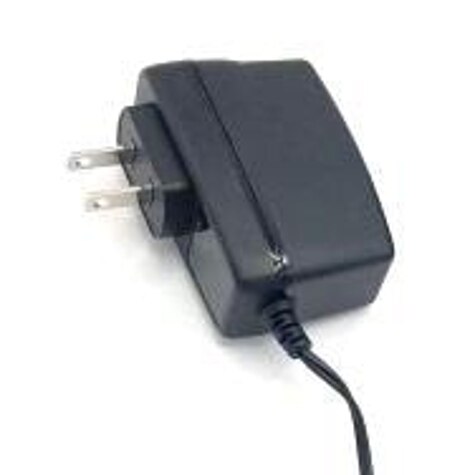

Phihong USA AA10A-050A(M)-R	10 W	264 VAC	90 VAC	2 A	Wall Mount	75 mW	5 V	2.8 in	52.5 mm	71.2 mm	2.07 "	34 mm	1.34 in	NEMA 1-15P	North America	USB Micro			1.5 m	59 in	Level VI	60950-1	40 °C	0 °C		cULus	Fixed Blade	ITE (Commercial)

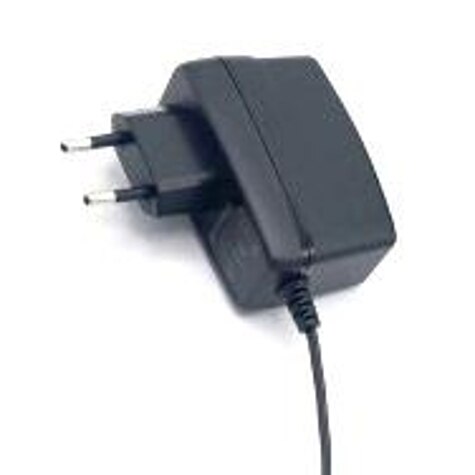

Phihong USA AA10E-050A(M)-R	10 W	264 VAC	90 VAC	2 A	Wall Mount	75 mW	5 V	2.8 in	64.7 mm	71.2 mm	2.55 in	34 mm	1.34 in	CEE 7/16	Europe	USB Micro			1.5 m	59 in	Level VI	60950-1	40 °C	0 °C		IEC	Fixed Blade	ITE (Commercial)

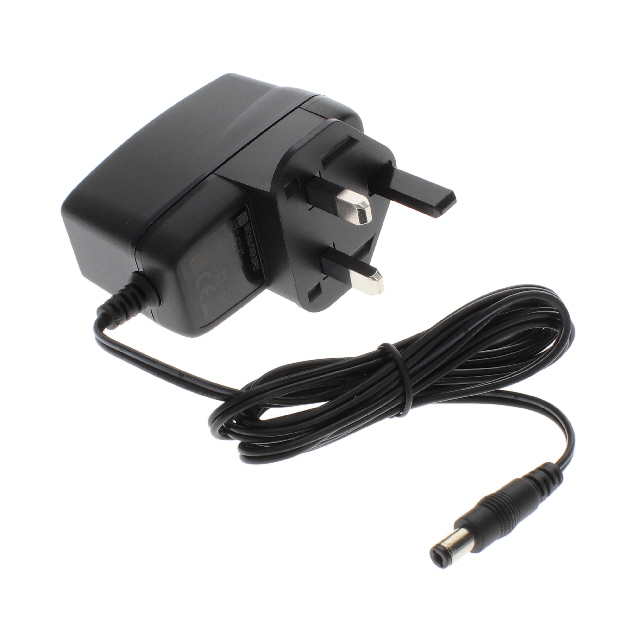

Phihong USA AA10K-050A-R	10 W	264 VAC	90 VAC	2 A	Wall Mount (Class I)	75 mW	5 V	2.8 in	55.5 mm	71.2 mm	2.19 "	34 mm	1.34 in	BS 1363	United Kingdom	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	1.5 m	59 in	Level VI	60950-1	40 °C	0 °C	Positive Center	IEC	Fixed Blade	ITE (Commercial)
