1300 Series

Catalog

CONN RING CIRC 16-22AWG M5 CRIMP

Part	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Max]	Insulation Diameter [Min]	Material - Insulation	Color	Stud/Tab Size	Features	Insulation	Width - Outer Edges [x]	Width - Outer Edges [x]	Mounting Type	Thickness	Thickness	Termination	Terminal Type	Contact Material	Contact Finish	Length - Overall [x]	Length - Overall [x]	Wire Gauge [Min]	Wire Gauge [Max]	Insulation Diameter [Max]

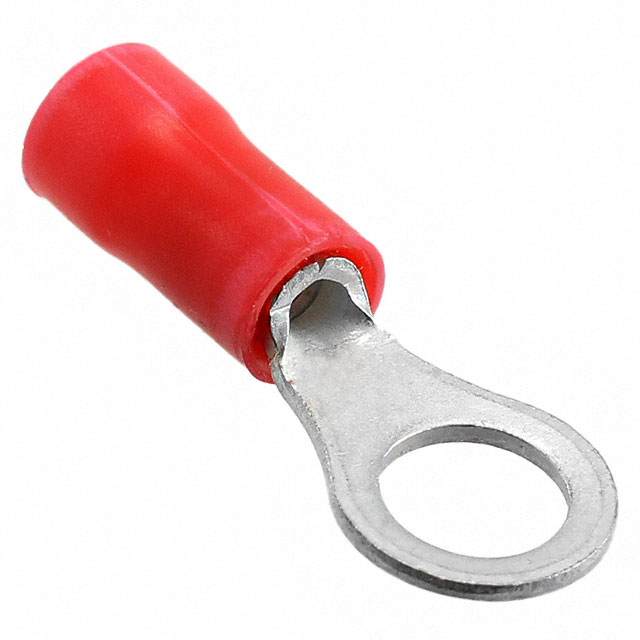

TE Connectivity AMP Connectors 130014	2.69 mm	0.14 in	3.56 mm	0.106 "	Poly-Vinyl Chloride (PVC)	Red	M5 Stud	Serrated Termination	Insulated	8 mm	0.315 in	Free Hanging (In-Line)	0.81 mm	0.032 in	Crimp	Circular	Copper	Tin	21.79 mm	0.858 in	16 AWG	22 AWG
TE Connectivity AMP Connectors 130044	2.67 mm	0.14 in		0.105 in	Nylon Polyamide (PA)	Red	M5 Stud		Insulated	11.91 mm	0.469 "	Free Hanging (In-Line)	0.79 mm	0.031 in	Crimp	Circular	Copper	Tin	27.5 mm	1.083 "	16 AWG	22 AWG	3.56 mm
