630W21 Series
Manufacturer: EDAC Inc.
Beta
⌘K

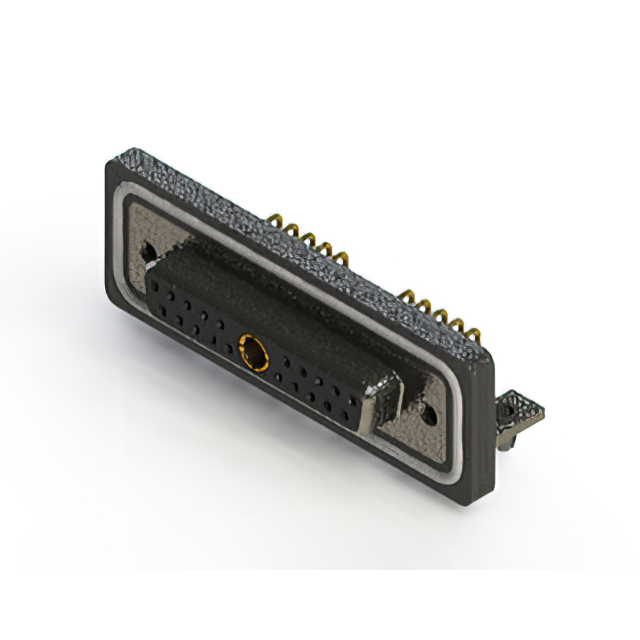

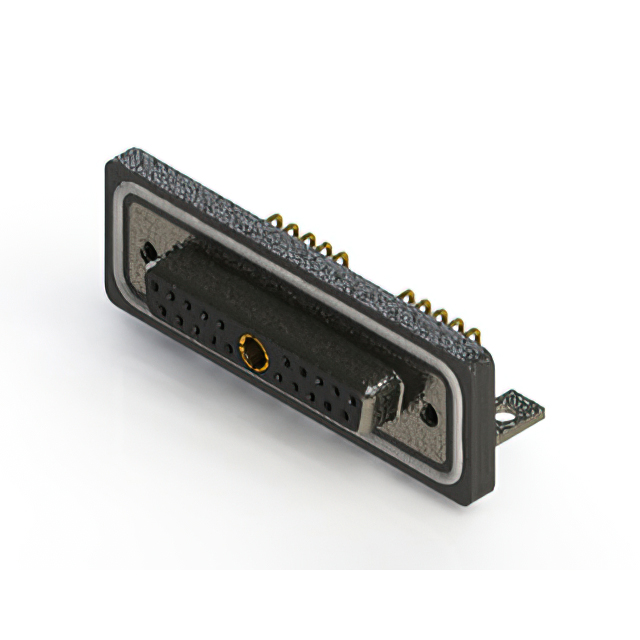

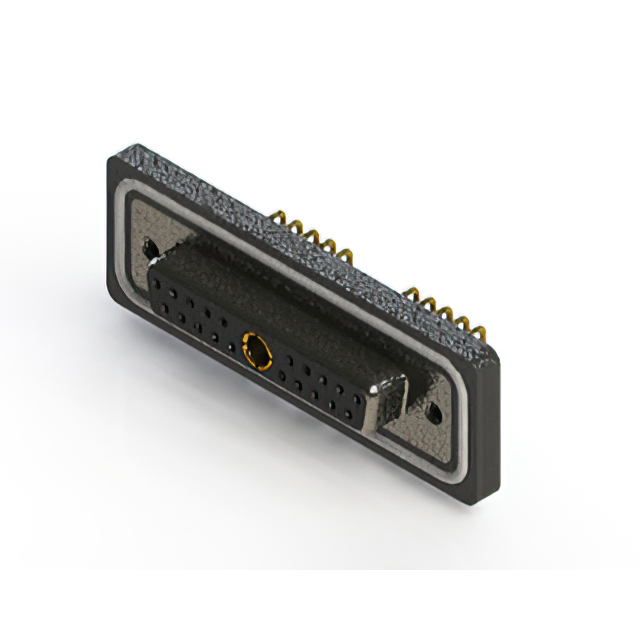

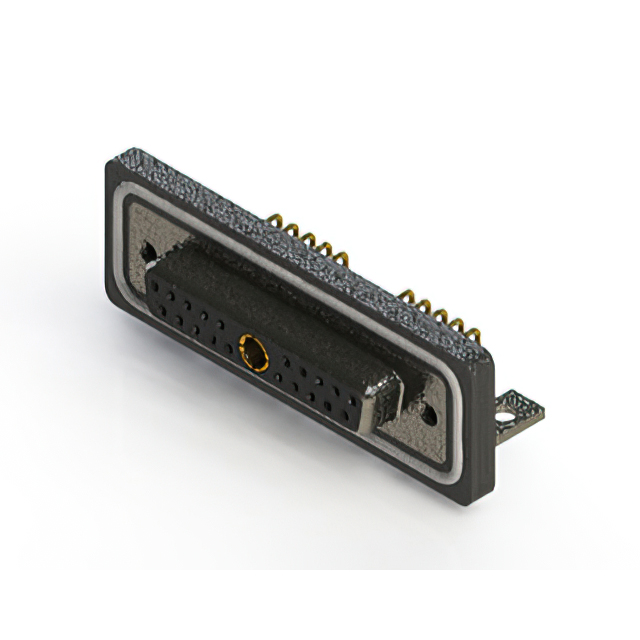

CONN D-SUB RCPT 21POS R/A SLDR
| Part | Dielectric Material | Color | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Number of Rows [custom] | Contact Type | Material Flammability Rating | Shell Material, Finish | Ingress Protection | Contact Finish Thickness | Mounting Type | Connector Type | Shell Size, Connector Layout | Shell Size, Connector Layout | Current Rating (Amps) | Features | Connector Style | Contact Finish | Termination | Number of Positions | Flange Feature | Flange Feature | Contact Finish Thickness | Contact Finish Thickness | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | Black | 125 VDC | -55 C | 125 °C | Copper Alloy | 2 | Signal and Power | UL94 V-0 | Nickel Plated Steel | IP67 - Dust Tight Waterproof | Flash | Panel Mount Right Angle Through Hole | Receptacle Female Sockets | 21W1 B DB | 3 | 10A 5A | Shielded | Combo D-Sub | Gold | Solder | 21 | Housing/Shell | 4-40 | |||
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | Black | 125 VDC | -55 C | 125 °C | Copper Alloy | 2 | Signal and Power | UL94 V-0 | Nickel Plated Steel | IP67 - Dust Tight Waterproof | Panel Mount Right Angle Through Hole | Receptacle Female Sockets | 21W1 B DB | 3 | Shielded | Combo D-Sub | Gold | Solder | 21 | Housing/Shell (M3) | 30 Áin | 0.76 Ám | 5 A 30 A | |||
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | Black | 125 VDC | -55 C | 125 °C | Copper Alloy | 2 | Signal and Power | UL94 V-0 | Nickel Plated Steel | IP67 - Dust Tight Waterproof | Panel Mount Right Angle Through Hole | Receptacle Female Sockets | 21W1 B DB | 3 | Board Lock Mounting Brackets Shielded | Combo D-Sub | Gold | Solder | 21 | Housing/Shell | 4-40 | 30 Áin | 0.76 Ám | 5 A 30 A | ||
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | Black | 125 VDC | -55 C | 125 °C | Copper Alloy | 2 | Signal and Power | UL94 V-0 | Nickel Plated Steel | IP67 - Dust Tight Waterproof | Panel Mount Right Angle Through Hole | Receptacle Female Sockets | 21W1 B DB | 3 | 10A 5A | Shielded | Combo D-Sub | Gold | Solder | 21 | Housing/Shell | 4-40 | 15 µin | 0.38 µm | ||
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | Black | 125 VDC | -55 C | 125 °C | Copper Alloy | 2 | Signal and Power | UL94 V-0 | Nickel Plated Steel | IP67 - Dust Tight Waterproof | Panel Mount Right Angle Through Hole | Receptacle Female Sockets | 21W1 B DB | 3 | 20A 5A | Shielded | Combo D-Sub | Gold | Solder | 21 | Housing/Shell (M3) | 30 Áin | 0.76 Ám | |||
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | Black | 125 VDC | -55 C | 125 °C | Copper Alloy | 2 | Signal and Power | UL94 V-0 | Nickel Plated Steel | IP67 - Dust Tight Waterproof | Panel Mount Right Angle Through Hole | Receptacle Female Sockets | 21W1 B DB | 3 | 10A 5A | Board Lock Mounting Brackets Shielded | Combo D-Sub | Gold | Solder | 21 | Housing/Shell | 4-40 | 30 Áin | 0.76 Ám | ||
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | Black | 125 VDC | -55 C | 125 °C | Copper Alloy | 2 | Signal and Power | UL94 V-0 | Nickel Plated Steel | IP67 - Dust Tight Waterproof | Panel Mount Right Angle Through Hole | Receptacle Female Sockets | 21W1 B DB | 3 | 20A 5A | Shielded | Combo D-Sub | Gold | Solder | 21 | Housing/Shell | 4-40 | 15 µin | 0.38 µm | ||
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | Black | 125 VDC | -55 C | 125 °C | Copper Alloy | 2 | Signal and Power | UL94 V-0 | Nickel Plated Steel | IP67 - Dust Tight Waterproof | Panel Mount Right Angle Through Hole | Receptacle Female Sockets | 21W1 B DB | 3 | 10A 5A | Board Lock Mounting Brackets Shielded | Combo D-Sub | Gold | Solder | 21 | Housing/Shell | 4-40 | 15 µin | 0.38 µm | ||
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | Black | 125 VDC | -55 C | 125 °C | Copper Alloy | 2 | Signal and Power | UL94 V-0 | Nickel Plated Steel | IP67 - Dust Tight Waterproof | Panel Mount Right Angle Through Hole | Receptacle Female Sockets | 21W1 B DB | 3 | Board Lock Mounting Brackets Shielded | Combo D-Sub | Gold | Solder | 21 | Housing/Shell | 4-40 | 5 µin | 0.127 µm | 5 A 40 A | ||
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | Black | 125 VDC | -55 C | 125 °C | Copper Alloy | 2 | Signal and Power | UL94 V-0 | Nickel Plated Steel | IP67 - Dust Tight Waterproof | Right Angle Through Hole | Receptacle Female Sockets | 21W1 B DB | 3 | Mounting Brackets Shielded | Combo D-Sub | Gold | Solder | 21 | Housing/Shell (M3) | 15 µin | 0.38 µm | 5 A 30 A |
