178303 Series

Catalog

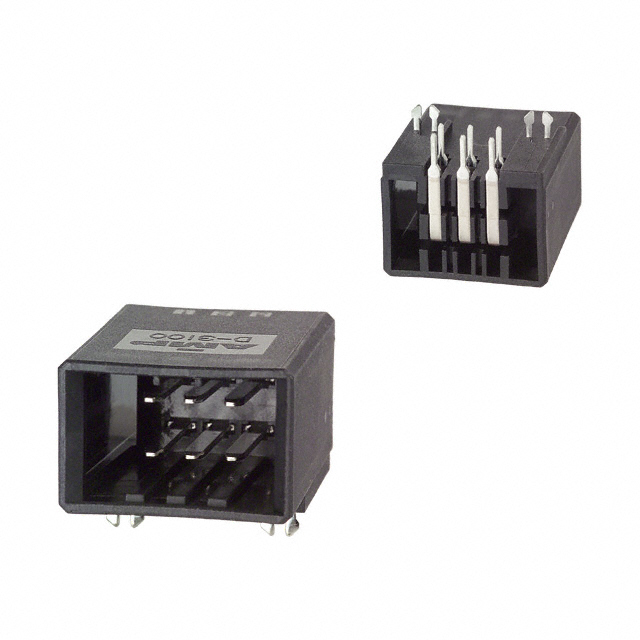

CONN HEADER R/A 6POS 3.81MM

Part	Voltage Rating	Shrouding	Insulation Color	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Post	Insulation Material	Applications	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Fastening Type	Connector Type	Contact Shape	Pitch - Mating	Pitch - Mating	Contact Material	Contact Type	Number of Positions	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions Loaded	Material Flammability Rating	Contact Finish - Mating	Style	Termination
TE Connectivity Raychem Cable Protection 178303-2	250 VDC	Shrouded - 4 Wall	Black	14.43 mm	0.568 in	15 µin	0.38 µm	5.08 mm	0.2 "	Tin	Glass Filled Polyester Thermoplastic	General Purpose Industrial	2	105 ░C	-55 °C	Through Hole Right Angle	Detent Lock	Header	Rectangular	3.81 mm	0.15 in	Copper Alloy	Tab	6	0.15 in	3.81 mm	All	UL94 V-0	Gold PdNi +Gold	Board to Board Cable	Solder
TE Connectivity Raychem Cable Protection 178303-5	250 VDC	Shrouded - 4 Wall	Black	14.43 mm	0.568 in	78.7 µin	2 µm	5.08 mm	0.2 "	Tin	Glass Filled Polyester Thermoplastic	General Purpose Industrial	2	105 ░C	-55 °C	Through Hole Right Angle	Detent Lock	Header	Rectangular	3.81 mm	0.15 in	Copper Alloy	Tab	6	0.15 in	3.81 mm	All	UL94 V-0		Board to Board Cable	Solder
