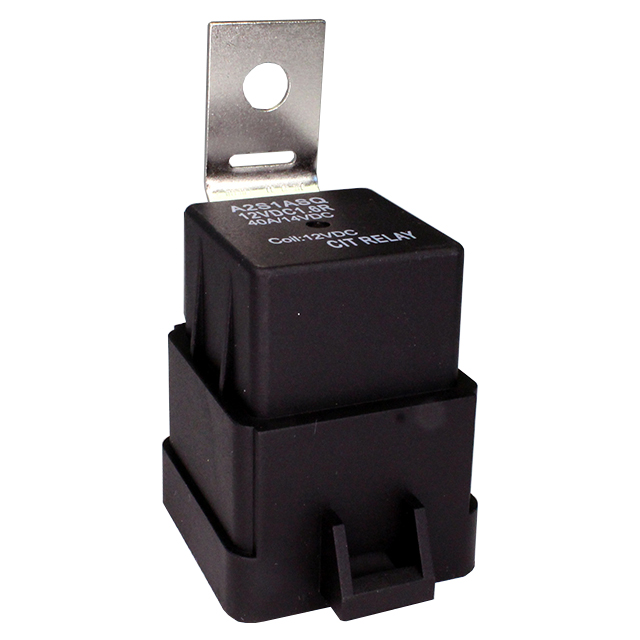

A2S1ASQ Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
RELAY AUTOMOTIVE SPST 40A 12V
| Part | Coil Resistance | Contact Material | Coil Power | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Release Time | Mounting Type | Coil Voltage | Must Release Voltage | Contact Form | Coil Type | Coil Current | Must Operate Voltage | Features | Switching Voltage [Max] | Contact Rating (Current) | Operate Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 90 Ohms | Silver Tin Oxide (AgSnO) | 1.6 W | Quick Connect - 0.250" (6.3mm) | 125 °C | -40 C | 5 ms | Chassis Mount | 12 VDC | 1.2 VDC | SPST-NO (1 Form A) | Non Latching | 133.3 mA | 8.4 VDC | Resistor Sealed - Fully | 75 VDC | 40 A | 7 ms |
