MP6550 Series
Manufacturer: Monolithic Power Systems Inc.
Beta
⌘K
H-BRIDGE MOTOR DRIVER 1.8V TO 22V 12-PIN QFN T/R
| Part | Supplier Device Package | Applications | Function | Voltage - Supply [Max] | Voltage - Supply [Min] | Motor Type - Stepper | Technology | Interface | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Motor Type - AC, DC | Voltage - Load [Max] | Voltage - Load [Min] | Current - Output | Output Configuration |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

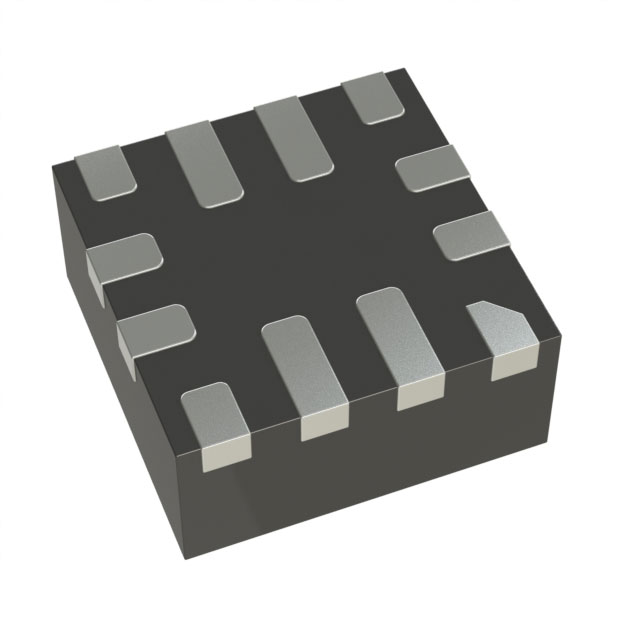

 Monolithic Power Systems Inc. | 12-QFN (2x2) | General Purpose | Driver - Fully Integrated Control and Power Stage | 22 V | 1.8 V | Unipolar | Power MOSFET | PWM | Surface Mount | -40 C | 125 °C | 12-VFQFN | Brushed DC | 22 V | 1.8 V | 2 A | Half Bridge (4) |
