748394 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

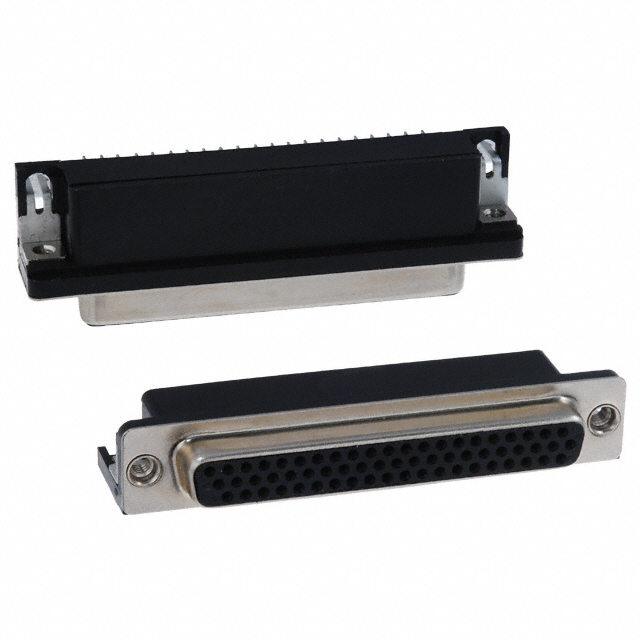

CONN D-SUB HD RCPT 62P R/A SLDR
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Color | Contact Material | Voltage Rating | Dielectric Material | Shell Material, Finish | Mounting Type | Number of Rows [custom] | Shell Size, Connector Layout | Shell Size, Connector Layout | Current Rating (Amps) | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Connector Style | Features | Flange Feature | Flange Feature | Material Flammability Rating | Contact Type | Contact Finish | Connector Type | Termination | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | -55 C | 105 ░C | Black | Phosphor Bronze | 125 VDC | Glass Filled Polybutylene Terephthalate (PBT) Polyester | Nickel Plated Steel | Right Angle Through Hole | 3 | C DC | 4 | 2 A | 62 | 30 Áin | 0.76 Ám | D-Sub High Density | Board Lock | Housing/Shell | 4-40 | UL94 V-0 | Signal | Gold | Receptacle Female Sockets | Solder | |
TE Connectivity AMP Connectors | -55 C | 105 ░C | Black | Phosphor Bronze | 125 VDC | Glass Filled Polybutylene Terephthalate (PBT) Polyester | Nickel Plated Steel | Right Angle Through Hole | 3 | C DC | 4 | 2 A | 62 | 30 Áin | 0.76 Ám | D-Sub High Density | Board Lock | 4-40 Mating Side Female Screwlock | UL94 V-0 | Signal | Gold | Receptacle Female Sockets | Solder | ||
TE Connectivity AMP Connectors | -55 C | 105 ░C | Black | Phosphor Bronze | 125 VDC | Glass Filled Polybutylene Terephthalate (PBT) Polyester | Nickel Plated Steel | Right Angle Through Hole | 3 | C DC | 4 | 2 A | 62 | D-Sub High Density | Board Lock | 4-40 Mating Side Female Screwlock | UL94 V-0 | Signal | Gold | Receptacle Female Sockets | Solder | Flash |
