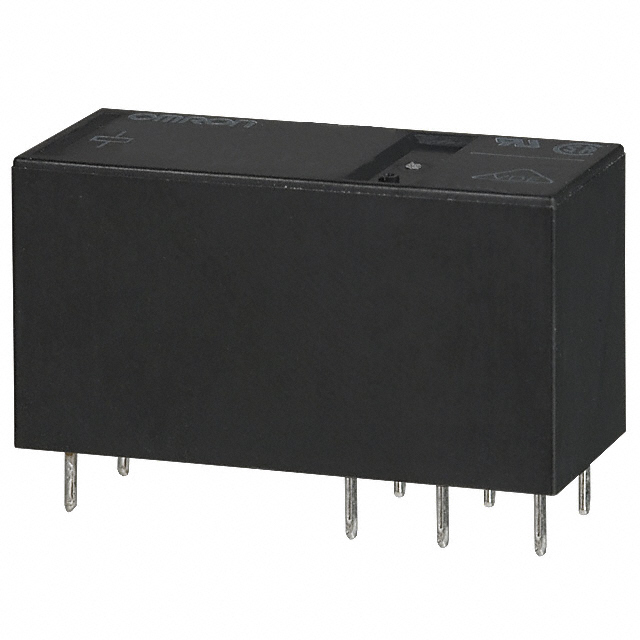

G5RL-1-E Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE SPDT 16A 240V
| Part | Approval Agency | Contact Material | Release Time | Coil Voltage | Seal Rating | Load - Max Switching | Contact Form | Operating Temperature [Min] | Operating Temperature [Max] | Coil Resistance | Coil Type | Coil Current | Contact Rating (Current) | Operate Time | Switching Voltage | Must Operate Voltage | Termination Style | Relay Type | Must Release Voltage | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | CQC CSA cURus UR VDE | Silver Alloy | 5 ms | 240 VAC | Sealed - Flux Protection | 384 W 4000 VA | SPDT (1 Form C) | -40 °C | 70 °C | 47.6 kOhms | Non Latching | 31.3 mA | 16 A | 15 ms | 24 VDC 250 VAC | 180 VAC | PC Pin | General Purpose | 36 VAC | Through Hole |
Omron Electronics Inc-EMC Div | CQC CSA cURus UR VDE | Silver Alloy | 5 ms | 48 VDC | Sealed - Flux Protection | 384 W 4000 VA | SPDT (1 Form C) | -40 °C | 85 °C | 5.36 kOhms | Non Latching | 9 mA | 16 A | 15 ms | 24 VDC 250 VAC | 33.6 VDC | PC Pin | General Purpose | 4.8 VDC | Through Hole |
Omron Electronics Inc-EMC Div | CQC CSA cURus UR VDE | Silver Alloy | 5 ms | 24 VAC | Sealed - Flux Protection | 384 W 4000 VA | SPDT (1 Form C) | -40 °C | 70 °C | 443 Ohms | Non Latching | 31.3 mA | 16 A | 15 ms | 24 VDC 250 VAC | 18 VAC | PC Pin | General Purpose | 3.6 VAC | Through Hole |
Omron Electronics Inc-EMC Div | CQC CSA cURus UR VDE | Silver Alloy | 5 ms | 24 VDC | Sealed - Flux Protection | 384 W 4000 VA | SPDT (1 Form C) | -40 °C | 85 °C | 1440 Ohms | Non Latching | 16.7 mA | 16 A | 15 ms | 24 VDC 250 VAC | 16.8 VDC | PC Pin | General Purpose | 2.4 VDC | Through Hole |
Omron Electronics Inc-EMC Div | CQC CSA cURus UR VDE | Silver Alloy | 5 ms | 5 VDC | Sealed - Flux Protection | 384 W 4000 VA | SPDT (1 Form C) | -40 °C | 85 °C | 62.5 Ohms | Non Latching | 80 mA | 16 A | 15 ms | 24 VDC 250 VAC | 3.5 VDC | PC Pin | General Purpose | 0.5 VDC | Through Hole |
Omron Electronics Inc-EMC Div | CQC CSA cURus UR VDE | Silver Alloy | 5 ms | 120 VAC | Sealed - Flux Protection | 384 W 4000 VA | SPDT (1 Form C) | -40 °C | 70 °C | 11.6 kOhms | Non Latching | 6.3 mA | 16 A | 15 ms | 24 VDC 250 VAC | 90 VAC | PC Pin | General Purpose | 18 VAC | Through Hole |
Omron Electronics Inc-EMC Div | CQC CSA cURus UR VDE | Silver Alloy | 5 ms | 12 VDC | Sealed - Flux Protection | 384 W 4000 VA | SPDT (1 Form C) | -40 °C | 85 °C | 360 Ohms | Non Latching | 33.3 mA | 16 A | 15 ms | 24 VDC 250 VAC | 8.4 VDC | PC Pin | General Purpose | 1.2 VDC | Through Hole |
