C1300AA Series

Catalog

SWITCH ROCKER SPST 20A 250V

Part	Current Rating (Amps)	Color - Actuator/Cap	Switch Function	Voltage Rating - DC	Approval Agency	Termination Style	Voltage Rating - AC	Circuit	Actuator Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Actuator Marking	Mounting Type	Features
BULGIN LIMITED C1300AABBEN602A	16 A 20 A	Black	On-Off	24 V	CSA UL	Quick Connect - 0.250" (6.3mm)	250 V	SPST	Concave (Curved)	12.3 mm	27.3 mm	O -	Panel Mount Snap-In
BULGIN LIMITED C1300AABB-1091W	16 A 20 A	Black	On-Off	24 V	CSA UL	Quick Connect - 0.250" (6.3mm)	250 V	SPST	Concave (Curved)	12.3 mm	27.3 mm	O I	Panel Mount Snap-In

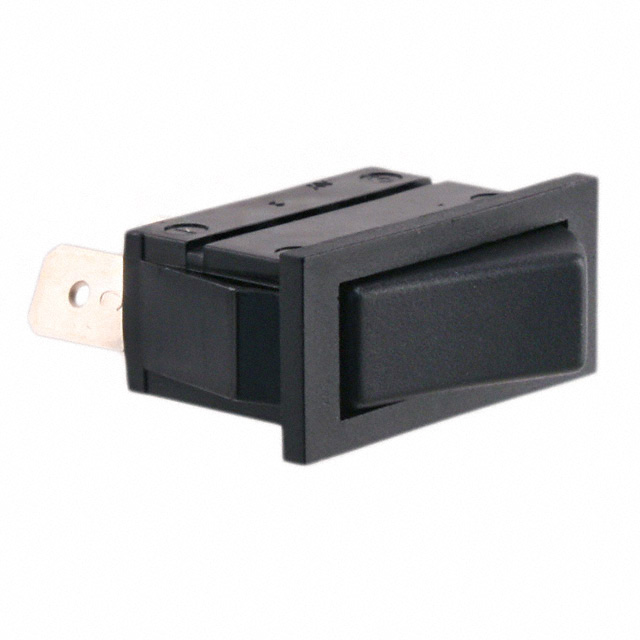

BULGIN LIMITED C1300AABB	16 A 20 A	Black	On-Off	24 V	CSA UL	Quick Connect - 0.250" (6.3mm)	250 V	SPST	Concave (Curved)	12.3 mm	27.3 mm	No Marking	Panel Mount Snap-In
BULGIN LIMITED C1300AABB-1102W	16 A 20 A	Black	On-Off	24 V	CSA UL	Quick Connect - 0.250" (6.3mm)	250 V	SPST	Concave (Curved)	12.3 mm	27.3 mm	OFF ON Vertical	Panel Mount Snap-In

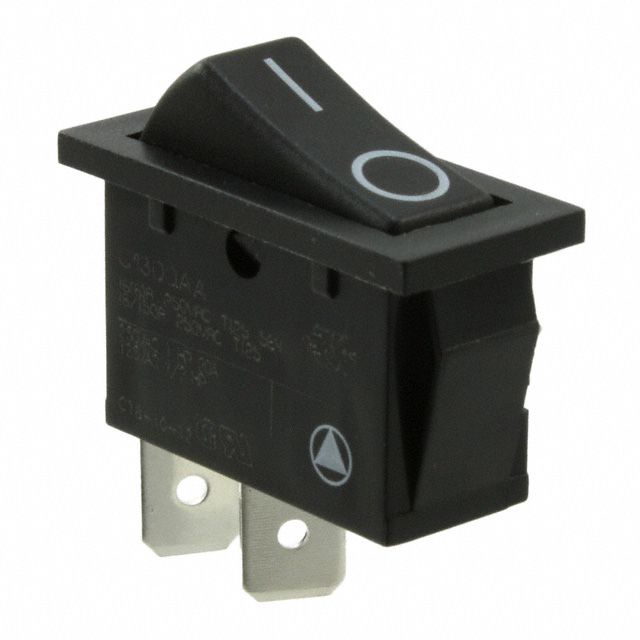

BULGIN LIMITED C1300AABB-602AW-B	16 A 20 A	Black	On-Off	24 V	CSA UL	Quick Connect - 0.250" (6.3mm)	250 V	SPST	Concave (Curved)	12.3 mm	27.3 mm	O -	Panel Mount Snap-In	Antimicrobial
