LHA-12 Series
Manufacturer: Adam Tech
Beta
⌘K
CONN HEADER VERT 12POS 2.54MM
| Part | Current Rating (Amps) | Fastening Type | Contact Shape | Contact Material | Shrouding | Contact Length - Post [x] | Contact Length - Post | Contact Finish - Post | Connector Type | Voltage Rating | Pitch - Mating | Pitch - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Color | Mounting Type | Number of Positions Loaded | Insulation Material | Overall Contact Length | Overall Contact Length | Material Flammability Rating | Termination | Contact Type | Insulation Height | Insulation Height | Style | Number of Positions | Number of Rows | Contact Length - Mating | Contact Length - Mating | Contact Length - Mating [x] | Insulation Height [z] | Insulation Height [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

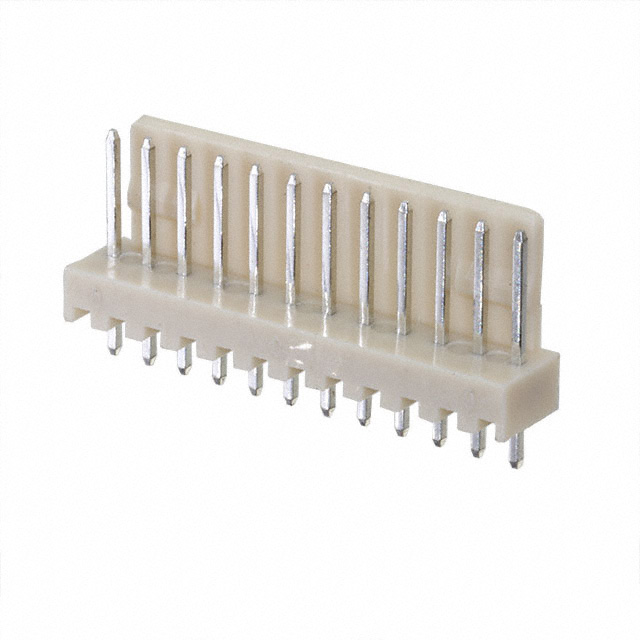

 Adam Tech | 3 A | Friction Lock | Square | Brass | Shrouded - 1 Wall | 0.134 " | 3.4 mm | Tin | Header | 250 VAC | 0.1 " | 2.54 mm | 85 °C | -25 °C | Ivory | Through Hole | All | Nylon Polyamide (PA) | 14.2 mm | 0.559 " | UL94 V-2 | Solder | Male Pin | 0.134 in | 3.4 mm | Board to Cable/Wire | 12 | 1 | 0.291 in | 7.4 mm | |||

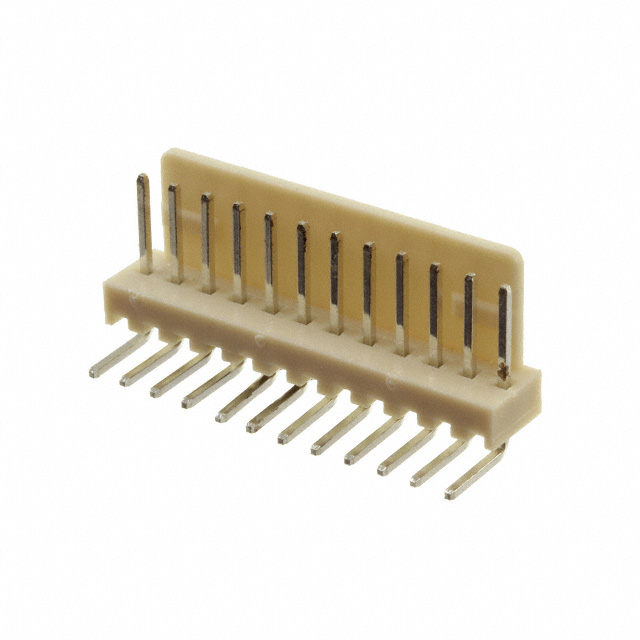

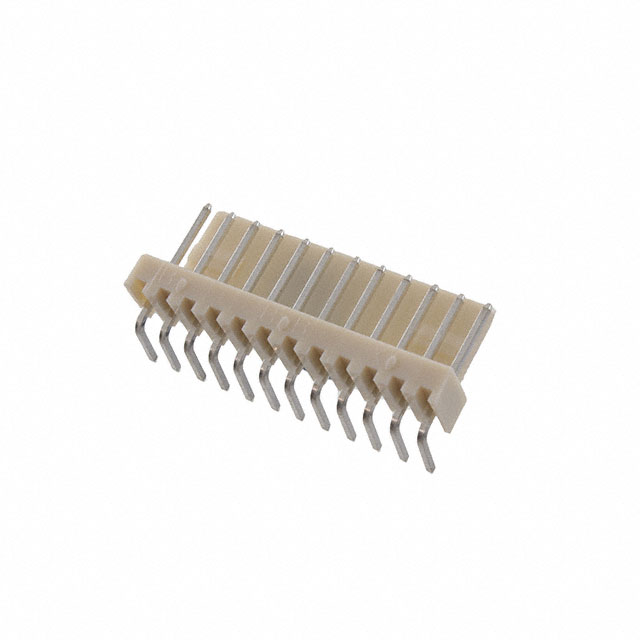

 Adam Tech | 3 A | Friction Lock | Square | Brass | Shrouded - 1 Wall | 0.134 " | 3.4 mm | Tin | Header | 250 VAC | 0.1 " | 2.54 mm | 105 ░C | -40 C | White | Right Angle Through Hole | All | Nylon 6/6 Polyamide (PA66) | UL94 V-2 | Solder | Male Pin | Board to Cable/Wire | 12 | 1 | 7 mm | 0.276 in | 0.228 " | 5.8 mm |
