WP56 Series

Catalog

LED RED DIFF T-1 3/4 BLINKNG T/H

Part	Size / Dimension [diameter]	Wavelength - Dominant	Viewing Angle	Wavelength - Peak	Configuration	Features	Mounting Type	Lens Size	Lens Size	Lens Color	Supplier Device Package	Lens Transparency	Millicandela Rating	Color	Lens Style	Package / Case	Height (Max) [Max] [z]
Kingbright WP56BID	5 mm	617 nm	60 °	627 nm	Standard	Flashing	Through Hole	5 mm	T-1 3/4	Red	T-1 3/4 BLINKING	Diffused	25 mcd	Red	Round with Domed Top	Radial	8.6 mm
Kingbright WP56BYD	5 mm	588 nm	60 °	590 nm	Standard	Flashing	Through Hole	5 mm	T-1 3/4	Yellow	T-1 3/4 BLINKING	Diffused	20 mcd	Yellow	Round with Domed Top	Radial	8.6 mm
Kingbright WP56BHD	5 mm	635 nm	60 °	700 nm	Standard	Flashing	Through Hole	5 mm	T-1 3/4	Red	T-1 3/4 BLINKING	Diffused	4 mcd	Red	Round with Domed Top	Radial	8.6 mm

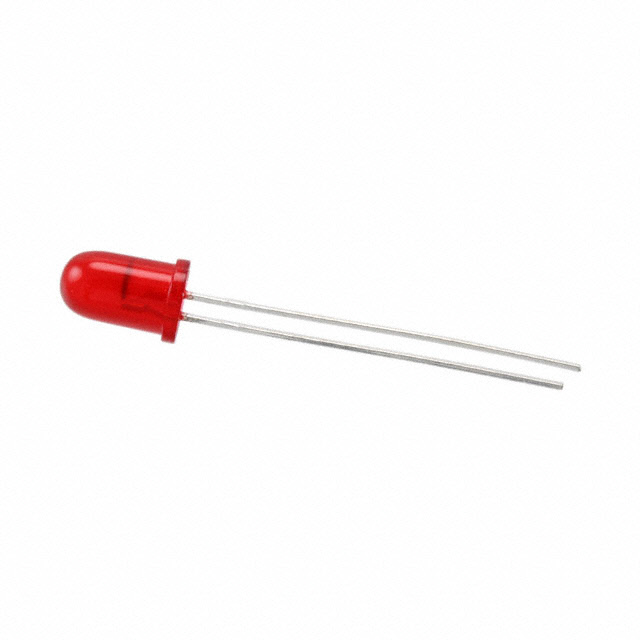

Kingbright WP56BSRD/B	5 mm	640 nm	60 °	655 nm	Standard	Flashing	Through Hole	5 mm	T-1 3/4	Red	T-1 3/4 (5mm)	Diffused	70 mcd	Red	Round with Domed Top	Radial	8.6 mm
Kingbright WP56BGD	5 mm	568 nm	60 °	565 nm	Standard	Flashing	Through Hole	5 mm	T-1 3/4	Green	T-1 3/4 BLINKING	Diffused	30 mcd	Green	Round with Domed Top	Radial	8.6 mm
