R2E180 Series

Catalog

MOTORIZED IMPELLER

Part	Current Rating (Amps)	Material - Blade	Termination	Bearing Type	Ingress Protection	Features	Operating Temperature [Max]	Operating Temperature [Min]	RPM	Approval Agency	Width [y]	Fan Type	Size / Dimension	Size / Dimension [diameter]	Power (Watts)	Voltage - Rated	Width [x]	Operating Temperature	Operating Temperature	Voltage Range [Max]	Voltage Range [Min]	Operating Temperature [Min]	Operating Temperature [Max]

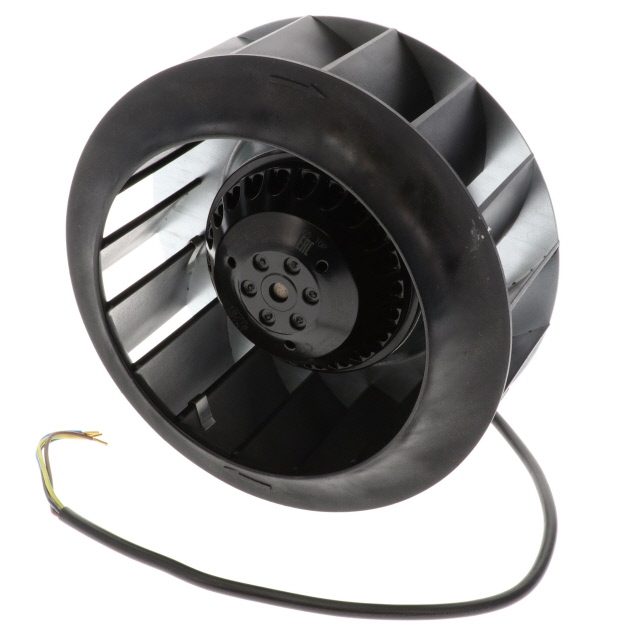

ebm-papst Inc. R2E180-AS77-05	0.45 A	Polyamide (PA) Nylon	4 Wire Leads with Splice Terminals	Ball	IP44	Capacitor Thermal Overload Protector (TOP)	35 °C	-25 °C	2300 RPM	CE EAC	84.5 mm	Motorized Impellers	Round	180 mm	100 W	230 VAC

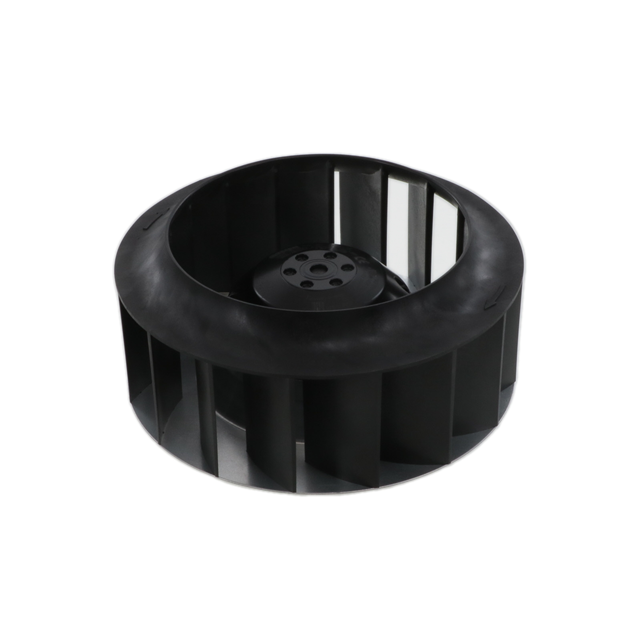

ebm-papst Inc. R2E180-AT06-15	0.61 A	Nylon 6 Polyamide (PA6)	4 Wire Leads with Splice Terminals	Ball	IP44	Capacitor Thermal Overload Protector (TOP)			2800 RPM	CE CSA UL		Motorized Impellers	Round	180 mm	145 W	230 VAC	95 mm	60 °C	60 °C
ebm-papst Inc. R2E180-AT38-10	360 mA	Polyamide (PA) Nylon	3 Wire Leads with Splice Terminals	Ball	IP44	Capacitor	40 °C	-25 °C	2400 RPM	CE EAC	84.5 mm	Motorized Impellers	Round	180 mm		240 VAC				240 VAC	220 VAC	-25 °C	40 °C
ebm-papst Inc. R2E180-AU01-10	0.38 A	Steel	3 Wire Leads with QC Receptacles	Ball		Capacitor Thermal Overload Protector (TOP)			2400 RPM			Motorized Impellers	Round	180 mm		230 VAC	158 mm	100 °C	212 °F

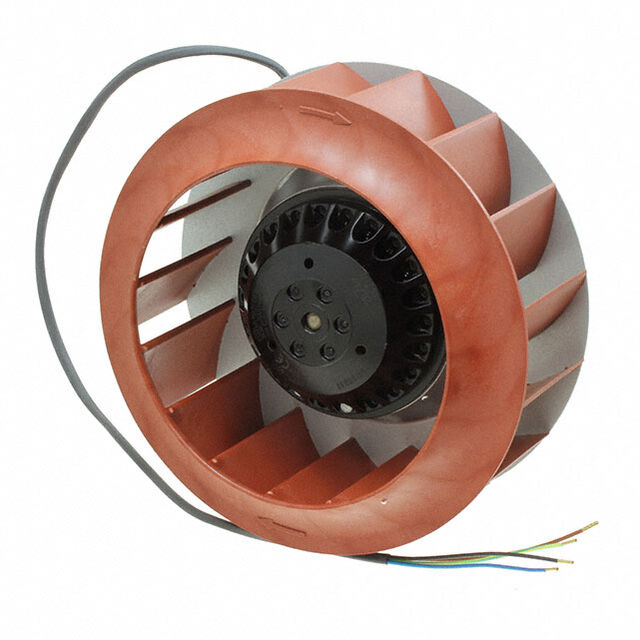

ebm-papst Inc. R2E180-AS77-40	0.47 A	Polyamide (PA66) Nylon 6/6	4 Wire Leads with Splice Terminals	Ball	IP44	Capacitor Thermal Overload Protector (TOP)			2300 RPM	CE CSA UL	84.5 mm	Motorized Impellers	Round	180 mm	100 W	230 VAC		55 °C	131 °F
ebm-papst Inc. R2E180-AH05-34				Ball		Capacitor						Motorized Impellers
