M13190 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

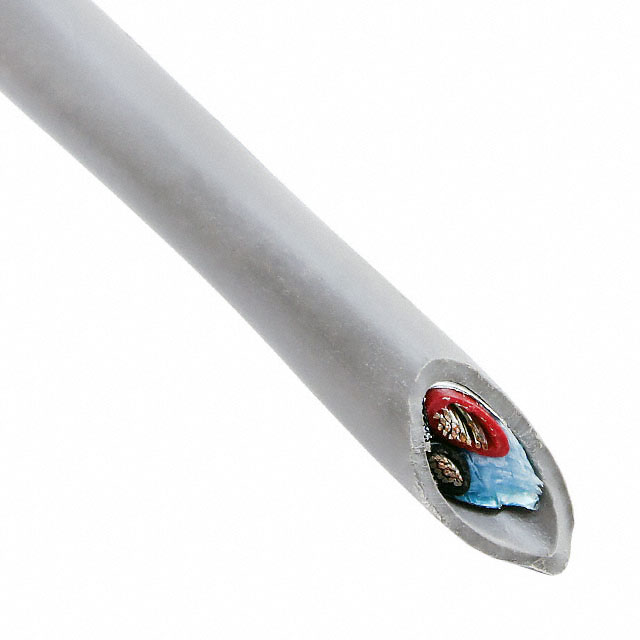

CABLE 2CON 24AWG SLATE SHLD 500'
| Part | Shield Material | Shield Coverage | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Cable Type | Voltage | Jacket (Insulation) Material | Number of Conductors | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Ratings | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Length | Length | Conductor Insulation | Jacket Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | 7 | 32 AWG | Foil | Multi-Conductor | 300 VDC | Poly-Vinyl Chloride (PVC) | 2 | 24 AWG | 0.813 mm | 0.032 in | UL Style 2464 | Copper Tinned | 4.04 mm | 0.159 in | 80 °C | -20 ░C | 152.4 m | 500 ft | Poly-Vinyl Chloride (PVC) | Slate |
