2501-1 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

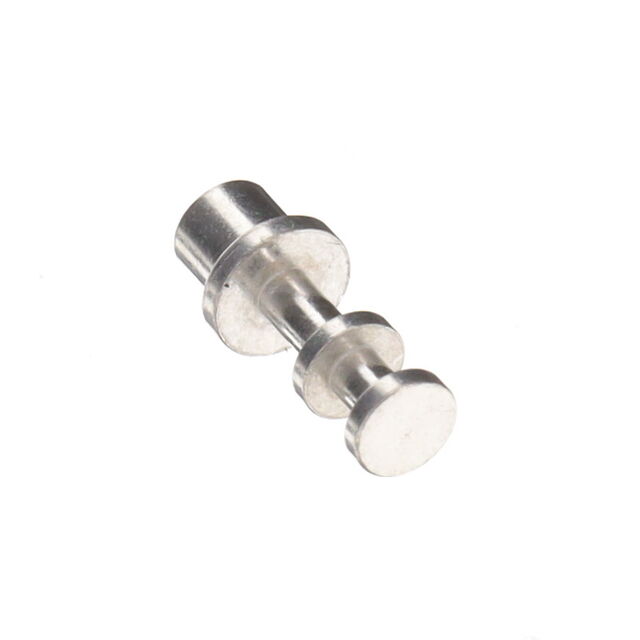

TERM TURRET SNG
| Part | Insulation | Staking Side ID [diameter] | Staking Side ID [diameter] | Termination | Length - Overall [x] | Length - Overall [x] | Length - Below Flange [x] | Length - Below Flange [x] | Length - Above Board [x] | Length - Above Board [x] | Staking Side OD [diameter] | Staking Side OD [diameter] | Terminal Type | Contact Finish | Mounting Type | Diameter - Turret Head [diameter] | Diameter - Turret Head [diameter] | Board Thickness | Board Thickness | Contact Material | Number of Turrets | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Contact Finish Thickness | Contact Finish Thickness | Flange Diameter | Flange Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Non-Insulated | 1.63 mm | 0.064 " | Swage | 0.297 in | 7.54 mm | 0.078 in | 1.98 mm | 0.219 " | 5.56 mm | 2.29 mm | 0.09 in | Single End | Tin | Through Hole | 2.36 mm | 0.093 in | 0.031 in | 0.79 mm | Brass Alloy | Double | 2.39 mm | 0.094 " | 200 Áin | 5.08 Ám | 3.18 mm | 0.125 in |
Mill-Max Manufacturing Corp. | Non-Insulated | 1.63 mm | 0.064 " | Swage | 0.297 in | 7.54 mm | 0.078 in | 1.98 mm | 0.219 " | 5.56 mm | 2.29 mm | 0.09 in | Single End | Silver | Through Hole | 2.36 mm | 0.093 in | 0.031 in | 0.79 mm | Brass Alloy | Double | 2.39 mm | 0.094 " | 300 µin | 7.62 µm | 3.18 mm | 0.125 in |
