G-1132 Series
Manufacturer: CW Industries
Beta
⌘K

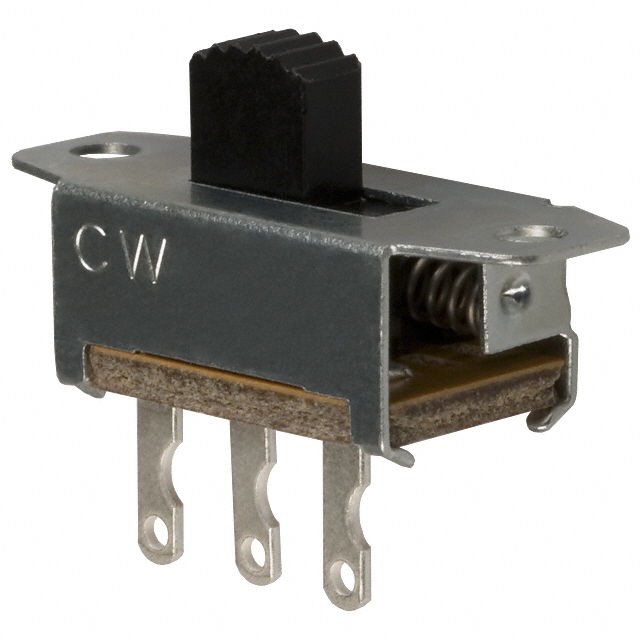

SWITCH SLIDE SPDT 11A 125V
| Part | Actuator Material | Mechanical Life | Electrical Life | Switch Travel | Circuit | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Actuator Type | Contact Timing | Contact Finish | Switch Function | Termination Style | Current Rating (Amps) | Voltage Rating - DC | Voltage Rating - AC | Actuator Length [x] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CW Industries | Nylon 6/6 Polyamide (PA66) | 10000 Steps | 6000 Cycles | 4.01 mm | SPDT | -10 °C | 104 °C | Copper | Standard | Not Specified | Silver | On-Mom | Solder Lug | 11 A 500 mA | 125 VDC | 125 V | 8.74 mm | Panel Mount |
 CW Industries | Nylon 6/6 Polyamide (PA66) | 10000 Steps | 6000 Cycles | 4.01 mm | SPDT | -10 °C | 104 °C | Copper | Standard | Not Specified | Silver | On-Mom | Solder Lug | 11 A 500 mA | 125 VDC | 125 V | 8.74 mm | Panel Mount |
