XDMR06 Series
Manufacturer: SunLED
Beta
⌘K

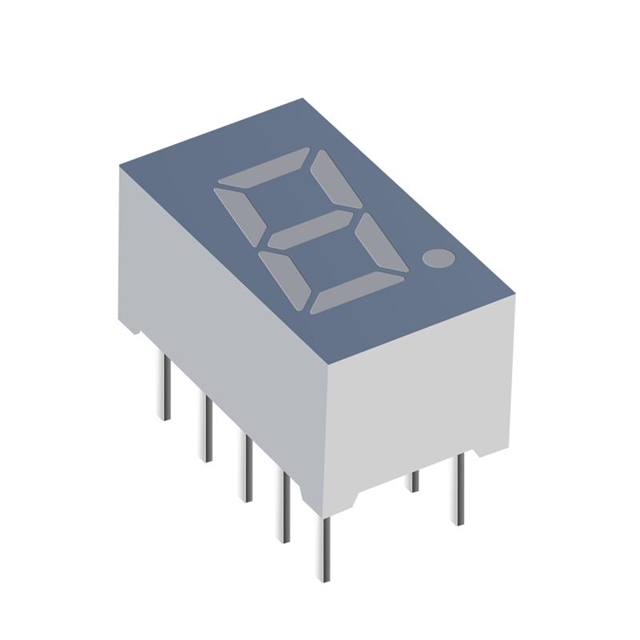

DISPLAY 7SEG 0.32" SGL RED 10DIP
| Part | Wavelength - Peak | Number of Characters | Common Pin | Millicandela Rating | Power Dissipation (Max) [Max] | Current - Test | Package / Case | Package / Case | Package / Case | Digit/Alpha Size | Digit/Alpha Size | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Voltage - Forward (Vf) (Typ) | Display Type | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SunLED | 655 nm | 1 | Common Anode | 8 mcd | 75 mw | 10 mA | 10-DIP | 0.2 in | 5.08 mm | 0.32 in | 8 mm | 6.5 mm | 13 mm | 0.512 " | 0.256 in | 0.295 in | 7.5 mm | 1.8 V | 7-Segment | Red |
SunLED | 655 nm | 1 | Common Cathode | 8 mcd | 75 mw | 10 mA | 10-DIP | 0.2 in | 5.08 mm | 0.32 in | 8 mm | 6.5 mm | 13 mm | 0.512 " | 0.256 in | 0.295 in | 7.5 mm | 1.8 V | 7-Segment | Red |
