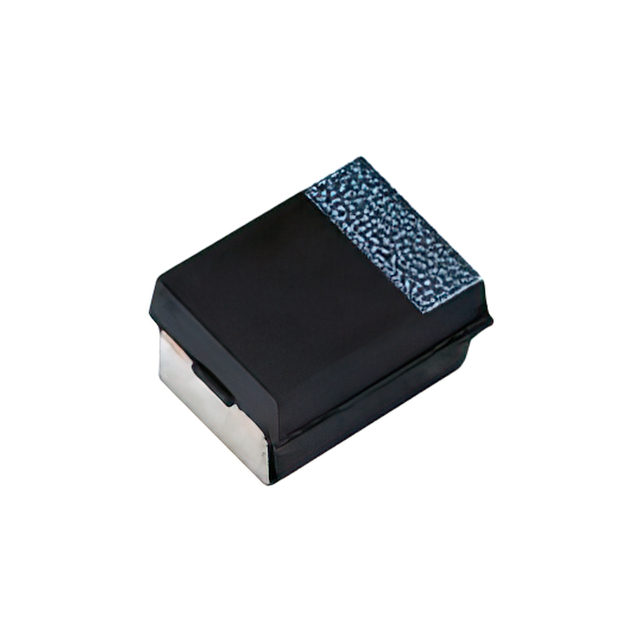

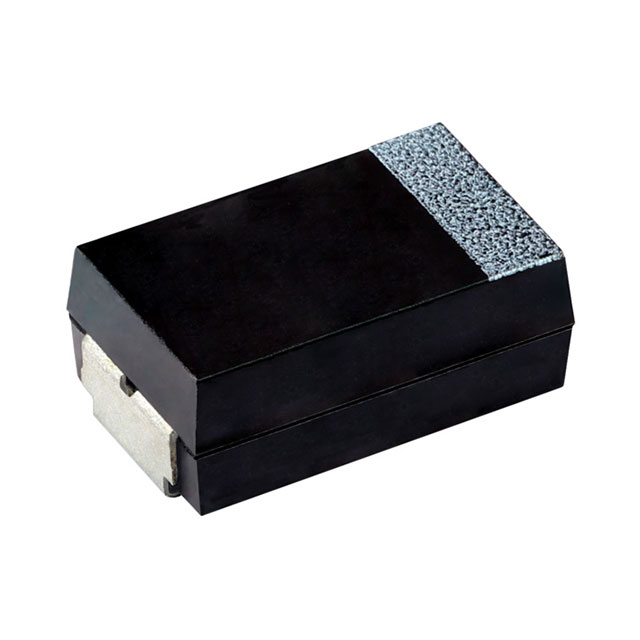

T51D Series
Manufacturer: Vishay General Semiconductor - Diodes Division
Beta
⌘K
CAP TANT POLY 100UF 10V 2917
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Package / Case | Features | Capacitance | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Type | Voltage - Rated | Manufacturer Size Code | Ratings | Tolerance | Mounting Type | ESR (Equivalent Series Resistance) | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Lifetime @ Temp. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vishay General Semiconductor - Diodes Division | -55 °C | 125 °C | 7343 Metric | 2917 | Automotive | 100 µF | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | Molded | 10 V | D | AEC-Q200 | 20 % | Surface Mount | 40 mOhm | 0.122 " | 3.1 mm | 2000 Hrs |
 Vishay General Semiconductor - Diodes Division | -55 °C | 125 °C | 7343 Metric | 2917 | Automotive | 33 ÁF | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | Molded | 20 V | D | AEC-Q200 | 20 % | Surface Mount | 100 mOhm | 0.122 " | 3.1 mm | 2000 Hrs |
Vishay General Semiconductor - Diodes Division | -55 °C | 125 °C | 7343 Metric | 2917 | Automotive | 33 ÁF | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | Molded | 25 VDC | D | AEC-Q200 | 20 % | Surface Mount | 100 mOhm | 0.122 " | 3.1 mm | 2000 Hrs |
Vishay General Semiconductor - Diodes Division | -55 °C | 125 °C | 7343 Metric | 2917 | Automotive | 22 µF | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | Molded | 25 VDC | D | AEC-Q200 | 20 % | Surface Mount | 100 mOhm | 0.122 " | 3.1 mm | 2000 Hrs |
Vishay General Semiconductor - Diodes Division | -55 °C | 125 °C | 7343 Metric | 2917 | Automotive | 10 µF | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | Molded | 25 VDC | D | AEC-Q200 | 20 % | Surface Mount | 120 mOhm | 0.122 " | 3.1 mm | 2000 Hrs |
Vishay General Semiconductor - Diodes Division | -55 °C | 125 °C | 7343 Metric | 2917 | Automotive | 15 µF | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | Molded | 25 VDC | D | AEC-Q200 | 20 % | Surface Mount | 100 mOhm | 0.122 " | 3.1 mm | 2000 Hrs |
