RG1-1A Series

Catalog

SWITCH ROCKER SPST 16A 12V

Part	Mechanical Life (Cycles)	Electrical Life (Cycles)	Panel Cutout Shape	Panel Cutout Width	Panel Cutout Length	Color	Illumination Type	Actuator Type	Current Rating	Quick Connect Size (0.250")	Termination Style	Voltage Rating - DC	Circuit	Color - Actuator/Cap	Approval Agency	Actuator Marking	Mounting Type	Illumination Voltage (Nominal)	Switch Function	Operating Temperature (Max)	Operating Temperature (Min)	Voltage Rating - AC
Switch Components RG1-1A-DC-1-AL	10000 Cycles	6000 Cycles	Rectangular	13.8 mm	27.6 mm	Amber	LED	Concave (Curved) Illuminated	16 A	0.25 in	Quick Connect	12 V	SPST	Amber	CSA cURus ENEC	No Marking	Panel Mount Snap-In	12 V	On-Off	85 °C	-25 °C

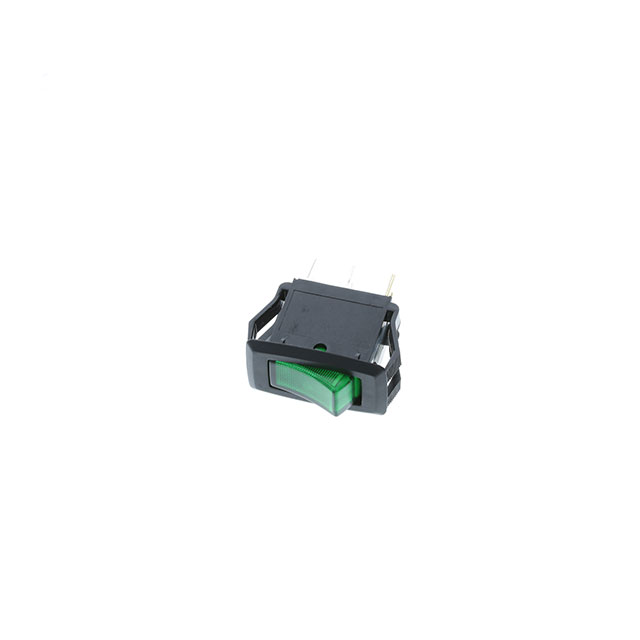

Switch Components RG1-1A-DC-1-GL	10000 Cycles	6000 Cycles	Rectangular	13.8 mm	27.6 mm	Green	LED	Concave (Curved) Illuminated	16 A	0.25 in	Quick Connect	12 V	SPST	Green	CSA cURus ENEC	No Marking	Panel Mount Snap-In	12 V	On-Off	85 °C	-25 °C

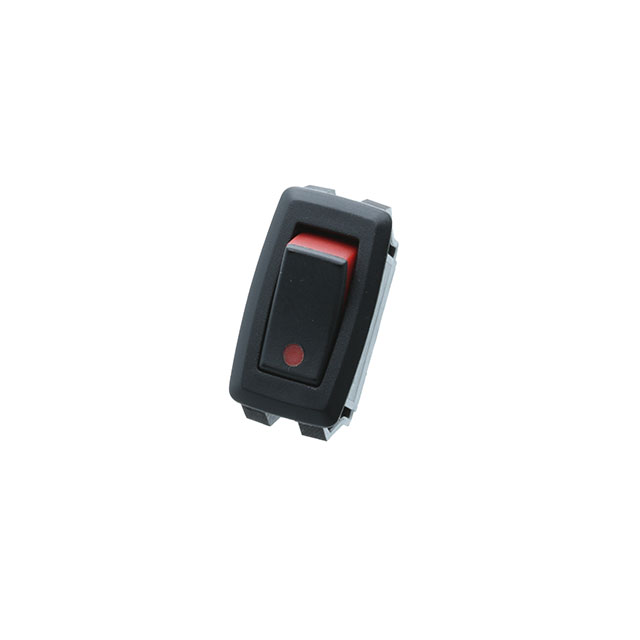

Switch Components RG1-1A-DC-1-R-3	10000 Cycles	6000 Cycles	Rectangular	13.8 mm	27.6 mm			Concave (Curved)	16 A 20 A	0.25 in	Quick Connect	12 V	SPST	Black Red	CSA cURus ENEC	Dot	Panel Mount Snap-In		On-Off	85 °C	-25 °C	125 V

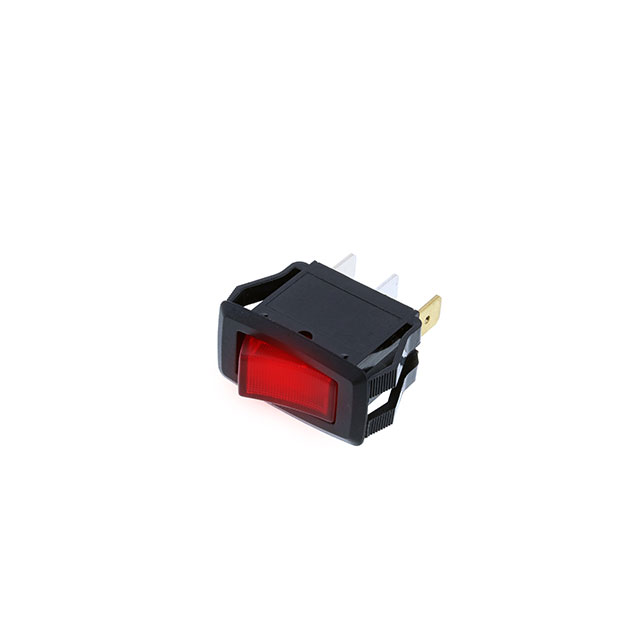

Switch Components RG1-1A-DC-1-RL	10000 Cycles	6000 Cycles	Rectangular	13.8 mm	27.6 mm	Red	LED	Concave (Curved) Illuminated	16 A	0.25 in	Quick Connect	12 V	SPST	Red	CSA cURus ENEC	No Marking	Panel Mount Snap-In	12 V	On-Off	85 °C	-25 °C
