5173C Series

Catalog

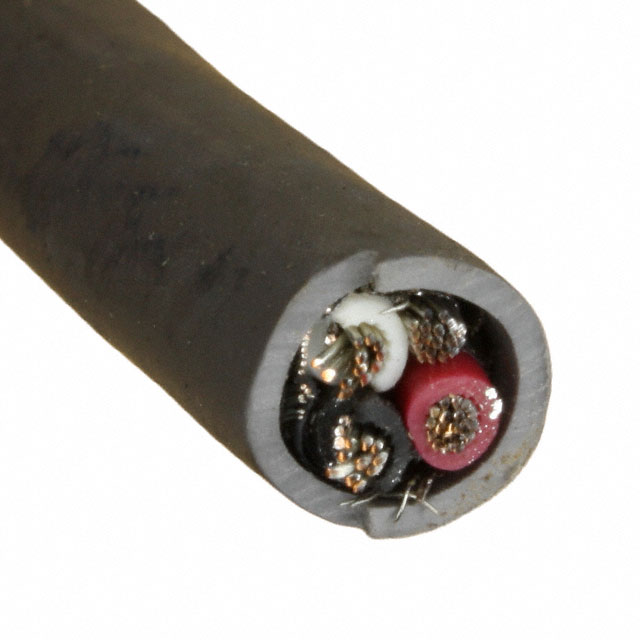

MULTI-CONDUCTOR CABLES 16 AWG 3 CONDUCTOR 300V SUPRASHIELD PVC PVC, PER FOOT FT SPOOL - BLACK

Part	Shield Material	Shield Coverage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Usage	Operating Temperature [Min]	Operating Temperature [Max]	Features	Cable Type	Voltage	Length	Length	Conductor Material	Shield Type	Number of Conductors	Wire Gauge	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [diameter]	Ratings	Jacket (Insulation) Material	Length [x]	Length [x]
ALPHA WIRE 5173C BK199	Copper Tinned Suprashield®	70 % 100 %	0.813 mm	0.032 in	Black	Communication Control	-35 °C	105 ░C	Biological Compatibility Drain Wire Rip Cord	Multi-Conductor	300 VDC	304.8 m	1000 ft	Copper Tinned	Braid Foil	3	16 AWG	Poly-Vinyl Chloride (PVC)	7.42 mm	0.292 in	19	0.0117 in	ISO 10993 UL Style 2464	Poly-Vinyl Chloride (PVC)
ALPHA WIRE 5173C SL002	Copper Tinned Suprashield®	70 % 100 %	0.813 mm	0.032 in	Slate	Communication Control	-35 °C	105 ░C	Biological Compatibility Drain Wire Rip Cord	Multi-Conductor	300 VDC	152.4 m	500 ft	Copper Tinned	Braid Foil	3	16 AWG	Poly-Vinyl Chloride (PVC)	7.42 mm	0.292 in	19	0.0117 in	ISO 10993 UL Style 2464	Poly-Vinyl Chloride (PVC)
ALPHA WIRE 5173C SL001	Copper Tinned Suprashield®	70 % 100 %	0.813 mm	0.032 in	Slate	Communication Control	-35 °C	105 ░C	Biological Compatibility Drain Wire Rip Cord	Multi-Conductor	300 VDC	304.8 m	1000 ft	Copper Tinned	Braid Foil	3	16 AWG	Poly-Vinyl Chloride (PVC)	7.42 mm	0.292 in	19	0.0117 in	ISO 10993 UL Style 2464	Poly-Vinyl Chloride (PVC)
ALPHA WIRE 5173C SL005	Copper Tinned Suprashield®	70 % 100 %	0.813 mm	0.032 in	Slate	Communication Control	-35 °C	105 ░C	Biological Compatibility Drain Wire Rip Cord	Multi-Conductor	300 VDC			Copper Tinned	Braid Foil	3	16 AWG	Poly-Vinyl Chloride (PVC)	7.42 mm	0.292 in	19	0.0117 in	ISO 10993 UL Style 2464	Poly-Vinyl Chloride (PVC)	100 ft	30.5 m
