LM2904LV-Q1 Series

Dual, 36-V, 1.2-MHz, 2-mV offset voltage operational amplifier with -40°C to 125°C operation

Catalog

Dual, 36-V, 1.2-MHz, 2-mV offset voltage operational amplifier with -40°C to 125°C operation

Part	Amplifier Type	Voltage - Input Offset	Mounting Type	Voltage - Supply Span (Min) [Min]	Current - Supply	Gain Bandwidth Product	Number of Circuits	Current - Input Bias	Voltage - Supply Span (Max) [Max]	Slew Rate	Package / Case	Current - Output / Channel [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Output Type	Package / Case [custom]	Package / Case	Current - Output / Channel	Grade	Qualification	Package / Case [y]	Package / Case [x]	Package / Case [custom]
Texas Instruments LM2904LVIDDFR	General Purpose	1 mV	Surface Mount	2.7 V	90 µA	1 MHz	2	15 pA	5.5 V	1.5 V/µs	SOT-23-8 Thin TSOT-23-8	40 mA	-40 °C	125 °C	TSOT-23-8

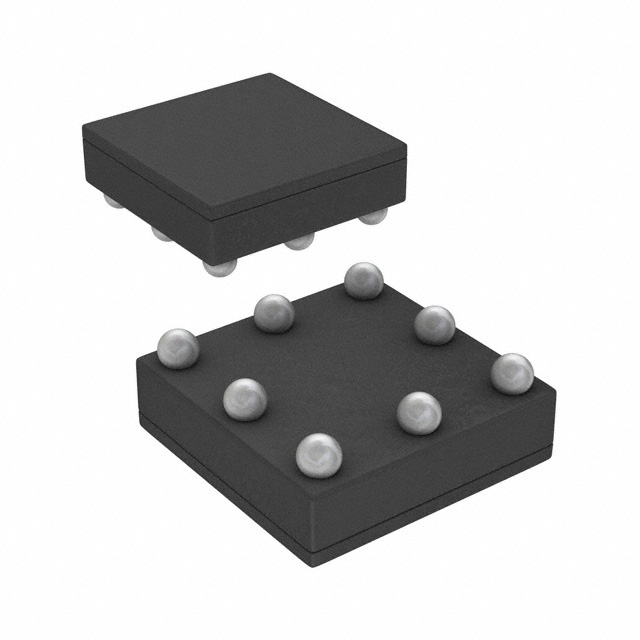

Texas Instruments LM2904ITP/NOPB	General Purpose	2 mV	Surface Mount	3 V	1 mA	1 MHz	2	45 nA	32 V			40 mA	-40 °C	85 °C	8-DSBGA
Texas Instruments LM2904DGKRG4	General Purpose	3 mV	Surface Mount	3 V	500 ÁA	700 kHz	2	20 nA	26 V	0.3 V/Ás	8-MSOP 8-TSSOP		-40 °C	125 °C		Push-Pull	0.118 in	3 mm	30 mA
Texas Instruments LM2904AVQDRQ1	General Purpose	1 mV	Surface Mount	3 V	500 ÁA	700 kHz	2	20 nA	26 V	0.3 V/Ás	8-SOIC		-40 °C	125 °C	8-SOIC				30 mA	Automotive	AEC-Q100	3.9 mm	0.154 in
Texas Instruments LM2904QDRG4	General Purpose	3 mV	Surface Mount	3 V	500 ÁA	700 kHz	2	20 nA	26 V	0.3 V/Ás	8-SOIC	40 mA	-40 °C	125 °C	8-SOIC							3.9 mm	0.154 in
Texas Instruments LM2904VQPWRG4Q1	General Purpose	3 mV	Surface Mount	3 V	500 ÁA	700 kHz	2	20 nA	26 V	0.3 V/Ás	8-TSSOP		-40 °C	125 °C	8-TSSOP		0.173 "		30 mA	Automotive	AEC-Q100			4.4 mm
Texas Instruments LM2904QDRQ1	General Purpose	3 mV	Surface Mount	3 V	500 ÁA	700 kHz	2	20 nA	26 V	0.3 V/Ás	8-SOIC		-40 °C	125 °C	8-SOIC				30 mA	Automotive	AEC-Q100	3.9 mm	0.154 in
Texas Instruments LM2904VQPWRQ1	General Purpose	3 mV	Surface Mount	3 V	500 ÁA	700 kHz	2	20 nA	26 V	0.3 V/Ás	8-TSSOP		-40 °C	125 °C	8-TSSOP		0.173 "		30 mA	Automotive	AEC-Q100			4.4 mm
Texas Instruments LM2904PWRG4-JF	General Purpose	3 mV	Surface Mount	3 V	500 ÁA	700 kHz	2	20 nA	26 V	0.3 V/Ás	8-TSSOP	40 mA	-40 °C	125 °C	8-TSSOP		0.173 "							4.4 mm
Texas Instruments LM2904BQDRQ1	General Purpose	1 mV	Surface Mount	3 V		1.2 MHz	2	10 nA	36 V		8-SOIC		-40 °C	125 °C	8-SOIC				30 mA	Automotive	AEC-Q100	3.9 mm	0.154 in

Catalog

Dual, 36-V, 1.2-MHz, 2-mV offset voltage operational amplifier with -40°C to 125°C operation

Key Features

• Available in 8-bump DSBGA chip-sized package (see AN-1112,SNVA009)Internally frequency compensated for unity gainLarge DC voltage gain: 100 dBWide bandwidth (unity gain): 1 MHz (temperature compensated)Wide power supply range:Single supply: 3 V to 32 VOr dual supplies: ±1.5 V to ±16 VVery low supply current drain (500 µA) essentially independent of supply voltageLow input offset voltage: 2 mVInput common-mode voltage range includes groundDifferential input voltage range equal to the power supply voltageLarge output voltage swingUnique characteristics:In the Linear Mode the input common-mode voltage range includes ground and the output voltage can also swing to ground, even though operated from only a single power supply voltageThe unity gain cross frequency is temperature compensatedThe input bias current is also temperature compensatedAdvantages:Two internally compensated op ampsEliminates need for dual suppliesAllows direct sensing near GND and VOUTalso goes to GNDCompatible with all forms of logicPower drain suitable for battery operationAvailable in 8-bump DSBGA chip-sized package (see AN-1112,SNVA009)Internally frequency compensated for unity gainLarge DC voltage gain: 100 dBWide bandwidth (unity gain): 1 MHz (temperature compensated)Wide power supply range:Single supply: 3 V to 32 VOr dual supplies: ±1.5 V to ±16 VVery low supply current drain (500 µA) essentially independent of supply voltageLow input offset voltage: 2 mVInput common-mode voltage range includes groundDifferential input voltage range equal to the power supply voltageLarge output voltage swingUnique characteristics:In the Linear Mode the input common-mode voltage range includes ground and the output voltage can also swing to ground, even though operated from only a single power supply voltageThe unity gain cross frequency is temperature compensatedThe input bias current is also temperature compensatedAdvantages:Two internally compensated op ampsEliminates need for dual suppliesAllows direct sensing near GND and VOUTalso goes to GNDCompatible with all forms of logicPower drain suitable for battery operation

Description

The LM2904-Q1, LM2904B-Q1, and LM2904BA-Q1 are industry-standard operational amplifiers that have been qualified for automotive use in accordance to the AEC-Q100 specifications. The LM2904B-Q1 and LM2904BA-Q1 are the next-generation versions of the LM2904-Q1, which include two high-voltage (36 V) operational amplifiers (op amps). The LM2904B-Q1 and LM2904BA-Q1 provide outstanding value for cost-sensitive applications, with features including low offset (3 mV and 2 mV maximum, respectively), common-mode input range to ground, and high differential input voltage capability. The LM2904B-Q1 and LM2904BA-Q1 simplify circuit design with enhanced features such as unity-gain stability, lower offset voltage of 0.3 mV (typical), and lower quiescent current of 300 µA (typical). High ESD (2 kV, HBM) and integrated EMI and RF filters enable the LM2904B-Q1 and LM2904BA-Q1 devices to be used in the most rugged, environmentally challenging applications for the automotive marketplace. The LM2904-Q1, LM2904B-Q1, and LM2904BA-Q1 are industry-standard operational amplifiers that have been qualified for automotive use in accordance to the AEC-Q100 specifications. The LM2904B-Q1 and LM2904BA-Q1 are the next-generation versions of the LM2904-Q1, which include two high-voltage (36 V) operational amplifiers (op amps). The LM2904B-Q1 and LM2904BA-Q1 provide outstanding value for cost-sensitive applications, with features including low offset (3 mV and 2 mV maximum, respectively), common-mode input range to ground, and high differential input voltage capability. The LM2904B-Q1 and LM2904BA-Q1 simplify circuit design with enhanced features such as unity-gain stability, lower offset voltage of 0.3 mV (typical), and lower quiescent current of 300 µA (typical). High ESD (2 kV, HBM) and integrated EMI and RF filters enable the LM2904B-Q1 and LM2904BA-Q1 devices to be used in the most rugged, environmentally challenging applications for the automotive marketplace.
