WR9QH2100 Series

Catalog

AC/DC WALL MOUNT ADAPTER 19V 40W

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Input Connector	Input Type	Region Utilized	Voltage - Output	Standard Number	Efficiency	Power (Watts)	Applications	Current - Output (Max) [Max]	Operating Temperature [Max]	Form	Output Connector [x]	Output Connector [diameter]	Output Connector	Polarization	Voltage - Input [Max]	Voltage - Input [Min]	Approval Agency	Cord Length	Cord Length	No Load Power Consumption

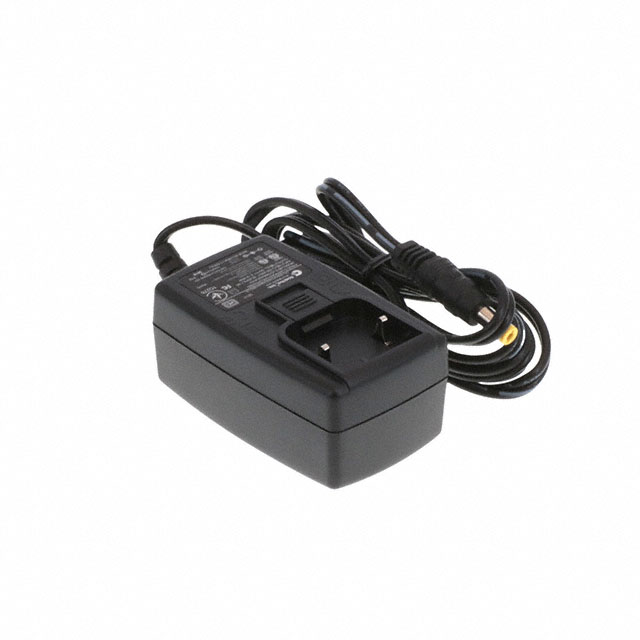

GlobTek, Inc. WR9QH2100CCPN(R6B)	1.71 "	2.91 in	74 mm	35.3 mm	1.39 in	43.5 mm	Multi-Blade (Sold Separately)	Multi-Blade (Sold Separately)	International	19 V	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	Level VI	40 W	Household Appliances ITE (Commercial) Medical	2.1 A	40 °C	Wall Mount	11 mm	2.1 mm 5.5 mm	Barrel Plug	Positive Center	264 VAC	90 VAC	BIS CB CCC CE cETLus EAC ETL FCC LPS Morocco PSE RCM UKCA UkrSEPRO UL VCCI	1.2 m	47.2 in	75 mW

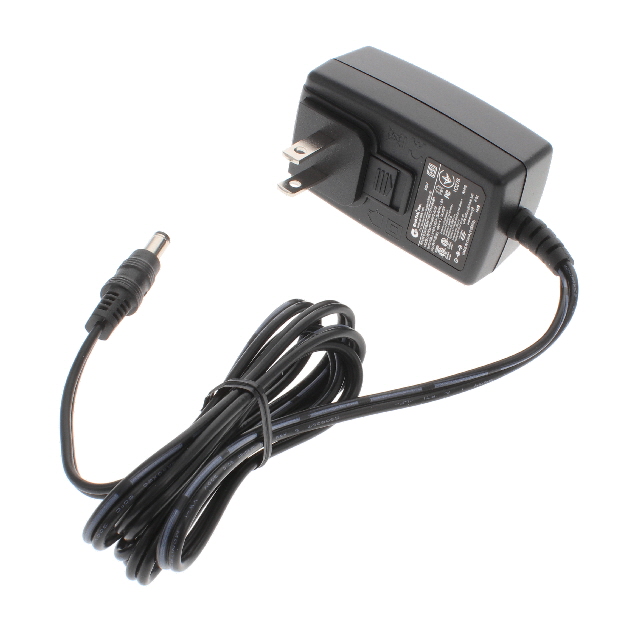

GlobTek, Inc. WR9QH2100LCPNNAR6B	1.71 "	2.91 in	74 mm	35.3 mm	1.39 in	43.5 mm	Multi-Blade	Multi-Blade (Single Blade Included)	International	19 V	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	Level VI	40 W	Household Appliances ITE (Commercial) Medical	2.1 A	40 °C	Wall Mount	11 mm	2.5 mm 5.5 mm	Barrel Plug	Positive Center	264 VAC	90 VAC	CB CCC CE cETLus EAC ETL FCC LPS PSE RCM UkrSEPRO UL VCCI	1.2 m	47.2 in	75 mW

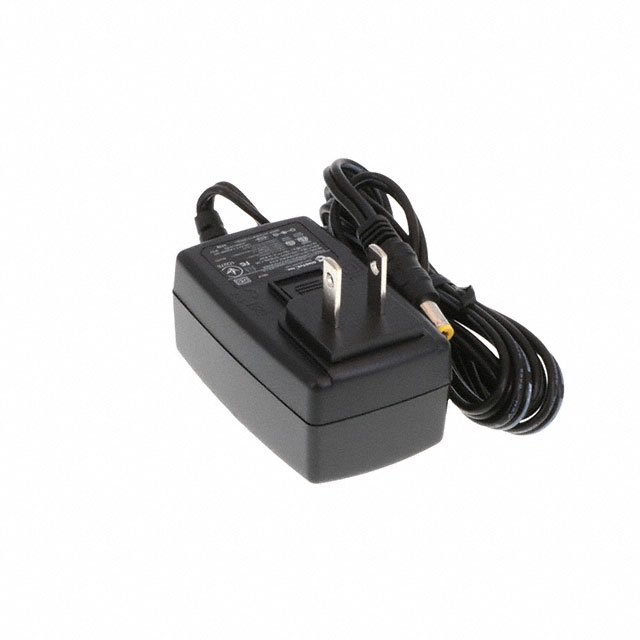

GlobTek, Inc. WR9QH2100CCPNNAR6B	1.71 "	2.91 in	74 mm	35.3 mm	1.39 in	43.5 mm	Multi-Blade (Sold Separately)	Multi-Blade (Sold Separately)	International	19 V	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	Level VI	40 W	Household Appliances ITE (Commercial) Medical	2.1 A	40 °C	Wall Mount	11 mm	2.1 mm 5.5 mm	Barrel Plug	Positive Center	264 VAC	90 VAC	CB CCC CE cETLus EAC ETL FCC LPS PSE RCM UkrSEPRO UL VCCI	1.2 m	47.2 in	75 mW

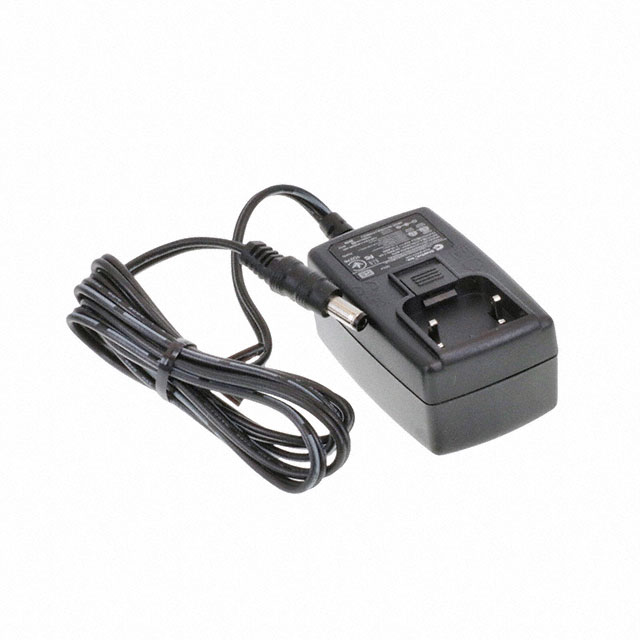

GlobTek, Inc. WR9QH2100LCPN(R6B)	1.71 "	2.91 in	74 mm	35.3 mm	1.39 in	43.5 mm	Multi-Blade (Sold Separately)	Multi-Blade (Sold Separately)	International	19 V	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	Level VI	40 W	Household Appliances ITE (Commercial) Medical	2.1 A	40 °C	Wall Mount	11 mm	2.5 mm 5.5 mm	Barrel Plug	Positive Center	264 VAC	90 VAC	CB CCC CE cETLus EAC ETL FCC LPS PSE RCM UkrSEPRO UL VCCI	1.2 m	47.2 in	75 mW
