280510 Series

Catalog

2X9P MODU II SHRD HDR, RT ANG, AU

Part	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Contact Type	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Shrouding	Number of Rows	Number of Positions	Number of Positions Loaded	Mounting Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Post	Style	Connector Type	Contact Length - Mating [custom]	Contact Length - Mating [custom]	Contact Shape	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height [z]	Insulation Height [z]	Termination	Material Flammability Rating	Voltage Rating	Current Rating (Amps)	Insulation Material	Insulation Color

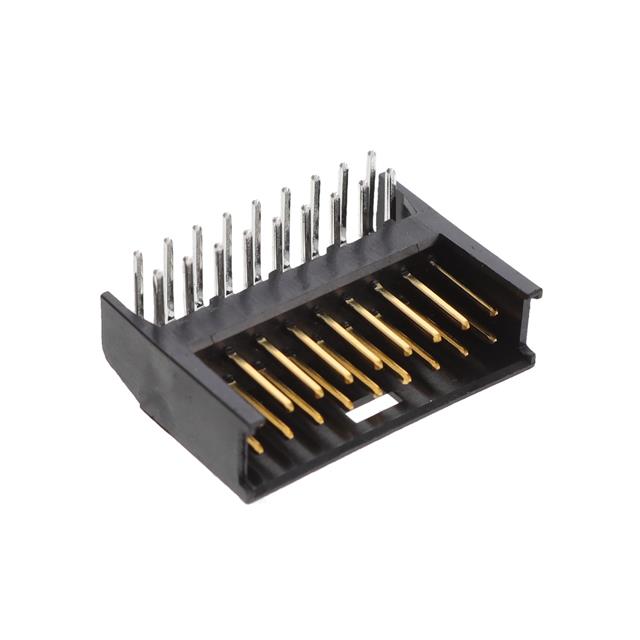

TE Connectivity Raychem Cable Protection 280510-2	3.5 mm	0.138 in	0.1 in	2.54 mm	Male Pin	Brass	2.5 µm	98.4 µin	Shrouded - 3 Wall	2	18	All	Through Hole Right Angle	2.54 mm	0.1 in	Tin	Board to Board Cable	Header	6.6 mm	0.26 in	Square	Gold	15 µin	0.38 µm	Detent Lock	-40 °C	80 C	7 mm	0.276 in	Solder	UL94 V-0	40 V	3 A	Thermoplastic	Black
